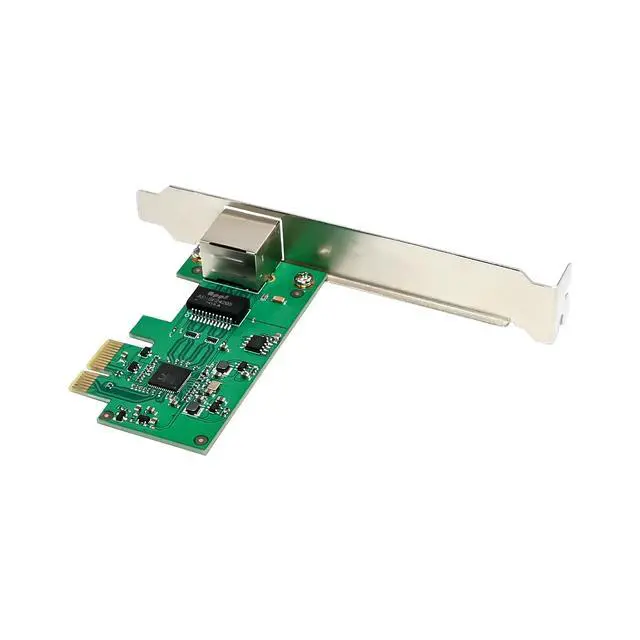

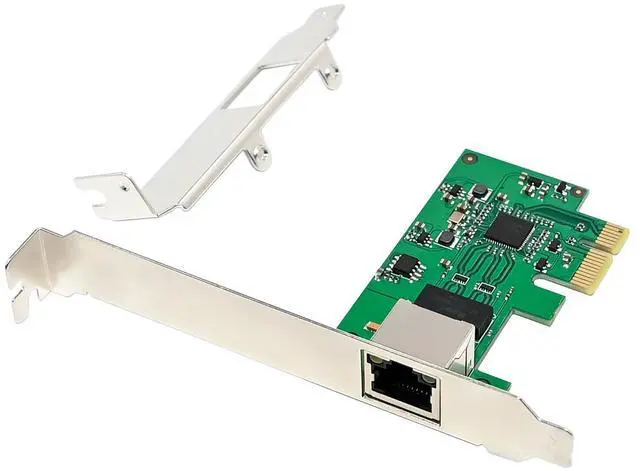

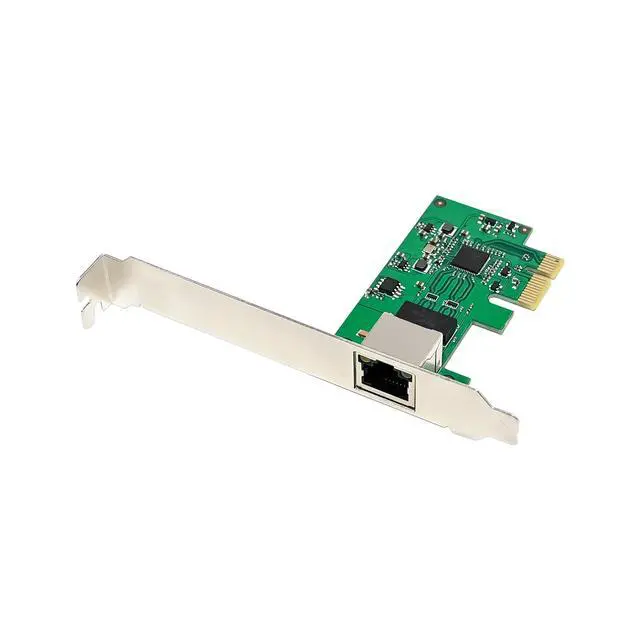

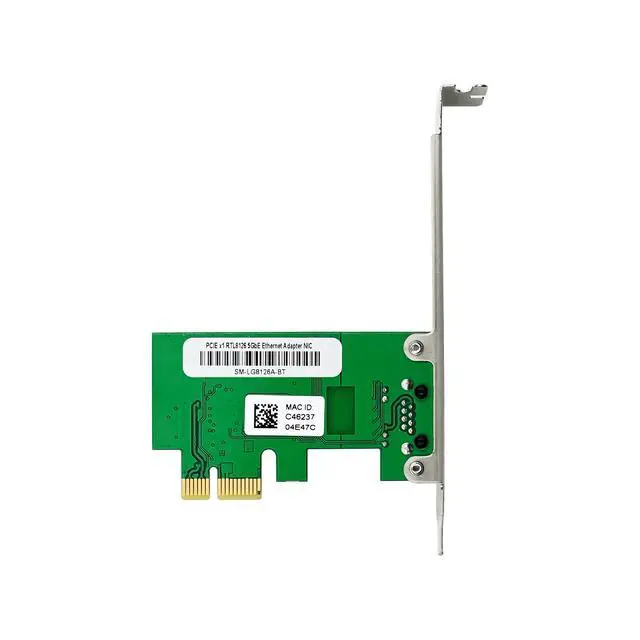

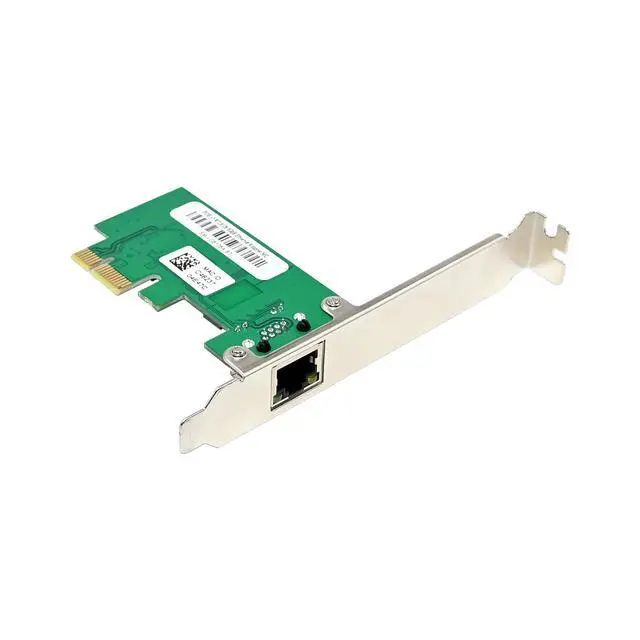

JVFYI PCI Express RTL8126 Single-Port 5GbE Ethernet NIC
Limited time offer, ends 01/09 By BRIGHTOR
- The RTL8126 5Gb Ethernet network adapter combines a five-speed IEEE 802.3 compatible Media Access Controller (MAC) with a five-speed Ethernet transceiver, PCI Express bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology, the RTL8126 offers high-speed transmission over CAT 5e UTP cable. Functions such as crossover detection and auto-correction, polarity correction, adaptive equalization, crosstalk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capability at high speeds.
- The RTL8126 supportsReal WOW/ WOL technology, allowing PCs to reduce power consumption by remaining in a low-power sleeping state until needed.
- The RTL8126 is suitable for multiple market segments and emerging applications, such as desktop, mobile, workstation, server, communications platforms, and embedded applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated 10M BASE-Te and 100/1000M/2.5G/5G Base-T 802.3 compatible transceiver
Supports 5G/2.5G and 1G Lite mode
Auto-Negotiation with Extended Next Page capability(XNP)
Support PCI Express Specification Revision 2.1
Supports pair swap/polarity/skew correction
Crossover Detection& Auto-Correction
Supports 1-Lane 2.5/5Gbps PCI Express Bus
Supports hardware ECC(Error correction code)function
Supports hardware CRC(Cyclic Redundancy Check)function
Supports PCI MSI (Message Signaled Interrupt)and MSI-X
Transmit/Receive on-chip buffer support
Supports ECMA-393 ProxZzzy Standard for sleeping hosts
Wake-On-LAN and RealWow! Technology (remote wake-up)supports
Compatible with IEEE802.3,IEEE802.3u,IEEE802.3ab
Supports IEEE1588v1,IEEE1588v2,IEEE80.2AS time synchronization
Supports IEEE802.1Qav credit-based shaper algorithm
Supports IEEE802.1P Layer 2 Priority encoding
Supports IEEE802.1Q VLAN tagging
Supports IEEE802.1ad Double VLAN
Supports IEEE802.3az (Energy Efficient Ethernet)
Supports IEEE802.3bz(2.5GBase-T)
Supports full duplex flow control(IEEE802.3x)
Supports jumbo frame to 16K bytes
Supports Virtual Machine Queue(VMQ)
Supports quad core Receive Side Scaling(RSS)
Supports Protocol Offload (ARP&NS)
Drivers for Vista /Win7 / Sever2008/Win8/ Sever 2012 / Win10 /Win11 / Linux, DOS
Package content
1 x PCI Express RTL8126 5GbE network adapter
1 x Users Manual
1 x CD
1 x Low profile bracket
Accessories
System Requirements
Linux ,Win7/Win8/Server2008/Win8.1/Server2012/Win10/Win11
One available PCI Express x1/x4/x8/x16 slot
Hardware installation
1.Turn off the computer and unplug the power cord
2.Remove the computer cover and the adapter slot cover from the slot that matches your adapter
3.Insert the adapter edge connector into the slot and secure the bracket to the chassis
4.Replace the computer cover ,then plug in the power cord
5.Power on the computer
Install Drivers and software
Windows Operating Systems
1. Please insert the CD driver bound into your CD-ROM Drive.
2. Double-click to open the CD-ROM drive and find the driver corresponding to the system.
3.1 For Windows® Win7, Server 2008 R2(32/64 bit)
TypeRTL8126\Windows\Win7_Server2008 R2\Install_Win7_7127_10222019\setup.exe, Double click it.
3.2 For Windows® Win8, Win8.1 Server2012(32/64 bit)
TypeRTL8126\Windows\Win8_8.1_Server2012\Install_Win8_8.1_8073_10222019 \setup.exe, Double click it.
3.3 For Windows® Win10 (32/64 bit)
TypeRTL8126\Windows\Win10\Install_Win10_10036_10222019\setup.exe, Double click it.
3.4 For Windows® Win11 (32/64 bit)
Type RTL8126\Windows\Win11\Install_PCIE_Win11_11.4.1201.2021_01182022.exe
4. Follow the on-screen instructions to complete the installation.
