$79.99
Add to PC build list
Login to Make an Offer
Sold by Newegg
Shipped by Newegg

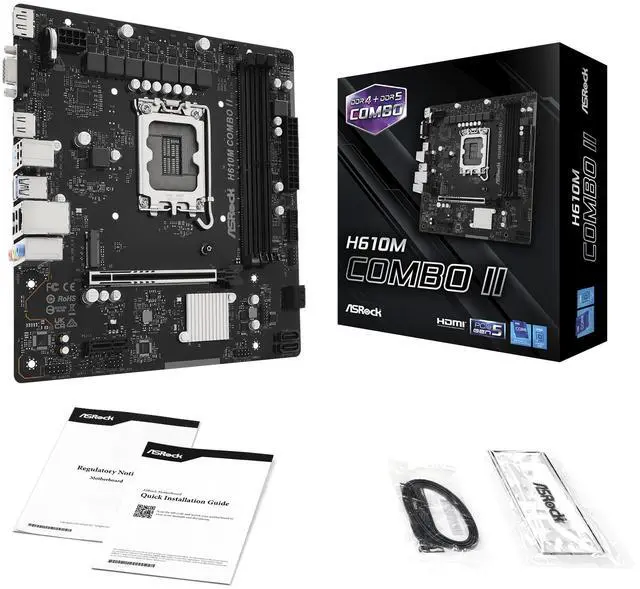

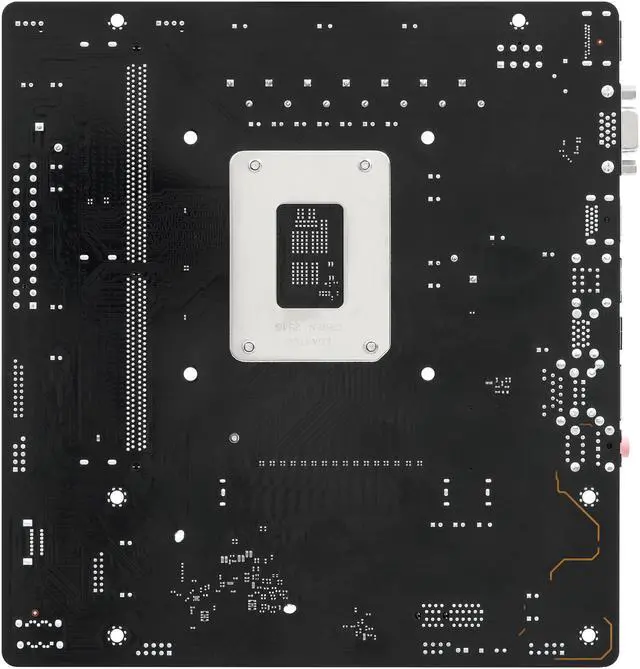

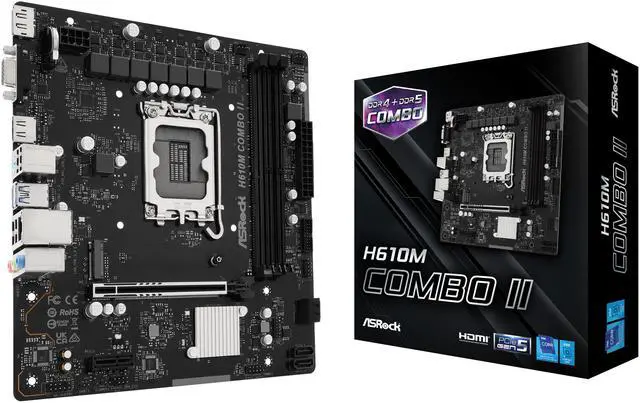

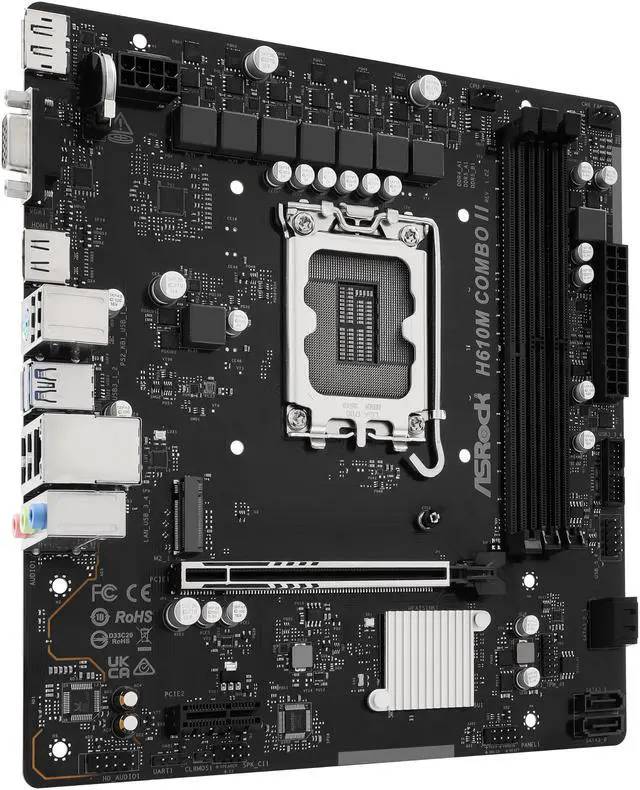

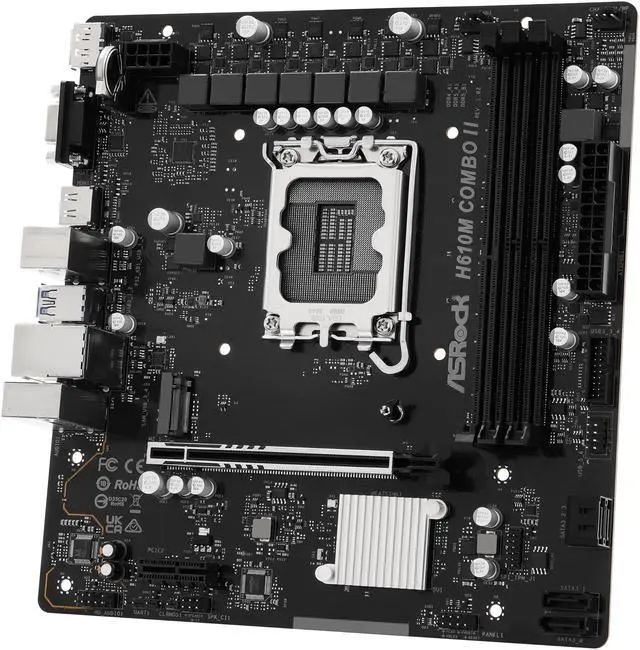

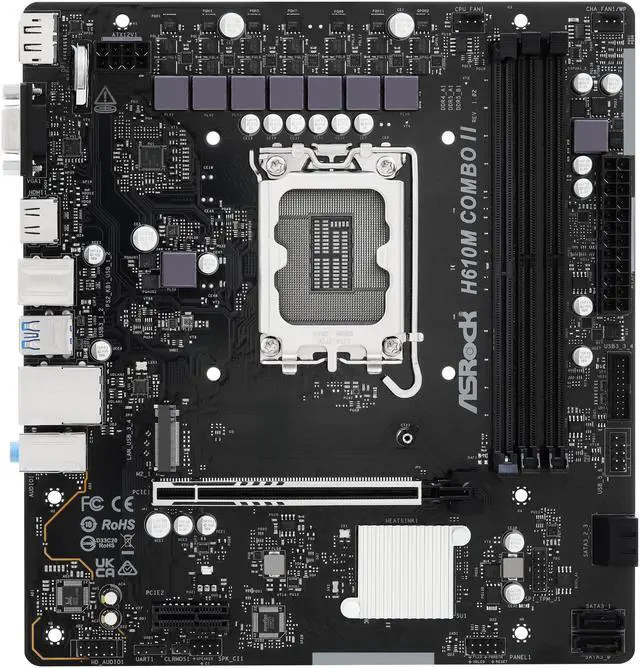

ASRock H610M COMBO II LGA 1700 Intel H610 Micro ATX Motherboard
- Intel H610
- Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700)
- Combo Memory Slots- features 2 x DDR5 and 1 x DDR4 Memory slots, allowing users to choose the memory type based on their needs (not compatible for mixed installation)
- Maximum memory capacity- up to 96GB with DDR5/ up to 32GB with DDR4
- 6+1+1 Power Phase Design
- 4x PCIe Gen 3- pushes data transfer speeds up to 32GB/s
- Asrock Auto Driver Installer- No disk drive or support CD needed, LAN driver pre installed
+
+
Learn more about the ASRock H610M COMBO II
| Brand | ASRock |
|---|---|
| Model | H610M COMBO II |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel H610 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Up to DDR5 5600 |
| Maximum Memory Supported | 96GB |
| Channel Supported | Dual Channel |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* |
|---|---|
| PCI Express x1 | Chipset: - 1 x PCIe 3.0 x1 Slot (PCIE2)* *Supports NVMe SSD as boot disks |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111H |
|---|---|
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)* 1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x Front Panel Audio Connector *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| BIOS Feature | 128Mb AMI UEFI Legal BIOS with GUI support |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | None RGB |
| Dimensions (W x L) | 8.66" x 8" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| First Listed on Newegg | July 20, 2026 |
|---|
