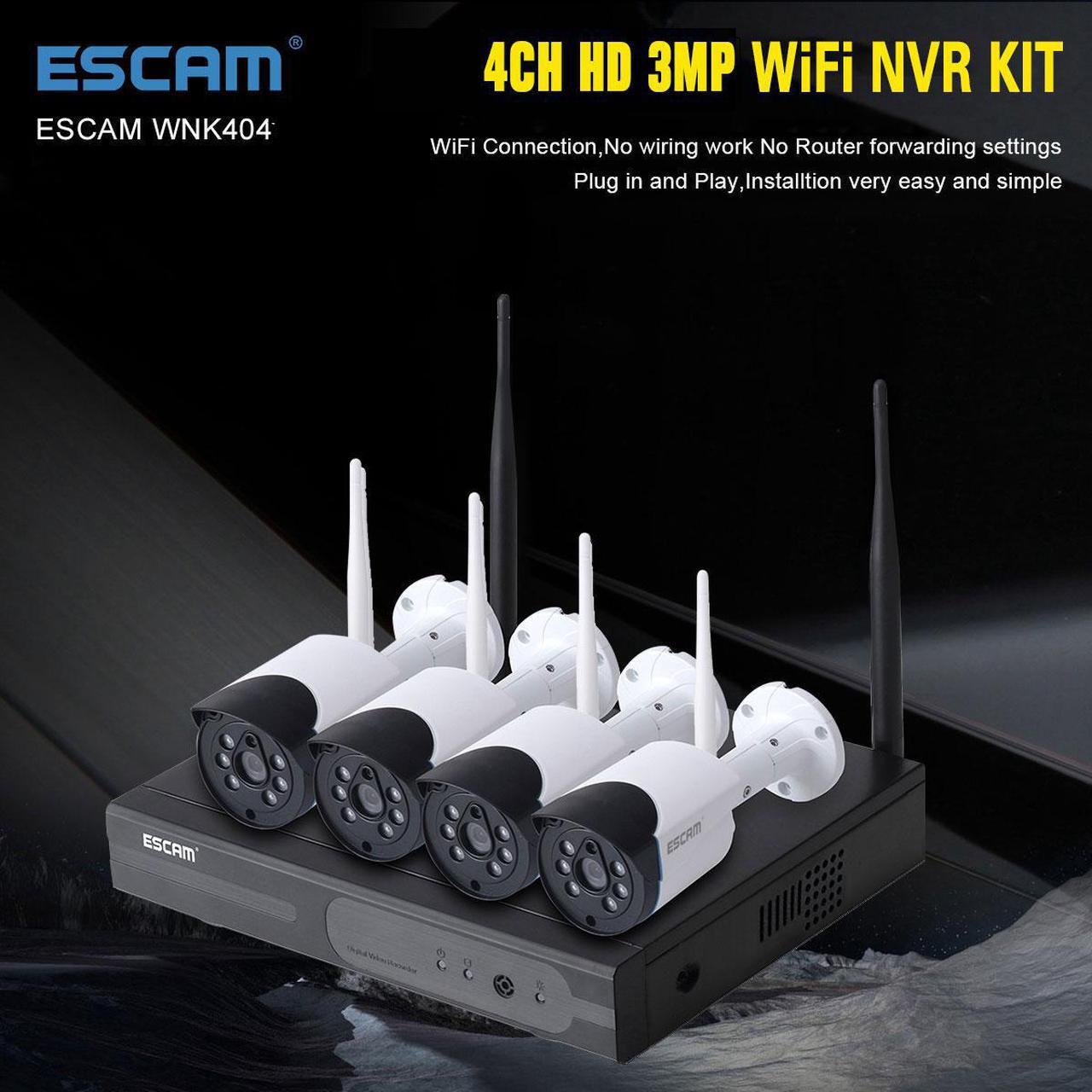

ESCAM WNK404 4CH Wifi NVR Security Surveillance System Kit,4pcs 3MP Wireless WiFi IP Camera, wifi 50m Automatch plug in and play, Home Outdoor cctv security camera system IR Night Vision,Alarm push

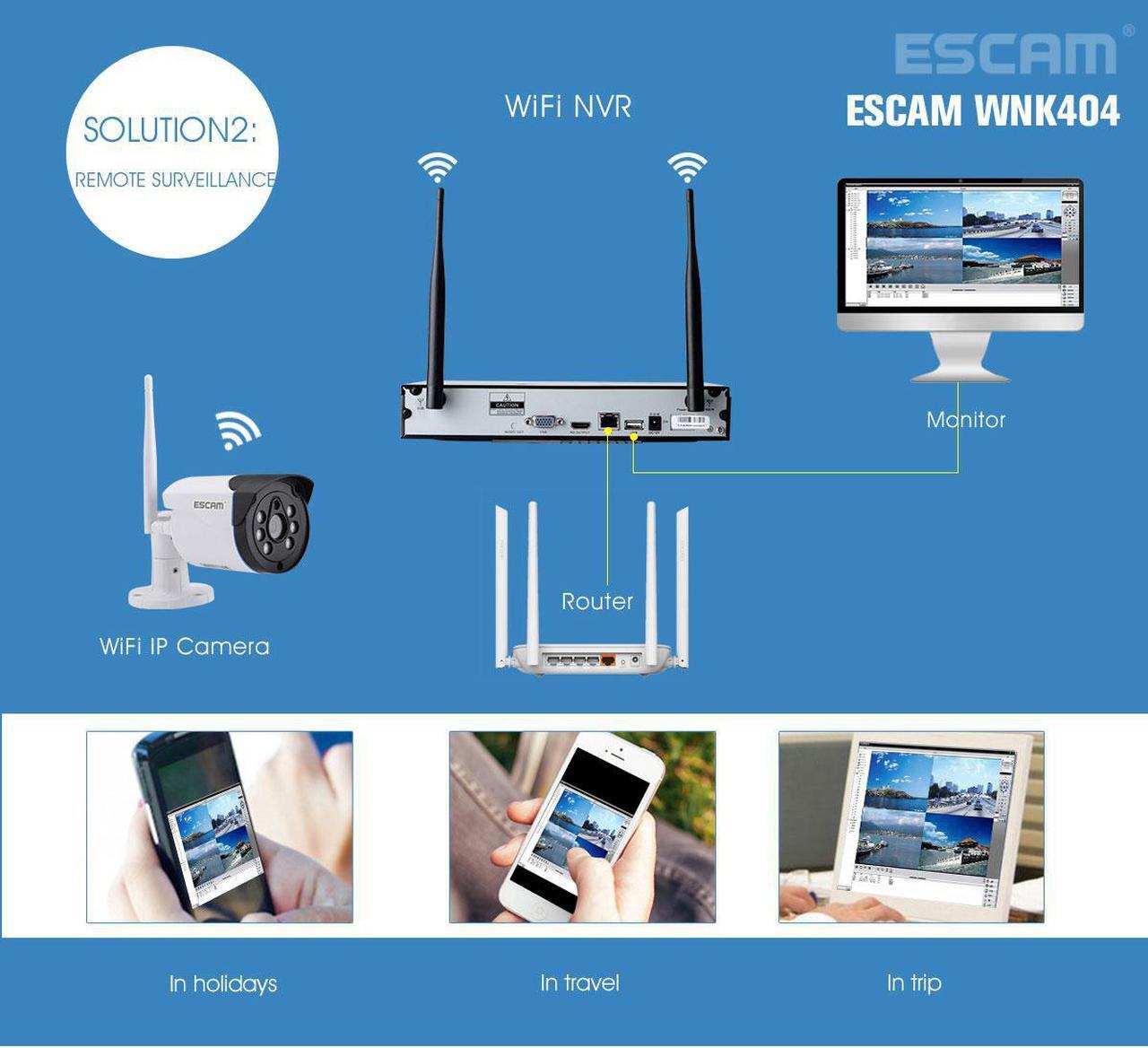

- ?LOCAL & REMOTE ACCESS?View your security camera system locally by connecting to a monitor or a HD TV, or via free EseeCloud App and Client on your mobile devices & computer or a web browser remotely,support Cloud Storage.
- ?EASY SETUP? A real plug and play NVR! Dual Antenna Wifi NVR, stable signal and strong anti-interference ability; No need for WIFI pairing, the image will be displayed when the box is powered on;
- ?High performance?4*WIFI IP Camera, 3.6mm lens, 3MP, NVR Embedded Linux OS Operating System,4 Channels Synchronous Playback.hard drive(HDD not include,up to 4TB) for backup storage.

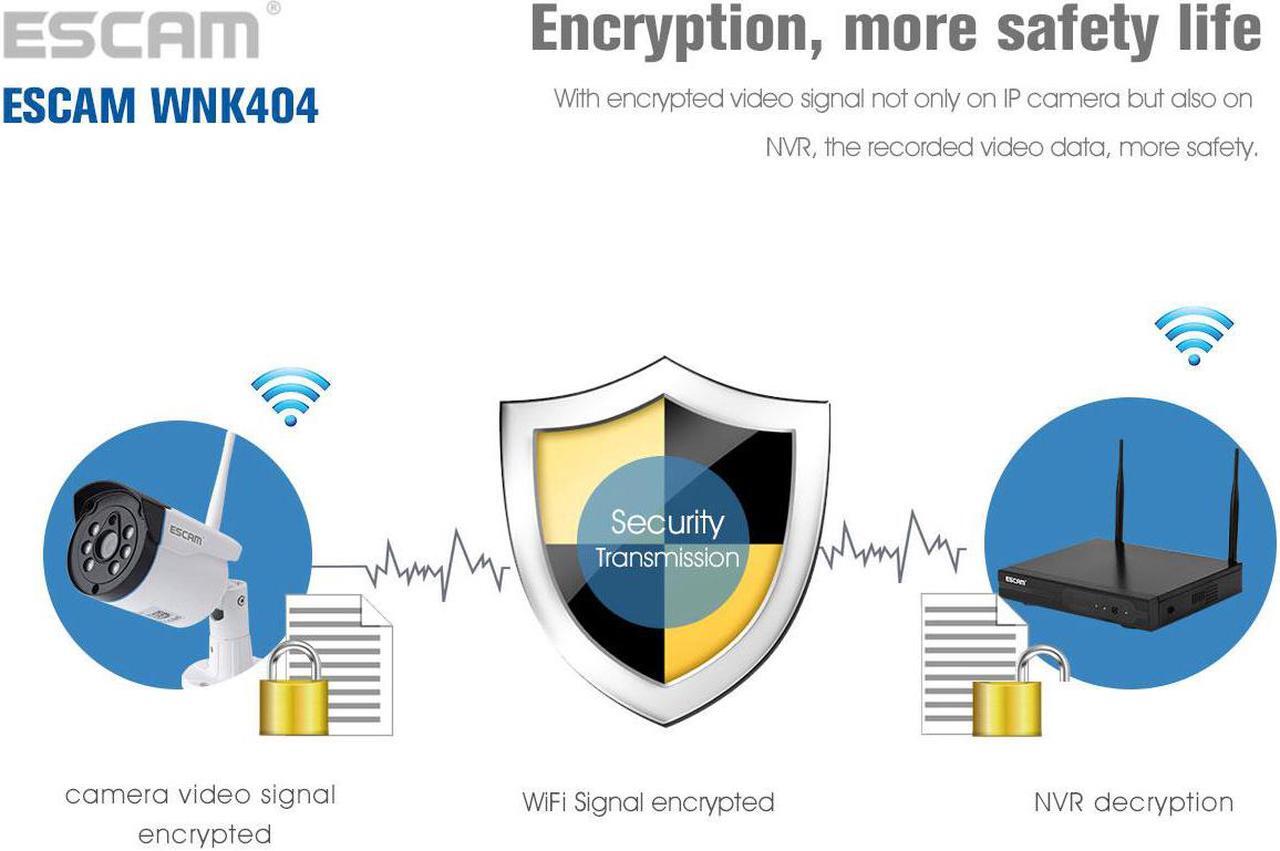

- ?Auto switch night vision mode?built in 6pcs IR leds,enables ultra clear night image quality.with encrypted video signal not only on IP
- ?VERSATILE FUNCTIONS?Support multiple alarm triggers (video loss/motion detection, etc.) and alarm output (voice/E-Mail/FTP, etc.);Support Android/Apple mobile phone (or tablet) remote (LAN and Internet) access and control.
+
+
Overview
Specs
Reviews
Model:ESCAM WNK404
Camera Parameter
Image Sensor: 1/4"CMOS
Pixels: 2304*1296(3MP)
Lens: 3.6mm
Angle of View: Horizontal: 70°, Vertical: 58°
Day/Night Mode: Auto Switch
Min. Illumination: 0.1Lux/F1.2(Color);0.01Lux/F1.2
(B/W)
IR Distance: 50 ft
Video
Compression: H.265
Resolution: Main Stream:2304*1296
Sub Stream:1920*1080,1280*720,640*480
Bit rate: 64 Kbps~4Mbps
Frame Rate: 15fps
Audio Interface: Not support
Network
Interface:
One 10M/100Mbps RJ45
WIFI: WIFI 802.11b/g/n,Only 2.4Ghz
Network Protocol: TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
OS Supported: PC: Windows; Smart Phone: iOS, Android
Power Supply: DC12V
Power Consumption:
<6W
Ingress Protection: IP66
NVR Parameter
Syetem
Operating System: Embedded Linux OS
A/V Input
Video Input: 4 xWIFI IP Camera
Audio Input: Not support
A/V Output
VGA Output: 1024*768,1280*1024,1440*900,1920*1080(1080P)
HDMI
Output: 1024*768,1280*1024,1440*900,1920*1080(1080P)
Audio Output: Not support
Playback Resolution: 1080P/720P
Synchronous Playback: 4 Channel
HDD
Interface Type: 1 SATA Interface
Maximum Capacity: 4TB
External Interface
USB
Connector: 1x USB 2.0
Network Interface: 10M/100M Ethernet RJ45 port
Network
Network Protocol: TCP/IP, RTSP, SMTP, NTP, DHCP, DNS, DDNS, P2P Network Protocol
Mobile Device: iPhone, Android Smartphones
Remote Software: App, PC
Client (Windows)
Power Supply: Input 110~260V, 12V 2A
Consumption: <6W (Without HDD)

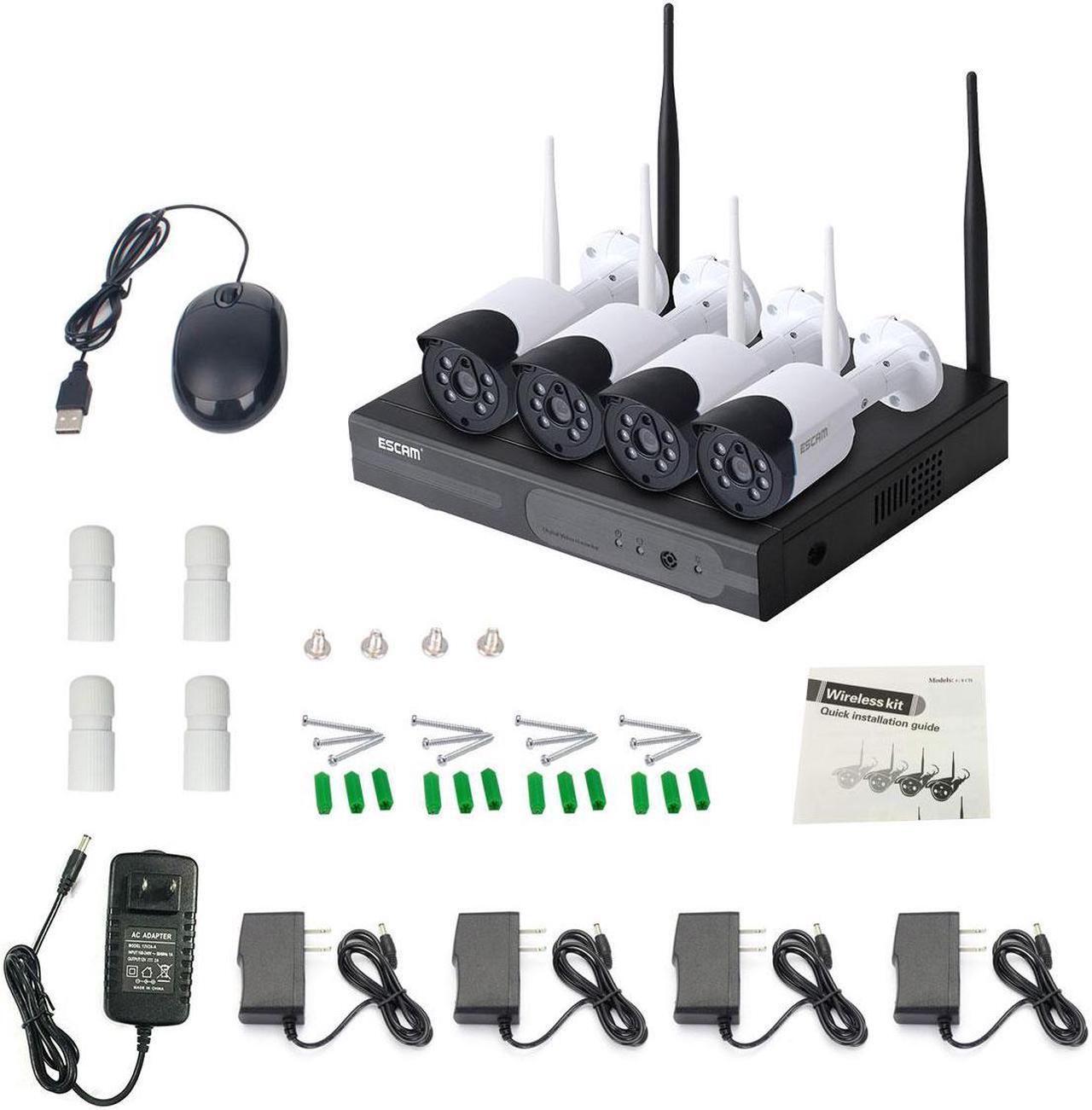

Package information
4CH WIFI NVR*1,WIFI IP Camera*4,NVR Power Adapter*1,Camera Power adapter *4 Guide*1,USB Mouse*1,Screws
Package*4,Waterproof Hat*4,1m Network Cable*1
