Outstanding H.265+ Tech
H.265+ does better in maximizing the data compression ratio, lessening bandwidth without losing the image quality than H.264.

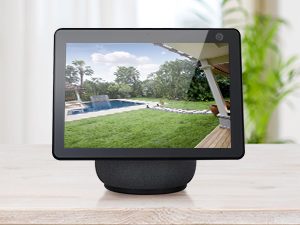

Works with Alexa
Once connected to Alexa, your audio commands take the place of your finger tapping when your hands are occupied. (Alexa & H.265+ can't run at a time.)
No Monthly Fee in Charge
ANNKE Vision App is downloaded for free and there's no hidden or monthly fee be charged during usage.
Automatical Overwrite Setting
When the HDD is full, the newest data will automatically overwrite the oldest ones. Nothing to worry about but save vital footage before overwriting.
| Decoding Format | H.264+/H.264/H.265/H.265+ |
|---|---|
| IP Video Input | 8CH PoE |
| Video Output | HDMI up to 4K (3840 × 2160), VGA up to 1080p(1920 × 1080) |
| Audio Input/Output | 1/1 RCA |
| Incoming/outgoing Bandwidth | 80/80 Mbps |
| Max Recording Resolution | Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
| Max Playback Resolution | Up to 12MP(4096 X 3072)@30fps(Frame rate depends on IP camera) |
| Max Playback Channel | 8CH |
| Max Playback Capacity | 1-ch@12 MP(4096 X 3072) (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) |

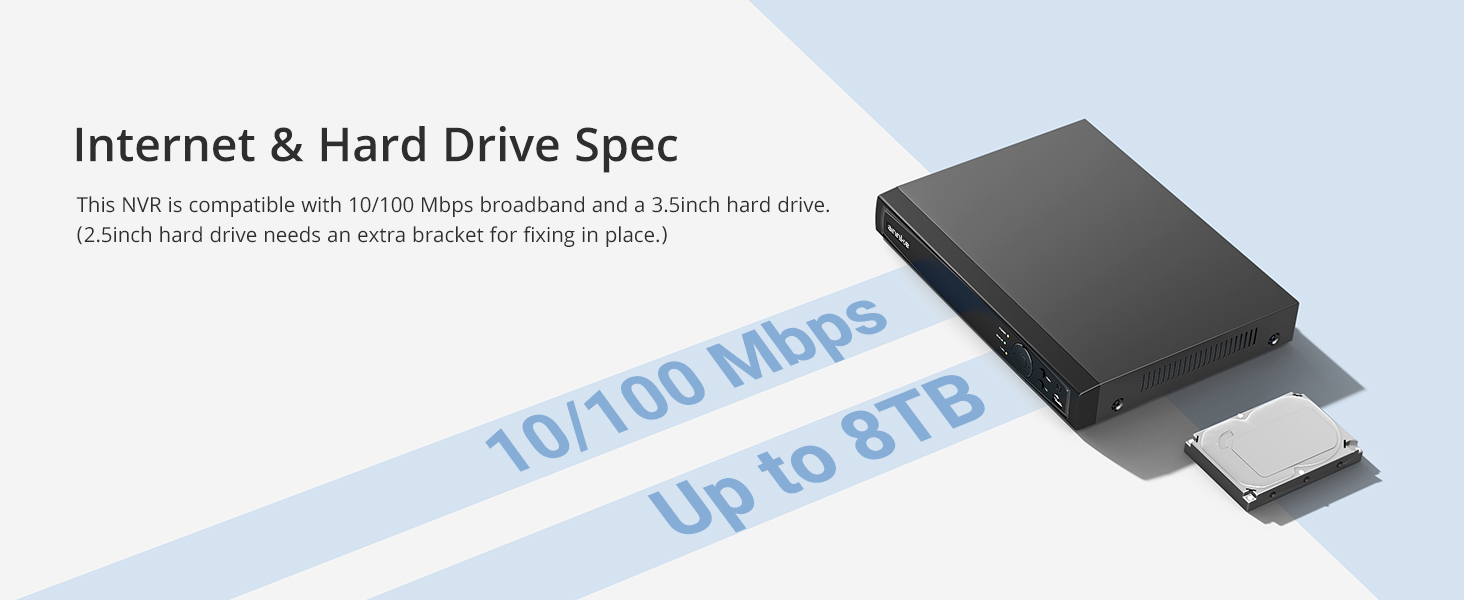

| HDD | 1 SATA Interface |
| HDD Capacity | Up to 8 TB Capacity |
| Network Interface | 1, RJ-45 10/100Mbps self-adaptive Ethernet interface |
| PoE | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at |
| USB interface | USB 2.0*2 |
| Deep learning | 8-ch Human and vehicle targets detection(Need IP camera support) |
| Deep learning | 4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP) |
| Smart Event | "Line crossing detection, intrusion detection, region entrance detection, region exiting detection(Need IP camera support)" |
| Operating Power | DC 48 V |
| Power Consumption | PoE: Max 25.5 W for Single Port |
| Working Temperature | 14 °F ~ 131 °F/-10 °C ~+55 °C |
| Weight (Without Hard Disk) | 2.2 lbs/1 kg |
