Quick View
Avaya AL7000MT1-E6 Expansion ModuleType: Expansion moduleSpecifications: Form Factor: Plug-in module
Ports: 10Gb Ethernet x 8
Connectivity Technology: Wired
Data Link Protocol: 10 GigE
Interfaces: 8 x 10GBase-T - RJ-45Model #: AL7000MT1-E6
Quick View
CISCO AIR-ANT2524DW-R Dual-band Dipole Antenna for Cisco Aironet APs - WhiteType: AntennaColor: BlackSpecifications: Color: White
Antenna type: Dual-band dipole
Operating frequency range: 2400 to 2500 MHz; 5150 to 5850 MHz
Nominal input impedance: 50 Ohms
VSWR: Less than 2:1
Peak Gain @ 2.4. GHz: 2 dBi
Peak Gain @ 5 GHz: 4 dBi
Elevation plane 3dB beamwidth @2.4 GHz: 63 degrees
Elevation plane 3dB beamwidth @ 5 GHz: 39 degrees
Connector type: RP-TNC plug
Antenna length: 6.63"
Weight: 1.3 oz.
Environment: Indoor, officeModel #: AIR-ANT2524DW-R
Quick View

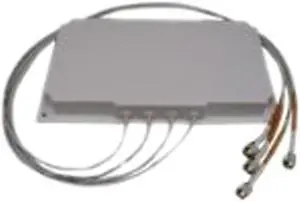

Open Box CISCO AIR-ANT2566P4W-R= Aironet 2.4-GHz/5-GHz MIMO 4-Element Patch AntennaType: AntennaColor: BlackSpecifications: Antenna type: 4-element dual-band MIMO
Operating frequency range:
2400-2484 MHz
5150-5850 MHz
VSWR: 2:1 or less
Gain: 6 dBi in both bands
Polarization: Linear, vertical
Azimuth Plane 3-dB Beamwidth:
2.4 GHz band: 105 degree
5 GHz band: 125 degree
Elevation Plane 3-dB Beamwidth:
2.4 GHz band: 70 degree
5 GHz band: 60 degree
Length: 6.3 in. (16 cm)
Width: 11 in. (27.9 cm)
Depth: 1.2 in. (3.05 cm)
Weight: 1.4 lbs.
Cable length and type: 3 ft. (91.4 cm) plenum rated
Connector: RP-TNC
Environment: Indoor/outdoorModel #: AIR-ANT2566P4W-R=
