Features: - Two video stream groups for dual display, each group only supports one to use simultaneously.
- Compatible with TBT4/3 and other USB-C Alt Mode ports on Mac or Windows computer.
- Supports mirror and extend modes.
- Boasts excellent heat dissipation capabilities and occupies minimal space, making it convenient to carry around.
Package Contents: 1x USB 3.0 to DP/HDMI Dual Display Adapter(cable length: 90mm/3.5in), 1x CD-Shaped Card for Driver Download Links, 1x Quick Start Guide
Specifications: Chipset ID: MCT - Trigger 1+
Memory: 16MB SDRAM
USB Pass-Through: No
General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Supported Resolutions: Standard (1600 x 1200, 1400 x 1050, 1280 x 1024, 1280 x 960, 1152 x 864, 1024 x 768, 800 x 600) / Widescreen (1680 x 1050, 1440 x 900, 1280 x 800, 1280 x 768, 1152 x 864, 800 x 600)
Connector A: 1 x USB Type-A (4 pin) USB 2.0 Male Input
OS Compatibility: Windows 10 (32/64) / Windows 8 / 8.1 (32/64) / Windows 7(32/64) / Windows Vista (32/64) / Windows XP (32/64)
System and Cable Requirements: One available USB 2.0 port
Specifications: Adapter Style: Adapter
Audio: Yes
Cabling: HDMI
Chipset ID: MS9282
Converter Type: Format Converter
Output Signal: HDMI
Connector A:
1 x VGA (15 pin; High Density D-Sub) Male
1 x USB A (4 pin) Male
Connector B:
1 x HDMI (19 pin) Female
Wide Screen Supported: Yes
Color: Black
Enclosure Type: Plastic
Humidity: 40%-85%RH
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -10°C to 70°C (14°F to 158°F)
OS Compatibility:
Windows 8/8.1 (32/64)
Windows 7 (32/64)
Windows Vista (32/64)
Windows XP (32/64)
Maximum Analog Resolutions: 1920x1080
Maximum Digital Resolutions: 1920x1080
Supported Resolutions:
1920x1080 (1080p)
1680x1050 (WSXGA+)
1600x1200
1600x900
1440x900
1400x1050 (SXGA+)
1366x768
1360x768
1280x1024
1280x960
1280x800
1280x768 (WXGA)
1280x720p (720p)
1280x600
1152...
Specifications: Maximum Resolution: 3840 x 2160
Host Interface: USB 3.0
DisplayPort: Yes
Number of DisplayPort Outputs: 1
System Requirements: Operating System(s):
Windows 8/8.1 (32/64bit)
Windows 7 (32/64bit)
Windows Vista (32/64)
Windows XP (32/64)
Windows 2000 (Aero 3D interface supported)
Specifications: Requirements:
For PC Users
Windows XP, Windows Vista, Windows 7, Windows 8/8.1, 10
Available USB 2.0 port
Chrome Book
Linux, Unix and other USB supported systems*
*Additional drivers and support may be needed
For MAC Users
Mac 8.6 or greater. Requires OS X for USB 2.0 support
Available USB 2.0 port

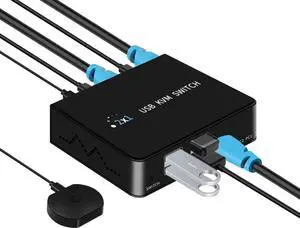

Specifications: Computer Connections
Direct 2
Port Selection Remote control selector button
LEDs
Port Status White
Switches
Port Selection: Remote Console Selector Button x 1
Operating Temperature: 32 ~ 104F (0 ~ 40C)
Storage Temperature: -4 ~ 140F (-20 ~ 60C)
Humidity: 0~80%
Housing
Case: Plastic
Cable Length: 54" (137.16cm)
Cable Type : USB 3.0 Type B to A x 4
Power Consumption: DC 5V, 1.43W
Operating System Support: Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Mac OS X 10.3+, Chrome OS™, Linux-based systems
Specifications: Chipset ID: STDP4320
Output Signal: DisplayPort
Ports: 3
Maximum Digital Resolutions: Up to 4K
Wide Screen Supported: Yes
OS Compatibility: Windows 10 (32/64), Windows 8/8.1 (32/64), Windows 7(32/64)
Center Tip Polarity: Positive
Input Current: 0.5 A
Input Voltage: 110V-240V AC
Output Current: 3A
Output Voltage: 5 DC
Plug Type: N
Power Consumption (In Watts): 15
Power Source: AC Adapter Included
Operating Temperature: 0 to 45 degree C (32 to 113 degree F)
Storage Temperature: -20 to 70 degree C (-4 to 158 degree F)
Enclosure Type: Plastic
Connector A: 1 x DisplayPort (20 pin) Latching Male
Specifications: Converter Type: MST Hub
Ports: 3
Audio: Yes
Connectors:
-Connector A: 1 x Mini-DisplayPort (20 pin) Male
-Connector B: 3 x DisplayPort (20 pin) Latching Female
Wide Screen Supported: Yes
OS Compatibility: Windows 8 (32/64), Windows 7(32/64)
Color: Black
Enclosure Type: Plastic
Maximum Digital Resolution: 2560 x 1600
