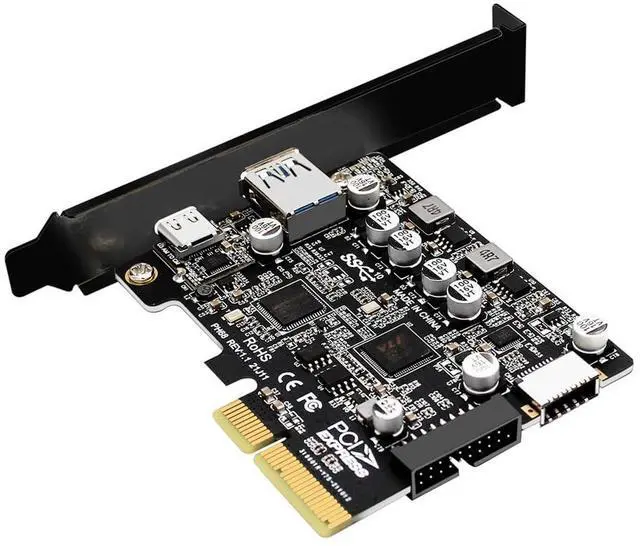

Vszerda Type-E USB 3.1 Front Socket 10Gbps & 19Pin/20Pin USB3.0 & USB-C Type-A to PCI-E Express Card Adapter ASM3142 VL822

"10Gbps Type-E USB 3.1 Front Socket & USB3.0 19Pin/20Pin & Type-A USB-C to PCI-E Express Card Adapter ASM3142 VL822

The connector only transfer the usb 3.1/3.0 data and power, can't connect usb-c video/audio/thunderbolt device.

Type C connector is the new design for USB 3.1,Reversible Design for Type C connector,Reversible plug orientation Cable direction,Support 5V/3A power charging.

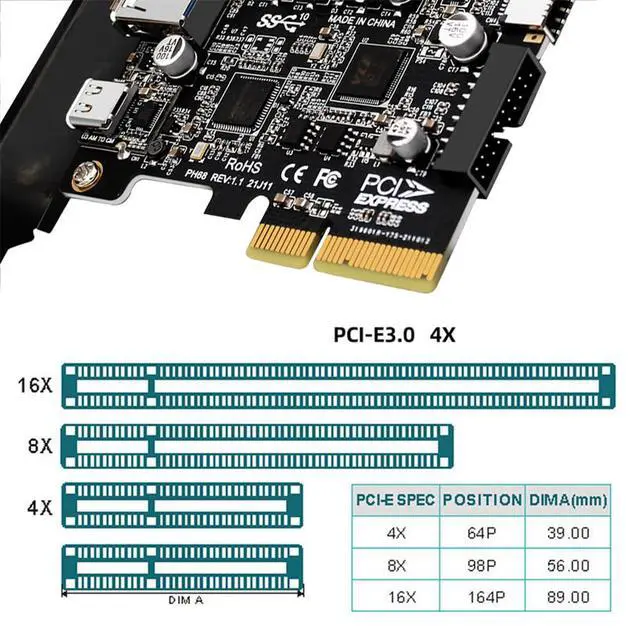

Input: Compatible slot: PCIe x4, PCIe x8, PCIe x16

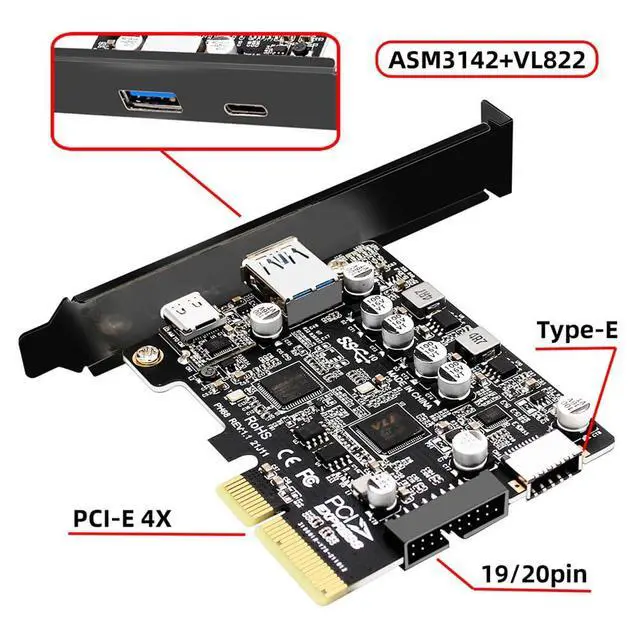

Output: Type-E connector, IDC-19p/20pin Header, Type-C Female, Type-A Female

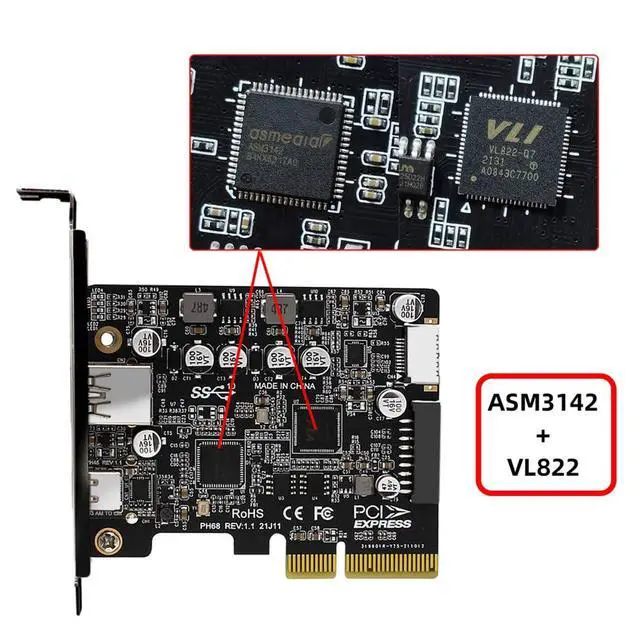

Dual Chipset: ASM3142+VL822 chipset, ASM3142 supports the new feature of USB3.1 Gen2, named Multiple INs to achieve fully utilization rate of 10Gbps data rate, taking advantage of the available bandwidth of USB3.1 Gen2 bus. VL822 is a versatile USB 3.1 Gen 2 Hub Controller, offering a highly integrated, application-specific design.

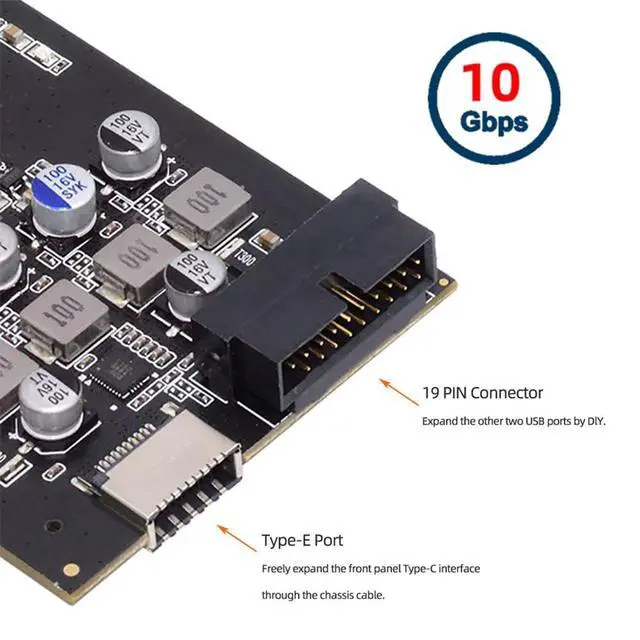

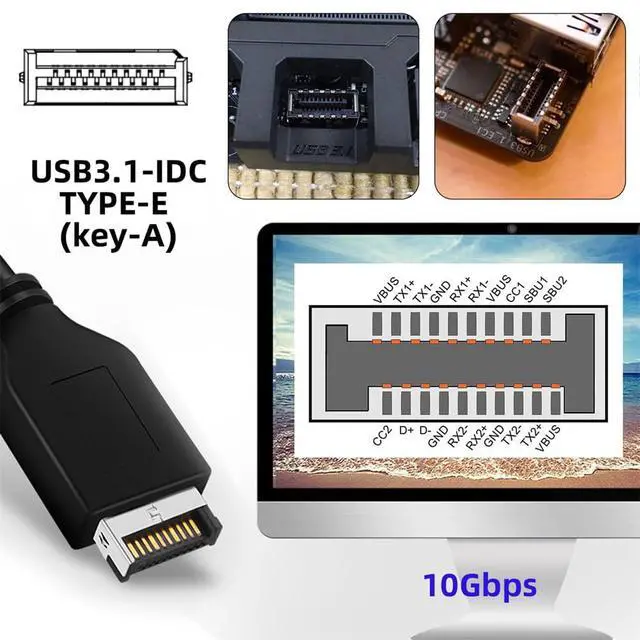

Type-E USB 3.1 Front Panel Socket: The adapter is a converter to convert the available PCI-E of a motherboard into a USB 3.1 Type-E header. Thus the USB 3.1 port of a housing can also be supplied with USB 3.1 without a suitable mainboard.

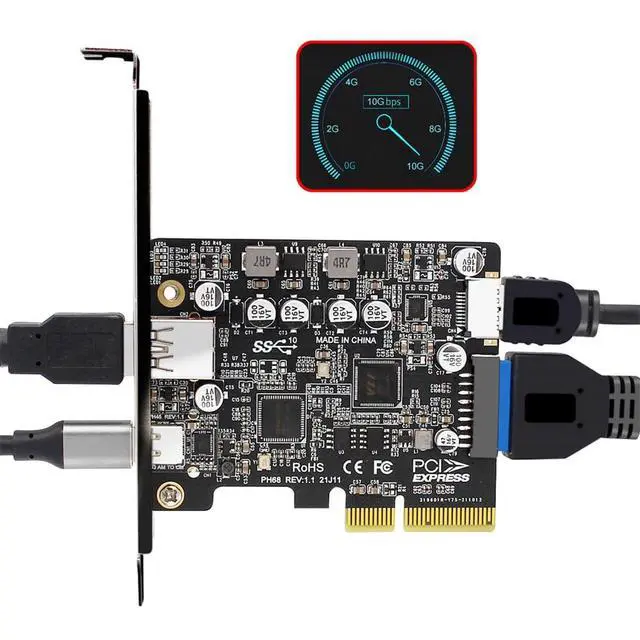

10Gbps Data transfer: Support 10Gbps data rating and 5V power. Compliant with USB Base Specification 3.1/3.0, Output USB3.0 interface and Type-C/Type-E interface. Compliant with USB 3.0 Super-Speed (10/5Gbps), USB 2.0 Hi-Speed (480Mbps), USB 1.1 Low-Speed (1.5Mbps).

No need any extra Power Supply,build in Self-Powered IC.

Compatible with Windows 7, 8, 10, 11 and Mac OS 10.8.2 and above. Win 10, Mac OS, and Linux does not need any driver.It requires installing a driver when operating on Windows 7."
