Features: - Two video stream groups for dual display, each group only supports one to use simultaneously.
- Compatible with TBT4/3 and other USB-C Alt Mode ports on Mac or Windows computer.
- Supports mirror and extend modes.
- Boasts excellent heat dissipation capabilities and occupies minimal space, making it convenient to carry around.
Package Contents: 1x USB 3.0 to DP/HDMI Dual Display Adapter(cable length: 90mm/3.5in), 1x CD-Shaped Card for Driver Download Links, 1x Quick Start Guide
Part Number: Input: 1 x USB 3.0 Cable1 x HDMI1 x VGA2 x USB 3.01 x RJ45 Gigabit EthernetCombo: 1 x SD Card Reader,1 x Micro SD Card Reader
Type: USB to HDMI Adapters
Color: Black
Features: Upstream USB3.0 foldable extension cable designed for Mini Dock handy travelling
Built in HDMI port maximum resolution up to 2560x1600 and VGA port reach at 1080p
Two USB-A ports extended USB3.0 (5Gbps) data transferring, and USB2.0 compliance
Gigabit Ethernet with devices wake up function
Combo built in USB3.0 SD and TF / Micro SD
Specifications: Audio Specifications: 7.1 surround sound
Maximum Analog Resolutions: 1920 x 1200 or 1080p
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions: 1024 x 768, 1280 x 720 (High-definition 720p), 1920 x 1080 (High-definition 1080p), 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160 (Ultra HD 4K)
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) Male Input
Specifications: Audio: Yes
Chipset ID: STDP4320
Converter Type: MST Hub
Output Signal: HDMI
Ports: 2
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions:
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920 x 1080 (High-definition 1080p) @60 Hz - 22%
1920 x 1200 @60hz - 30%
2560 x 1440 @60hz - 35%
2560 x 1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30 Hz - 38%
Note: Exceeding 100% will reduce functionality.
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input

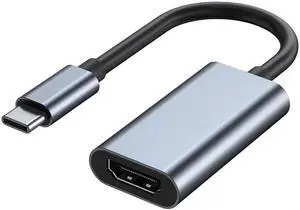

Specifications: Reversible USB-C Connector. 4K (3840x2160)@60Hz High Resolution. Aluminum Alloy Shell. High-quality Nylon Braided Cord. Gold Connector. Cable length: about 20cm / 7.87inch. Nylon cord can withstand bending test of 6,000+ times without reducing cable flexibility and ensure the best performance possible.
Specifications: Audio: Yes
Chipset ID: T5-302/MCT
Output Signal: HDMI
USB Pass-Through: No
Audio Specifications: 2-Channel Stereo (48Khz)
General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset
Maximum Digital Resolutions: 1920 x 1200 / 1080p
Supported Resolutions:
Widescreen(16/32 bit):
1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 x 720
Standard(16/32 bit):
1600 x 1200, 1400 x 1050, 1280 x 1024, 1280 x 960, 1152 x 864, 1024 x 768, 800 x 600
Connector A: 1 - USB Type-A (9 pin) USB 3.0 Male Input
Connector B: 1 - HDMI (19 pin) Female Output
Humidi...
Specifications: Connect A: USB 3.1 Type-C Male
Connect B: HDMI Female / VGA Female
Compatible Devices for USB 3.1 Type-C with DP Alt Mode or Thunderbolt 3 (not a full list)
PC:
MacBook 2015 and newer/ MacBook Pro 2016 and newer/ iMac 2017 and newer/ iMac Pro 2017 and newer
MacBook Air 2018/ iPad Pro 2018 / New Mac Mini
Dell XSP 15/13
ASUS T303ua/ ZenBook 3
Lenovo YOGA900/910/920 / Lenovo Thinkpad X1 Carbon 5th
Chromebook Pixel 2
HP EliteBook Folio G1/ Spectre 13 X360
Huawei Matebook
And more...
Smartphones:
Huawei Mate 10
Samsung Galaxy S8/S8+/S9 / Samsung Galaxy Note8/9
Microsoft Lumia 950 / LG G5 / V20 / V30
And more...
