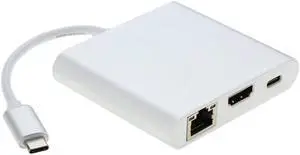

Specifications: The USB-C to Ethernet Adapter with Power Delivery is an ideal solution for wired network connectivity and data transfer on the go, in the office, or any work space while having the ability to simultaneously charge a mobile device. This adapter connects to a USB-C or Thunderbolt 3 enabled laptop, tablet, or desktop computer and features an Ethernet port and a USB Type-C port with power delivery.
Convenience
The small form factor of this adapter makes it a portable and convenient solution that provides a Gigabit Ethernet port for a wired internet connection and a USB Type-C port with power delivery. The adapter is perfect for connecting to networks where Wi-Fi is unavailable or for computers that do not provide a wired Ethernet port or possibly have a dam...
Specifications: Power Mode: Bus-powered or self-powered
Display: Display resolution: 4K @ 30 Hz / 1080p @ 60 Hz
Ethernet:
Transfer Rate: 1000 Mbps (Half Duplex) / 1000 Mbps (Full Duplex)
IEEE: IEEE 802.3az, IEEE 802.3, 802.3u, and 802.3ab, IEEE 802.3x
Modes:
Supports Wake On LAN function, suspend mode and remote wake-up via link-change, Magic Packet or Microsoft wake-up frame
Supports IEEE 802.1Q VLAN tagging and 2 VLAN ID filtering
Supports Jumbo Frame
Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and TCP Large Send Offload
Output Connector: Host Interface: USB Type-C Male connector
Video Interface: HDMI DB 15 pin Female connector
Ethernet Port: RJ-45 Female connector (Gigabit Ethernet)
USB Port: USB 3.0 Female connector x2
Specifications: 4K Support: Yes
Bus Type: USB-C
Displays Supported: 1
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Maximum Power Delivery Support: 60 W
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility:
Windows 7, 8, 8.1, 10
Mac OS 10.9 to 10.12
Chrome OS
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...
Specifications: 4K Support: Yes
Audio: Yes
Bus Type: USB-C
Chipset ID: VLI - VL812 (USB 3.0 Hub), VLI - VL100 (USB Power Delivery), PS - PS171 (DVI), Realtek - RTL8153 (LAN)
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab; USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0); 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 1920 x 1200 - 60 Hz (DVI)
Maximum Power Delivery Support: 60W
Output Signal: DVI-D (DVI Digital)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type(s): 1 x USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8.1, 10 / Mac OS 10.11 to 10.12 / Chrome OS
Note:
Not all...
Specifications: 4K Support: Yes
Bus Type: USB-C
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0) / 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 3840 x 2160p (HDMI)
Type and Rate USB: 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.9 to 10.12 / Chrome OS
Power Source: USB-Powered
Output Connector: 1 x USB Type-C (24 pin) USB 3.0 Male
1 x HDMI (19 pin) Female
1 x RJ-45 Female
2 x USB Type-A (9 pin) USB 3.0 Female
1 x USB Type-C (24 pin) USB 3.0 Female
Specifications: System Requirements:
Computer with USB-C port that supports USB DisplayPort Alternate Mode
DisplayPort, Mini DisplayPort, VGA, DVI or HDMI external display
Ethernet network
Thunderbolt 3: Yes
Package Contents: U442-DOCK1 USB 3.1 Gen 1 USB-C Docking Station
Owner’s manual
