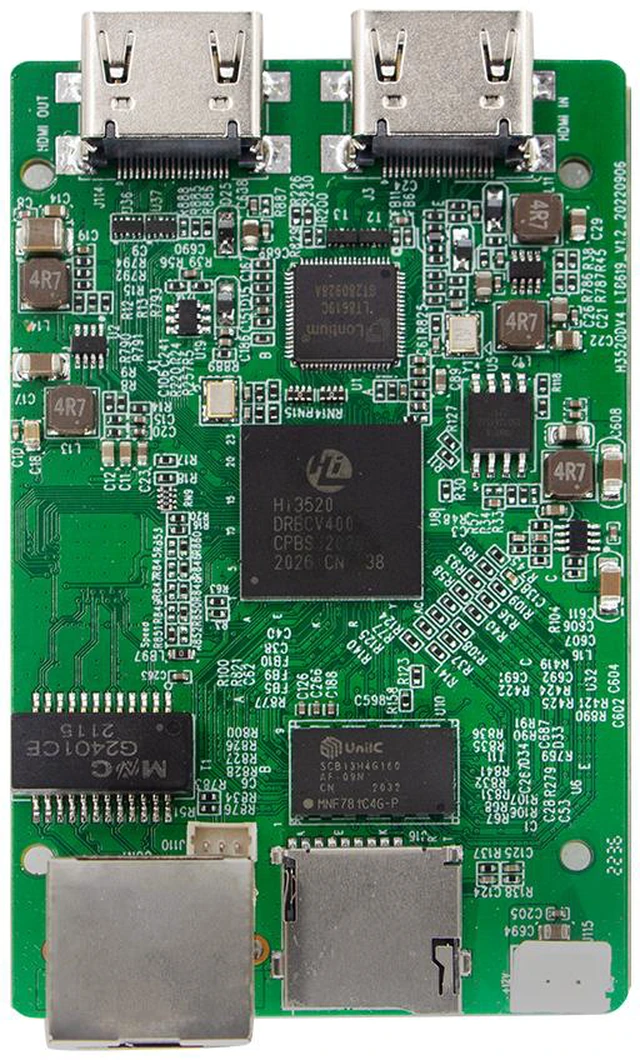

Xstrive XSWEDR-S-GC-HDMI Single-Channel HDMI Video Encoder Board with Loopout, 1080P@60fps H.265/H.264, Supports RTSP/RTMP/SRT/ONVIF Protocols, Embedded OEM Live Streaming Module
- -HDMI Video Input & Local Loopout
- Features 1x HDMI input and 1x HDMI loopout interface, supporting local pass-through display up to 1080P@60fps for real-time monitoring during live encoding.
- -H.265 / H.264 Compression & Flexible Bitrate
- Supports efficient H.265 and H.264 video compression with an adjustable bitrate range from 35Kbps to 50Mbps to optimize network bandwidth utilization.
- -Multi-Protocol Network Streaming
- Compatible with major streaming and network protocols including RTSP, RTMP, UDP-TS, HLS, HTTP-FLV, ONVIF, SRT, and WebRTC for versatile system integration.
- -Wide-Voltage Power & Compact OEM Design
- Ultra-compact PCB board operating on DC 12V~24V wide voltage via a standard 2.54mm header, ideal for embedded hardware integration.
- -Remote Firmware & Parameter Management
- Supports remote parameter configuration and online firmware upgrades via Web UI and centralized cloud platform management.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Overview
The XSWEDR-S-GC-HDMI is an embedded single-channel HDMI video encoding board designed for OEM integration and AV-over-IP applications. It converts HDMI video signals into H.265/H.264 network streams up to 1080P@60fps while providing a local HDMI loop-through for passthrough monitoring.
Features
1080P@60 Video Encoding
Processes 1-channel HDMI video input up to 1080P@60fps into H.265 or H.264 IP network streams.
HDMI Pass-Through Loopout
Equipped with a local HDMI loopout port, allowing passthrough monitoring on an external display without video conversion lag.
Multi-Protocol Support
Designed for integration with RTSP, RTMP, SRT, ONVIF, HLS, UDP-TS, and WebRTC network streaming protocols.
Embedded Hardware Design
Compact bare PCB form factor with DC 12V24V wide voltage input via a 2.54mm pin header.
Developer Application
Suitable for embedded systems, prototyping, and custom hardware integration. Requires basic network and electronic configuration knowledge.
| Model | XSWEDR-S-GC-HDMI |
| Video input | 1-Channel HDMI Input |
| Video output | 1-Channel HDMI Output (1080P@60fps) |
| Network video output protocol | RTSP / RTMP /SRT/UDP-TS / HLS / HTTP-FLV / ONVIF |
| Output video encoding format | H.264/H.265 |
| Video encoding rate | 35Kbps~50Mbps |
| Remote Upgrade | Support |
| Remote management | Support |
| Working Power | DC 12V~24V |
| Working temperature | 0~70 |
| Dimesions | 87x57mm |
| Weight | 30g |
