BZBGEAR 1x4 4K UHD HDMI Splitter/Distribution Amplifier Kit with 4 Receivers and IR/RS-232/Audio De-embedding up to 230ft over Category Cable

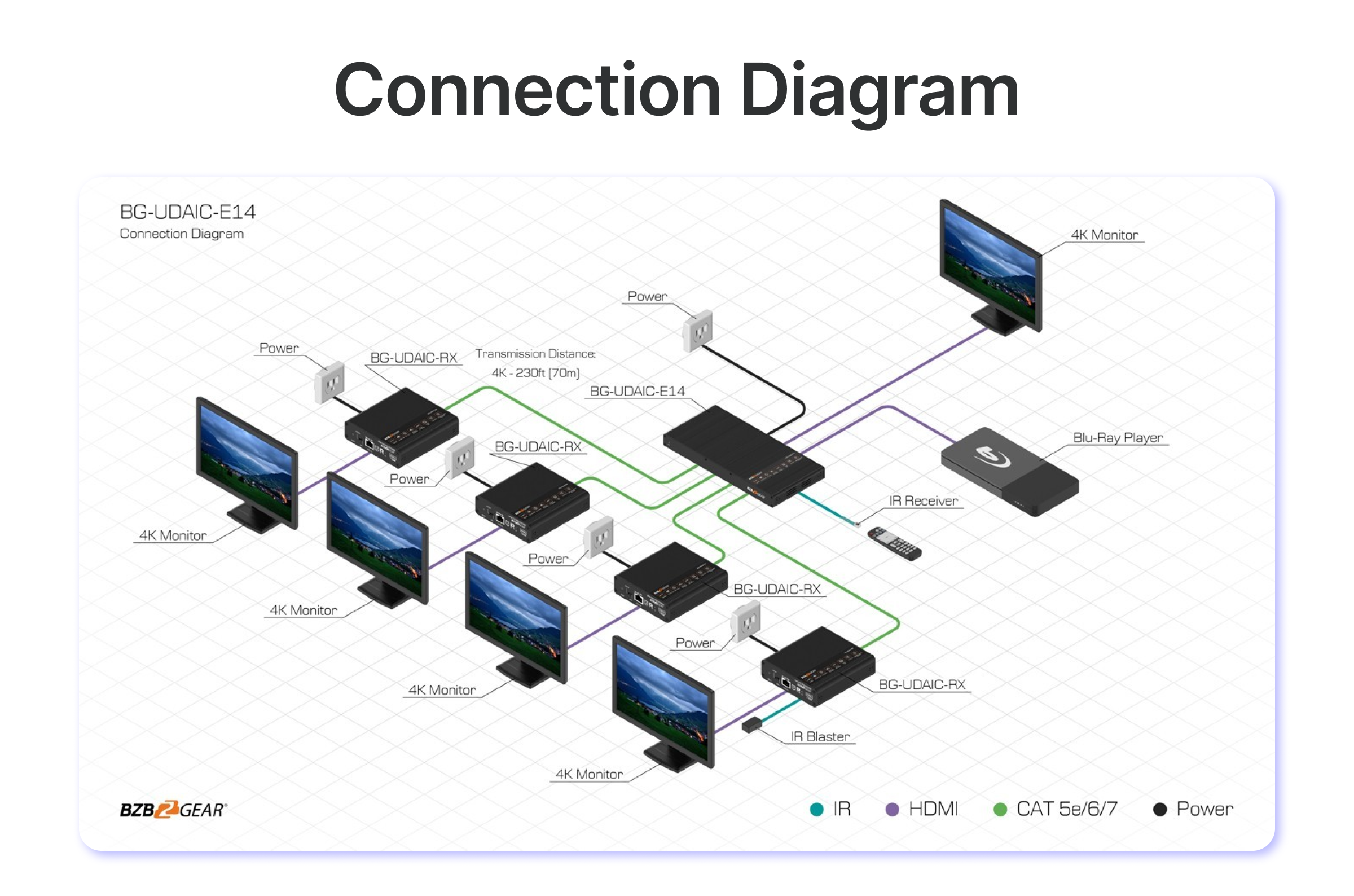

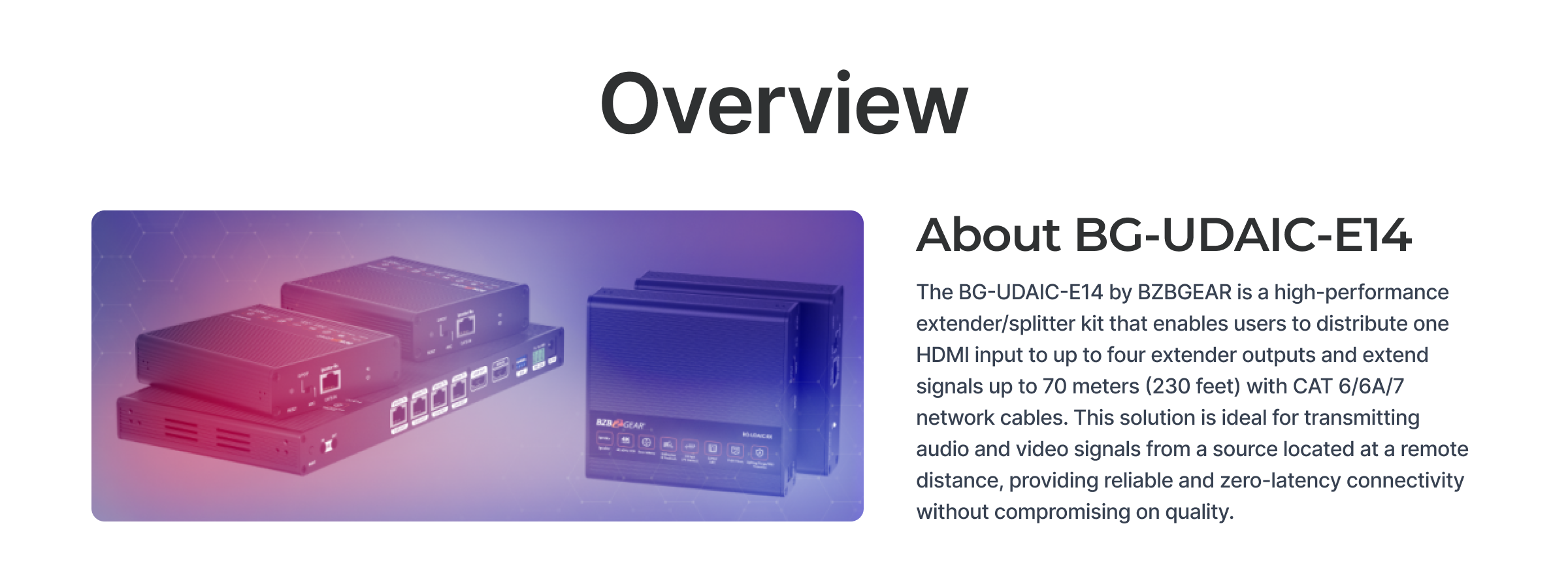

This extender/splitter kit enables operators to distribute one HDMI input to up to four extender outputs and extend signals up to 70 meters (230 feet) with CAT 6/6A/7 network cables. This enables operators to host video and audio from a location farther away from displays and speakers without having to worry about the latency and unreliability of a wireless connection.

Connectivity & Quality

The BG-UDAIC-E14 supports resolutions up to 4K@60Hz. Despite sending the signal long distance, zero-latency transmission gives this kit an advantage over wireless connections. Using a wired connection for this purpose gives higher and more consistent image quality when compared to a wireless connection.

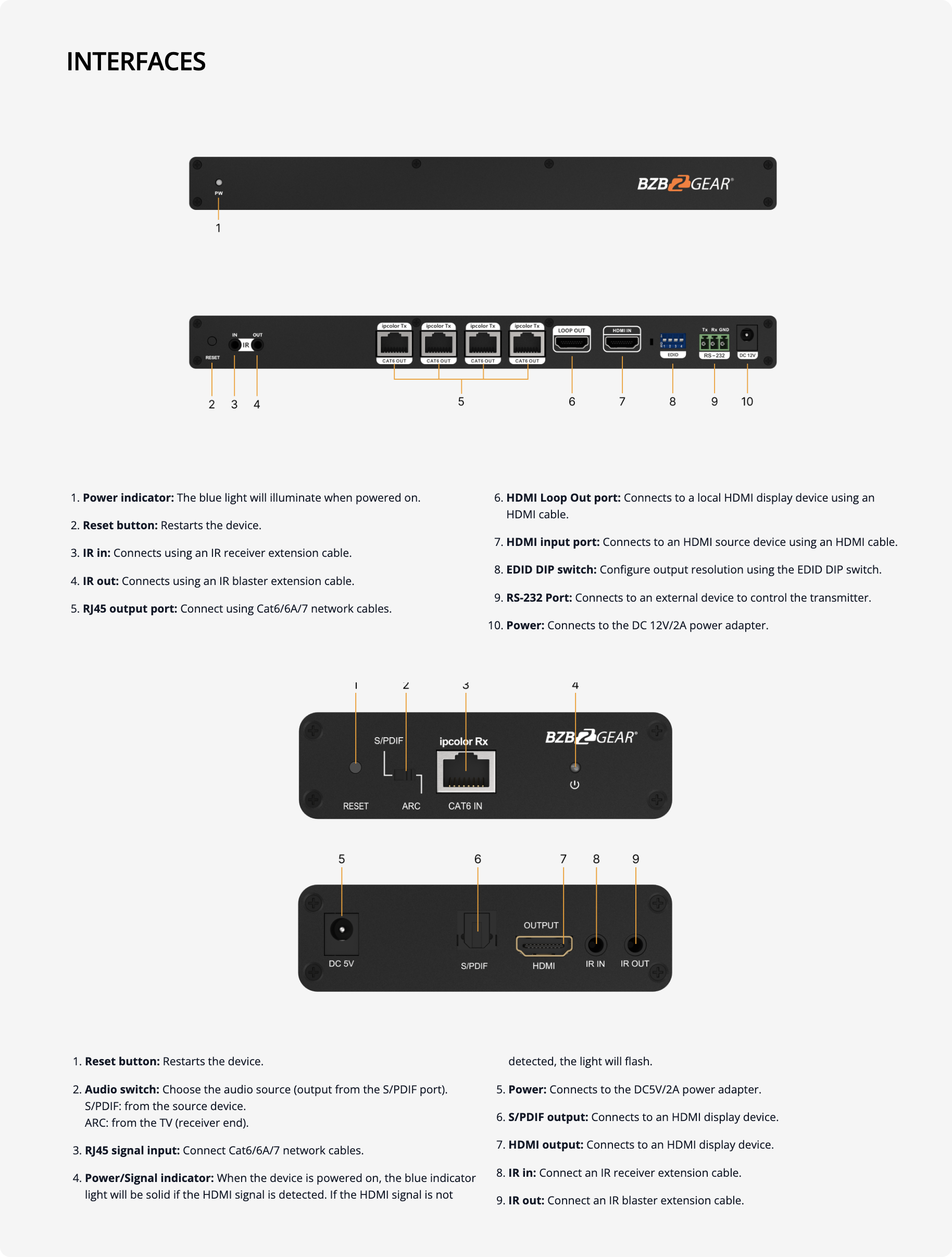

The receivers can output digital audio from the display (ARC) or from the source device via the S/PDIF port. HDMI loop out is also available for connecting local displays.

Control & Features

Bi-directional IR passthrough via IR blaster and IR receivers are available, enabling operators to control equipment regardless of distances or obstacles. EDID passthrough is also available. Additionally, operators can set the EDID of the product manually with EDID dip switches. RS-232 passthrough is also supported.

Features:

• Crystal Clear Images - Supports resolutions up to 4K@60Hz
• ARC - Audio Return Channel support
• Control - Bi-Directional IR Passthrough
• Long Range - Transmit 4K HDMI signals up to 70m via CAT 6/6A/7
• HDMI - HDMI 2.0 and HDCP 2.2 compliant to ensure copyright protections
• Audio De-Embedding - Digital audio provided via TOSLINK connector on receiver
• Zero latency transmission
• Split and extend 1 HDMI input signal to 4 HDMI outputs
• 1 HDMI loop out for local displays
• EDID passthrough or manual configuration of EDID
• RS-232 command control
• Surge, lightning, and ESD protection
