TECHNICAL SPECIFICATIONS
| Technology | Biocular Dual-Camea infrared Light |
|---|---|
| CPU | Dual core ARM Cortex-A7 |
| Accuracy | Up to 0.2 mm |
| Single Capture Range | 230 x140 mm@310 mm |
| Working Distance | 250 mm ~ 500mm |
| Minimum Point Distance | 0.1 mm |
| Minimum Scan Volume | 50x50x50 (mm) |
| Maximum Scan Volume | 2000x2000x2000 (mm) |

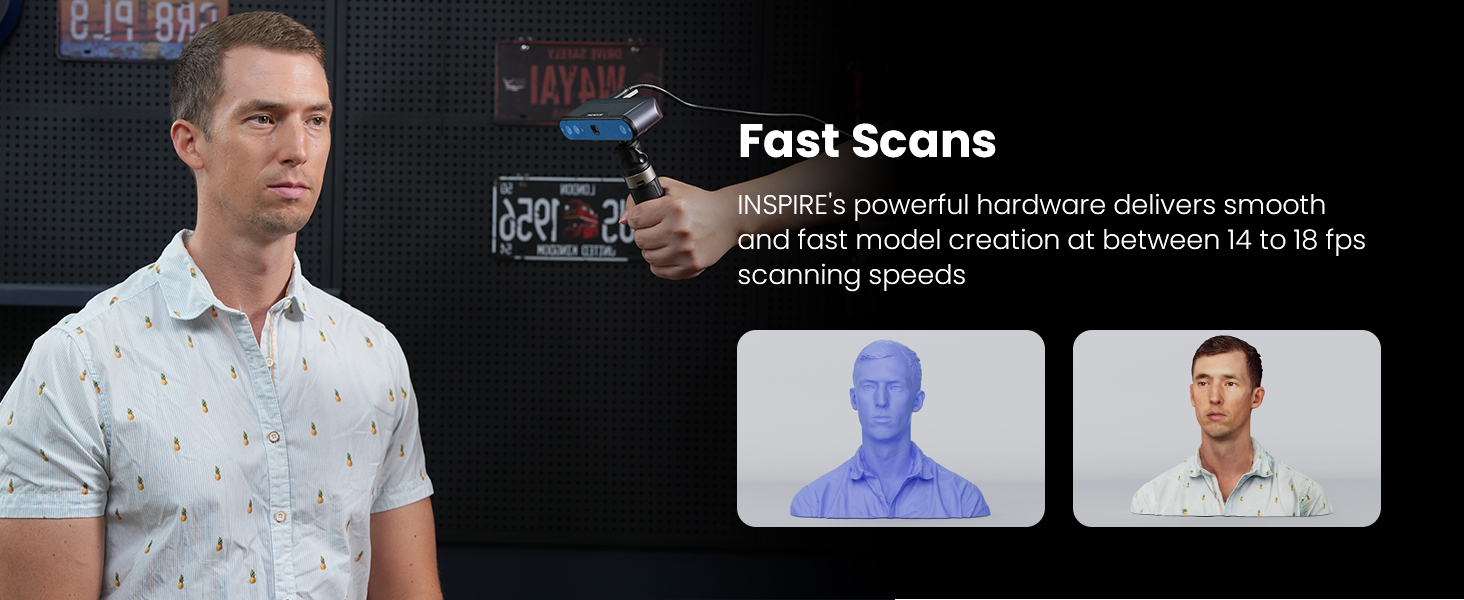

| Scan Speed | 14-18 fps |
|---|---|
| Light Source | Class 1 infrared Light |
| Gyroscope | YES |

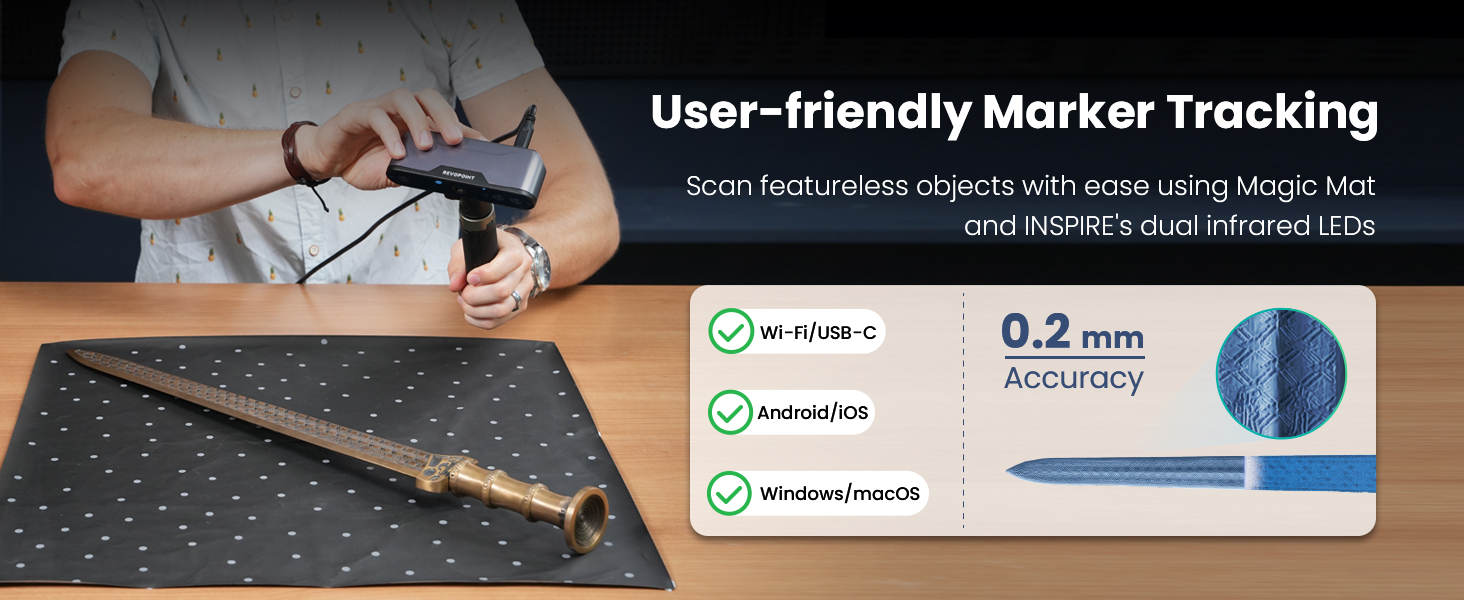

| Alignment | Feature, marker |

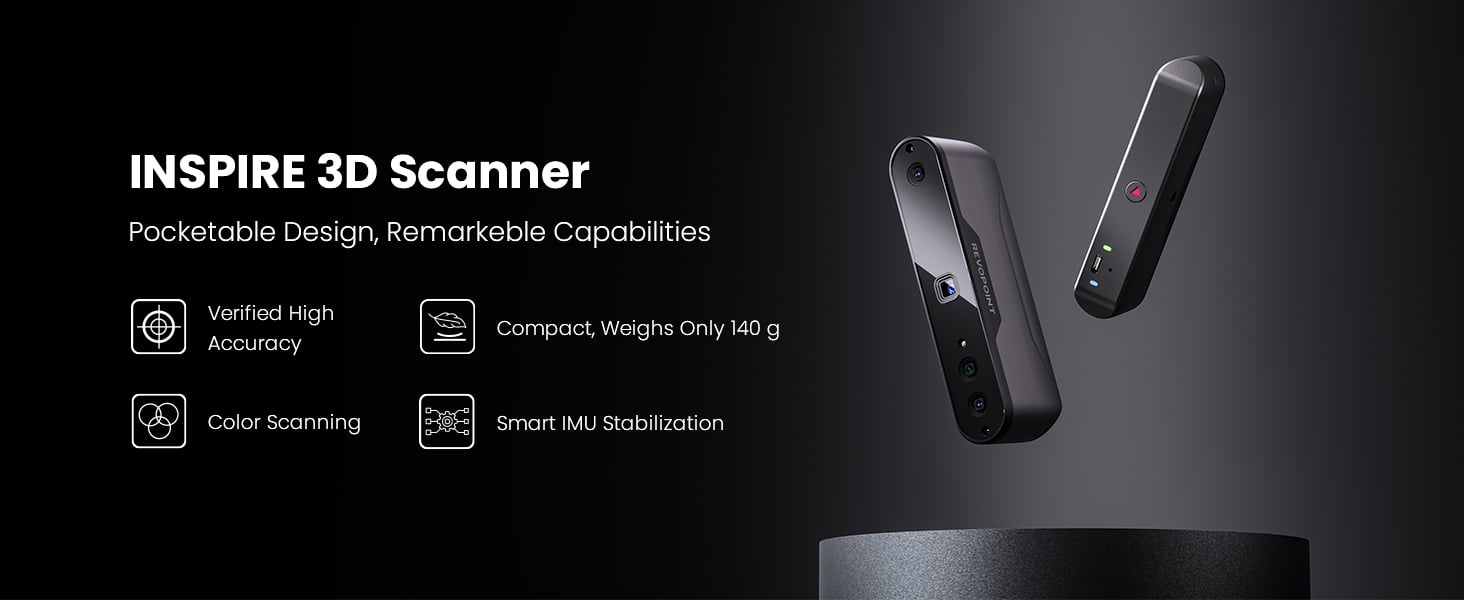

| Scanner Weight | 140 g |
| Wi-Fi | Wi-Fi 6 |
| Connection | Type-C |
| Special object scanning | For the transparent and highly reflective objects, please use scanning spray. |
| Products | |||||
|---|---|---|---|---|---|
| Applicaiton | Hobbyists/ Medium Size | Professional/ Medium Size | Professional/ Large Size | Professional/ Small Size | Featureless items |
| Single-frame Precision | 0.2 mm | 0.05 mm | 0.1 mm | 0.02 mm | / |
| Point Distance/Resolution | 0.1 mm | 0.05 mm | 0.3 mm | 0.05 mm | / |
| Minimum Scan Volume | 50x50x50 (mm) | 20x20x20 (mm) | 70x70x70 (mm) | 10x10x10 (mm) | / |
| Maximum Scan Volume | 2000x2000x2000 (mm) | 2500x2500x2500 (mm) | 4000x4000x4000 (mm) | 500x500x500 (mm) | / |
| Working Distance | 250~500 mm | 150~400 mm | 300~800 mm | 100~200 mm | / |
| Scanner Weight | 140 g | 190 g | 210 g | 160 g | / |
| Connector Type | Type-C / USB 3.0 | Micro-B to A / C USB 3.0 | Micro-B to A / C USB 3.0 | Micro-B to A / C USB 3.0 | / |
| Wi-Fi | / | ||||
| Scan Speed | up to 18 fps | up to 18 fps | up to 12~18 fps | up to 10 fps | / |
