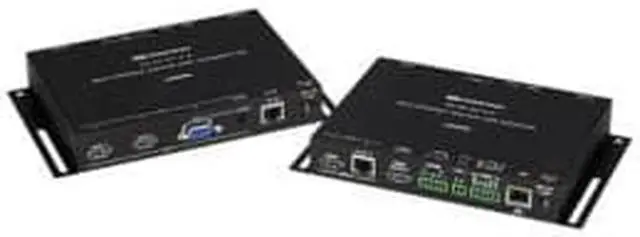

Crestron HD-MD-400-C-E DM LitE HD Scaling Auto-Switcher & HDMI Over CATx Extender 400 (NOB)

Crestron HD-MD-400-C-E DM LitE HD Scaling Auto-Switcher & HDMI Over CATx Extender 400 (NOB)

Brand:  Crestron

Model Number:  HD-MD-400-C-E

Product Type:  Auto-Switcher & Extender

Video Switcher:  3x1+1 (3 inputs at transmitter + 1 input at receiver) manual or auto-switching, audio-follow-video, Crestron QuickSwitch HD technology

Scaler:  HD video scaler and deinterlacer, noise reduction, 3:2/2:2 pull-down detection and recovery, aspect ratio selection, VGA phase/clock & H/V position adjustments, picture and RGB color adjustments

Input Signal Types:  HDMI w/Deep Color (DVI & Dual-Mode DisplayPort compatible [3]); VGA/RGB (RGBHV, RGBS, RGsB); component (YPbPr)

Output Signal Types:  HDMI w/Deep Color (DVI compatible

Resolution HDMI:  1920x1200 WUXGA ,1920x1080 HD 1080p

Resolution VGA/RGB:  1600x1200 UXGA, 1920x1200 WUXGA

Audio Input Signal Types:  HDMI (Dual-Mode DisplayPort compatible), analog stereo

Output Signal Types:  HDMI, analog stereo

Digital Formats:  Dolby Digital, Dolby Digital EX, DTS, DTS ES, DTS 96/24, LPCM up to 8 channels

Analog Formats:  Stereo 2-channel

Analog-To-Digital Conversion:  24-bit 48 kHz

Digital-To-Analog Conversion:  24-bit 48 kHz

Analog Output Volume:  -80 to +20 dB Level adjustment range, plus Mute

Communications Ethernet:  10/100 Mbps, auto-switching, auto-negotiating, auto-discovery, full/half duplex, DHCP, web browser setup and control, Crestron control system integration

USB:  Supports a TT-100 series cable caddy at the transmitter

Connectors at Transmitter (HD-TX-301-C-E)

HDMI 1 – 2 Input:  HDMI Type A connectors, female; HDMI digital video/audio inputs (DVI & Dual-Mode DisplayPort compatible

VGA 3 Input:  HD15 connector, female;RGB (VGA) or component video input; Formats: RGBHV, RGBS, RGsB, YPbPr

Audio Input:  3.5 mm TRS mini phone jack; Unbalanced stereo line-level audio input; Maximum Input Level: 2 Vrms; Input Impedance: 44k Ohms

Connectors at Receiver (HD-RX-201-C-E)

HDMI, Input 1:  HDMI Type A connector, female; HDMI digital video/audio input (DVI & Dual-Mode DisplayPort compatible)

from tx, input 2:  8-pin RJ45 connector, female, shielded;Link port for connection to HD-TX-301-C-E transmitter;Maximum cable length: 230 ft (70 m)

hdmi output:  HDMI Type A connector, female; HDMI digital video/audio output (DVI compatible

Controls & Indicators at Transmitter (HD-TX-301-C-E)

TO RX:  LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal

PWR:  Bi-color green/amber LED, indicates operating power is supplied from the power pack via the 24VDC input or from the RX via the DM Lite link, turns amber while booting and green when operating

Controls & Indicators at Receiver (HD-RX-201-C-E)

from tx, input 2:  LEDs (on RJ45 connector), green LED indicates DM Lite link status, amber LED indicates a valid video signal

LAN:  LEDs (on RJ45 connector), green LED indicates Ethernet link status, amber LED indicates Ethernet activity
