- APP's name : FairyNest X

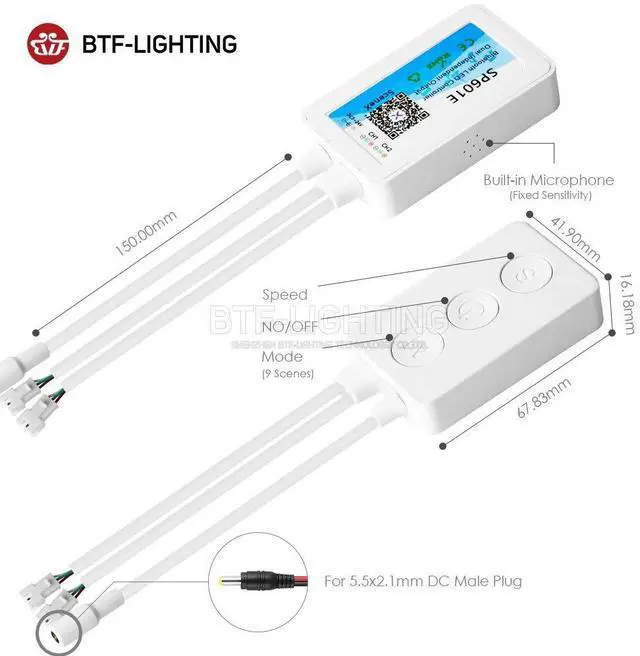

- Connector : 3 PIN male connector . Support 3 PIN Addressable LED strip.
- Power plug: 5.5mmx2.5mm DC connector
- Support IC: SPI (TTL) Digital Signal WS2811 ,WS2812B, 1903 ,16703 etc Except SK6812 RGBW

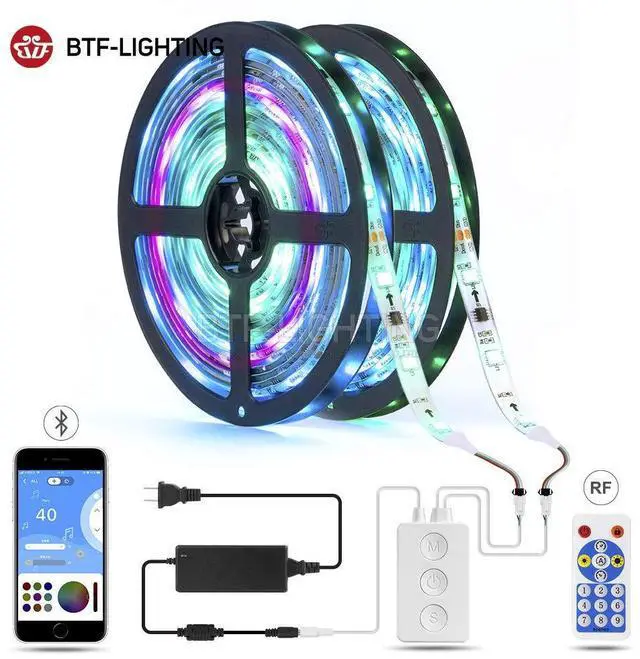

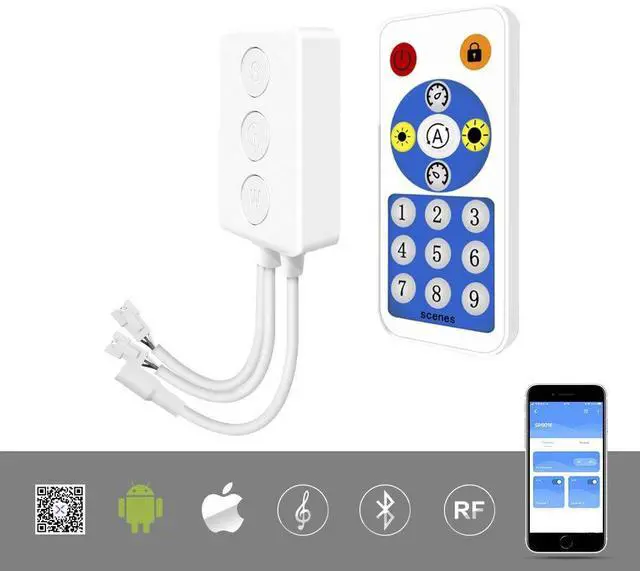

- Control : RF remote contol , APP bluetooth control , Button control
- Lighting Effect : Music lighting effect , non-music chasing lighting effect , singal color effect etc
- Music mode: Built-in microphone
- Working voltage: DC5V-24V(The controller cannot regulate the output voltage at the VCC. That means the output voltage of your power supply must be the same as the work voltage of your led lights. )
- If your LED light is 5V,please use 5V power supply. Never use 12V or 24V power. Otherwise, the LED lights will be damaged.
- Control pixel QTY:Each port control 600 IC . Two ports control 1200 IC . 600pixels/port Use SP901E singael amplifier together can control 8 times pixels
- Each port is independently controlled or can be controlled synchronously
Features:
- Supports both APP control and RF remote control;
- Dual output of two different signals, suitable for a variety of applications and meet the different needs of customers;
- Supports common single-wire LED driver ICs in the market ;
- Build in Music and Non-Music effects, multi-parameters adjustable;
- DC5~24V wide voltage input, with power supply anti-reverse connection function;
- With the function of automatically saving setting parameters.
Features

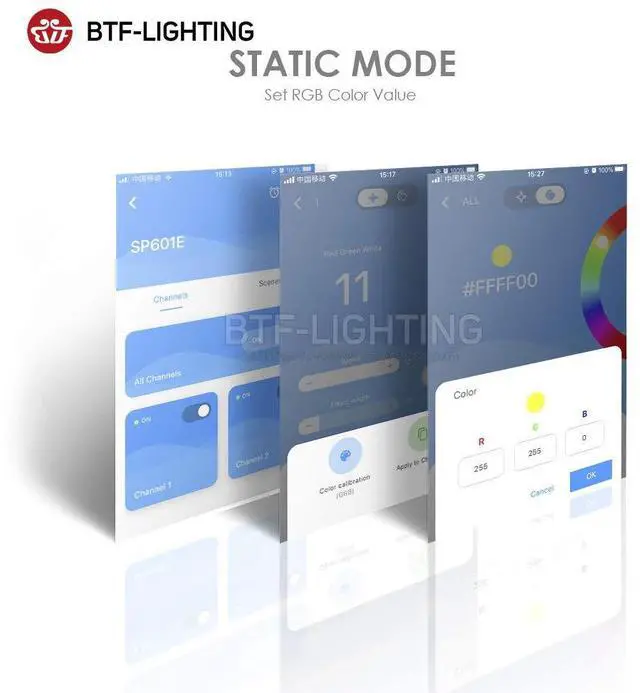

1. DIY Color Lighting Effect
2.Timing Mode .Time switch your LED Strip
3. Adjust the LED strip color order . When you light up red ,but the LED strip is green .
4.Auto Playing .
5.Mark the effects you like

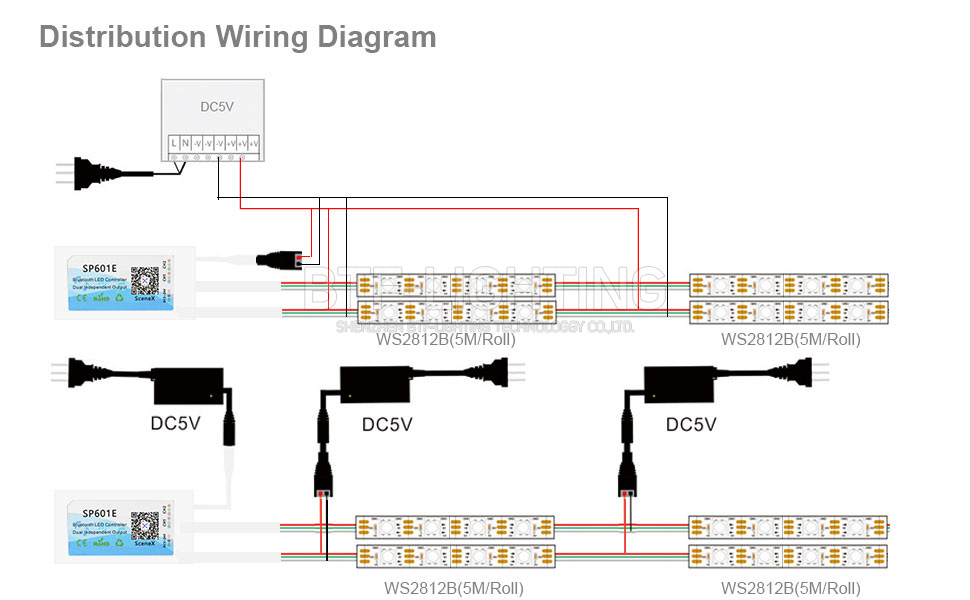

1.DC5V WS2812B LED strip , only use DC5V ,never use DC12V or DC24V
2.Too long project needs voltage-adding .
3.Add voltage Every 5 meters .
4.When you light up 1 color(red or green or blue) , each LED is 0.1W . If you light up 2 colors (red+green) ,each LED is 0.2W , when you light up 3 colors (red+green+blue), each LED is 0.3W
5.The LED strip power is not fixed, so the distribution wiring diagram is not fixed .Voltage-adding can be supplemented according to the actual situation
2PIN ~ 6PIN LED Controller
2.4GHZ WiFi / Bluetooth Mesh/ ZigBee 3.0 Controller
Working Voltage: DC5V/ DC12V/ DC24V
Only Indoor Use
