Compatibility: Compaq Evo n620c Notebook PC
HP Compaq nc4000 Notebook PC
HP Compaq nc4010 Notebook PC
HP Compaq nc6000 Notebook PC
HP Compaq nc8000 Notebook PC
HP Compaq nw8000 Mobile Workstation
HP Compaq nx5000 Notebook PC
HP Compaq nx7010 Notebook PC
Ports Spec: 1 x audio - line-in - mini-phone stereo 3.5 mm
1 x audio - line-out - mini-phone stereo 3.5 mm
1 x audio - SPDIF output
1 x display / video - S-video output - 4 pin mini-DIN
1 x display / video - composite video output - RCA
1 x serial - RS-232 - 9 pin D-Sub (DB-9)
1 x parallel - IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25)
2 x Hi-Speed USB - 4 pin USB Type A
1 x IEEE 1394 (FireWire)
1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
1 x display / video - DVI-Digital - 24 pin digital DVI
1 x display / video - VGA - 15 pin HD D-Sub (H...

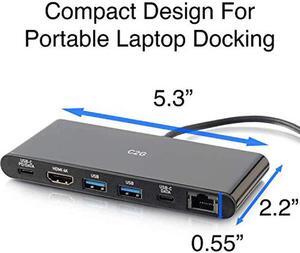

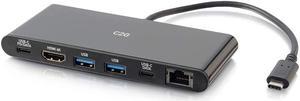

Ports Spec: 4K HDMI: Connect to a 4K display using the included HDMI cable.
Gigabit Ethernet: Connect to local network for network and internet access.
1 x USB-C: Connect storage devices and transfer data up to 5Gbps through the USB-C port.
1 x USB-C Data and PD: Transfer data up to 5Gbps from a storage device and power a laptop or tablet with up to 60W power delivery.
2 x USB-A: Connect a keyboard/mouse combo, charge a phone, or connect to a storage device and transfer data up to 5Gbps.
Compatibility: Windows 7, 8, and 10
macOS
Android
Chrome OS
Ubuntu/Linux
Ports Spec: 3x 4K HDMI: Connect to three 4K displays via the HDMI ports.
2x 4K DisplayPort: Connect to two 4K DisplayPort displays via the DisplayPort ports.
1x USB-C: Connect storage devices and transfer data up to 10Gbps through the USB-C port.
1x USB-C Power Delivery: Power a laptop or tablet with up to 85W power delivery.
4x USB-A: Connect storage devices and transfer data up to 5Gbps through the USB-A ports.
1x Front USB-A: Connect storage device and transfer data up to 5Gbps through the USB-A port. This port supports BC 1.2 for enhanced mobile device charging.
Gigabit Ethernet: Connect to local network for network and internet access.
Headphone Jack: Connect headphones and speakers for audio output.
Microphone Jack: Connect to a microphone for audio input.
Compatibility: HP Compaq Business Notebook nc4200
HP Compaq Business Notebook nc4400
HP Compaq Business Notebook nc6120
HP Compaq Business Notebook nc6200
HP Compaq Business Notebook nc6220
HP Compaq Business Notebook nc6230
HP Compaq Business Notebook nc6320
HP Compaq Business Notebook nc6400
HP Compaq Business Notebook nc8230
HP Compaq Business Notebook nc8240
HP Compaq Business Notebook nc8430
HP Compaq Business Notebook nx6120
HP Compaq Business Notebook nx6125
HP Compaq Business Notebook nx6130
HP Compaq Business Notebook nx6320
HP Compaq Business Notebook nx6325
HP Compaq Business Notebook nx6330
HP Compaq Business Notebook nx7400
HP Compaq Business Notebook nx8220
HP Compaq Business Notebook nx8230
HP Compaq Mobile Workstation nx8420
HP Compaq Business Notebook nx9420
HP Compaq Mobile Workstation nw8240
HP Compaq Mobile Workstation nw8440
HP ...
Thunderbolt 3: Thunderbolt 4, 1* Thunderbolt Port - for Host connect 1* Thunderbolt Port - for Device connect
Ports Spec: 1 x 3.5mm Audio combo Jack
4 x USB-A
1 x USB-C
1 x HDMI 2.1
2 x Displayport 1.4
1 x RJ45
1 x Thunderbolt (for Host connect)
1 x Thunderbolt (for Device connect)
Compatibility: Operating System: Mac OS 10.14 Moajve or later, Windows 10 or later
Thunderbolt 3: Yes
Ports Spec: Thunderbolt Ports:
1 x Thunderbolt 3 (Input)
Power Delivery:
Up to 85W for host laptop
Up to 15W for USB-C ports
Up to 7.5W for USB-A ports
Video Output:
2 x HDMI 2.0 (Up to 4096 x 2160 pixels each)
USB Ports:
2 x USB-A SuperSpeed 5Gbps
2 x USB-C SuperSpeed 10Gbps
Ethernet:
1 x Gigabit Ethernet
Audio:
1 x 3.5mm combo port, 24-bit 192kHz
Media Reader:
1 x SD Card Reader, UHS-II
Lock Management:
1 x Kensington Security Slot

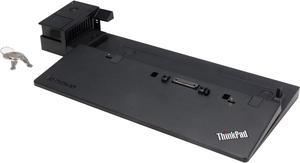

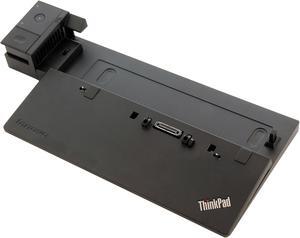

Compatibility: Compatible with the following 65w and 90w DualCore ThinkPad Models with Integrated Graphics: ThinkPad 20AQ, L440, L450, L460, L540, L560, P50s, T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T540p, T550, W550s, X240, X250, X260.
NOT recommended if the system AC adapter is 170W.
Ports Spec: AC Adapter Input: 100-240V, 50/60Hz, 0.8A; Output: 5V, 4A, 6 ft.

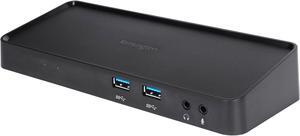

Dock Connectors: 2 x USB3.0. 2 x 3.5mm Stereo, 4 x USB2.0, RJ45 LAN, DVI-I, HDMI
CONNECTIONS:
Side A - Connector 1 USB 3.0 A (MALE)
Side B - Connector 1 HDMI (FEMALE)
Side B - Connector 2 (2) USB 3.0 A (FEMALE)
Side B - Connector 3 DVI-I (FEMALE)
Side B - Connector 4 RJ45 (FEMALE)
Side B - Connector 5 (4) USB A (FEMALE)
Side B - Connector 6 (2) 3.5MM (FEMALE)
Package Includes:
U342-DHG-402
External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.8A; Output: 5V, 4A) – 6 ft.
USB 3.0 A/B Cable – 3 ft.
Driver CD
Owner’s Manual
