Specifications: Connector(s):
1 - Drive Connectors: M.2 (PCIe, SATA, M-Key, NGFF)
1 - Host Connectors: USB 3.1 USB Type C (10 pin, Gen 2, 10 Gbps)
Interface: USB 3.1 Gen 2
Bus Type: USB 3.2 Gen 2 10Gbps
Number of Drives: 1
Drive Size: 22 mm - M.2 NVMe
Compatible Drive Types: M.2 (PCIe, NVMe, M-Key, NGFF)
Drive Installation: Fixed
Compatible Drive Types: M.2 SATA (NGFF, B+M-Key)
Supported Drive Height(s):
2230
2242
2260
2280
Chipset ID: Realtek - RTL9210B
1 - LED Indicators: Power & Activity
Maximum Data Transfer Rate: 10 Gbps
Type and Rate: USB 3.2 Gen 2 - 10 Gbit/s
UASP Support: Yes
TRIM Support: Yes
4Kn Support: Yes
Type and Rate: NVMe (PCIe Gen 3)
Insertion Rating:
USB-C: 10,000 cycles
M.2: 60 Cycles
General Specifications: Fully compatible with M.2 SATA, AHCI and PCIe NVMe based drive...
Specifications: Support Drive Size: 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110)
Host Interface: USB 3.2 Gen 2
Power Input: Via USB
Transfer Rate: Up to 10Gb/s (Depending on hard drive speed)
Structure / Material: Aluminum & Plastic
Product Dimension (L x W x H): 150 x 63 x 12mm
Product Net Weight: 99g
Drive Activity LED Indication: SSD power: solid blue; SSD access: flashing blue
Specifications: Chipset ID: JMicron - JMS580
Drive Size: 22mm - M.2 SATA
Supported Drive Height(s): 2242 / 2260 / 2280
Compatible Drive Types: M.2 (SATA, B-Key, NGFF) / M.2 SATA (NGFF, B+M-Key)
Maximum Data Transfer Rate: 6 Gbps
MTBF: 50,000 hours
TRIM Support:Yes
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s, SATA III (6 Gbps)
UASP Support: Yes
Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF) Receptacle
Host Connectors: 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Male
Note:
Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
Specifications: Support Drive Size: 4 x M.2 SSD (2230~22110)
Compatible Drive Type: NVMe PCIe Gen 4x4
Number of Drives: 4
Support Drive Length: 30mm - 110mm
Drive Bay: 1 x 5.25" half height bay
Host Interface: 4 x OCuLink(SFF-8612), pin-out defined by SFF-9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation
Drive Cooling (Active): 2 x 40*40*20mm Fan
Structure / Material: Full Metal
Drive Security: 2 segment key lock
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140...

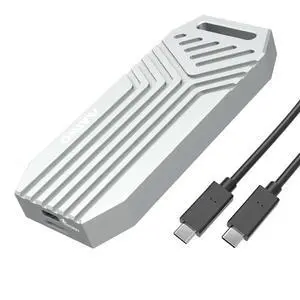

Features: Comes with a silicone protective case and lanyard for enhanced SSD protection and portability.
Features an aluminum alloy shell with a multi-stacked heat dissipation design for effective cooling.
Supports a 10Gbps transmission rate for fast and reliable data transfer.
Dual protocol support for NVME+NGFF, catering to various storage requirements.
Fully compatible with Windows, Mac
