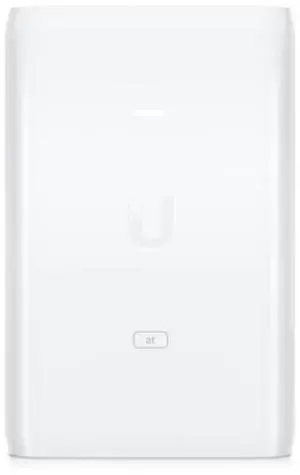

Ubiquiti PoE Adapter (15W) (U-PoE)- Type: PoE Adapter
- Color: White
- Specifications: Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
Weight: 100 g (3.5 oz)
Output voltage: 48V DC @ 0.32A
Gigabit LAN port
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 500mA max.
Inrush current: <100A peak at 25°C
Efficiency: 84.25+%
Output ripple: 200mV p-p
Switching frequency: 65 kHz
Line regulation = 3%
Load regulation = 5%
2-pair powering Pins: 4, 5 (+) and 7, 8 (-)
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 µs) power
Peak pulse current: 36A (10/1000 µs) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Ambient operating temperature: 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Ambient operating humidity: ...
- Model #: U-PoE

Quick View
Lantronix UD11000P0-01 UDS1100 Device Server with PoE- Type: Device Servers
- Color: Black
- Specifications: Data/Stop Bit:
- 2 Stop Bit2
- 8 Data Bit8
Flow Control:
- XON/XOFF
- RTS/CTS
Interfaces/Ports:
- 1 x RJ-45
Data Transfer Rate:
- 10 Mbps Ethernet
- 100 Mbps Fast Ethernet
- 300 Kbps to 230 Kbps Serial
Management:
-Lantronix DeviceInstaller GUI
- Serial login
- SNMP
- Telnet login
- HTTP
Protocols:
- ARP
- UDP
- TCP
- ICMP
- TFTP
- Auto-IP
- HTTP
Standard Memory:
- 256 KB SRAM
- 2 MB Flash Memory
Status Indicators:
- Power, 10/100 Link/Activity (green)
- 100/100 Link/Activity (green)
- Diagnostics (red)
- Status (green)
Input Voltage:
- 9 V DC to 30 V DC
Power Consumption:
- 1.50 W Maximum
For more information, please visit the official website.
- Parts: 1 year limited
- Model #: UD11000P0-01
