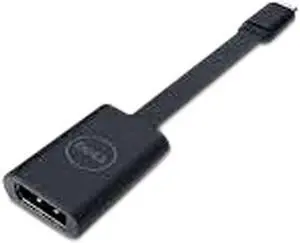

Specifications: Adapter Style: Cable Adapters
Chipset ID: STMicroelectronics - STM32F072CBU6
Converter Type: Cable Adapters
Output Signal: Mini DisplayPort
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 3840x2160 @ 60 Hz
Supported Resolutions:
1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
Wide Screen Supported: Yes
Connectors:
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B: 1 x Mini-DisplayPort (20 pin) Male Output
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
Specifications: Be able to connect your USB Type-C port computer to a legacy VGA display, such as a monitor or projector up to 1920 x 1200 and 1080p (Full HD) for compatibility with most displays, monitors and projectors with VGA; Audio must be transmitted separately
Package Contents: 1 x USB 3.1 Type-C to VGA Cable Adapter
1 x User Manual
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID:
Genesys Logic - GL3523
Realtek - RTL8153
Eton Technology - EJ899T
Parade Technologies - PS176
ITE -IT6516
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Analog Resolutions: 1920 x 1200p @ 60Hz (VGA)
Maximum Data Transfer Rate:
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz (HDMI)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility:
Windows 7, 8, 8.1, 10
macOS 10.11 to 10.14
Chrome OS
Specifications: USB 3.1 Type-C to Mini DisplayPort adapter for connecting a USB-C enabled smartphone, tablet or computer to an Mini DP-equipped monitor or display Compatible with HDMI-enabled TVs/Monitors/Projectors for both video and audio transfer This USB-C to Mini DP adapter Only Compatible with device with DisplayPort Alt Mode, Windows computers may need updated USB-C or Thunderbolt 3 drivers from the manufacturer. Video resolution up to 4K2K@ 60Hz and backward 4K2K@30Hz and 1080p@60Hz for compatibility with most displays, monitors and projectors, compatible with the following PC, Laptop: iMac 2017 / iMac Pro 2017 MacBook Pro 2017 & 2016 MacBook 2016 & 2015 New Chromebook Pixel Dell XPS 15 & 13 & 12 Yoga 920 Yoga 910, For Yoga 910 users, please ONLY plug the adapter into the White USB-C female port. Yoga 900(Yoga 4 Pro) HP Spectre x360 13 & 15...
Specifications: Audio: Yes
Chipset ID: NXP - PTN5100 / Pericom - PI3DPX1203
Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 4K (3840 x 2160) @ 60 Hz
Supported Resolutions:
1024 x 768
1280 x 720
1920 x 1080 @ 144hz
1920 x 1200
2560 x 1440
2560 x 1600
3840 x 2160 @ 60Hz
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes
Connector:
1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x Mini-DisplayPort (20 pin) Female Output
System and Cable Requirements:
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPor...
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID:
VIA/VLI - VL102
VIA/VLI - VL817
Parade - PS8338B
Parade - PS176
Analogix - ANX9833
ALCOR MICRO - AU84612
Realtek - RTL8153
Fast-Charge Port(s): Yes
Industry Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Audio Specifications: The HDMI port supports audio output
Compatible Networks: 10/100/1000 Mbps
Auto MDIX: Yes
Full Duplex Support: Yes
Maximum Resolutions:
1920 x 1200p @ 60Hz (VGA)
3840 x 2160p (HDMI) @ 30Hz
Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p
Maximum Data Transfer Rate : 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
UASP Support: Yes
Powe...
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...
Specifications: 4K Support: Yes
Bus Type: USB-C
Displays Supported: 1
Industry Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Maximum Power Delivery Support: 60 W
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility:
Windows 7, 8, 8.1, 10
Mac OS 10.9 to 10.12
Chrome OS
Specifications: Maximum Analog Resolutions: 2048 x 1280p @ 60Hz
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
