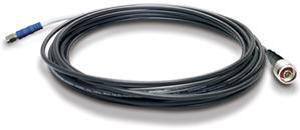

TRENDnet 26.3 ft. LMR200 Reverse SMA to N-Type Cable Model TEW-L208
- Type: SMA to N-Type
- Color: Black
- Connector Number: 2
- Specifications: Construction Inner Conductor (Solid BC) 0.044 in. (1.12 mm) Dielectric (Foam PE) 0.116 in. (2.95 mm) Outer Conductor (Aluminum Tape) 0.121 in. (3.07 mm) Over Braid (Tinned Copper ) 0.144 in. (3.66 mm) Jacket (PE) 0.195 in. (4.95 mm) Mechanical Bend Radius: Installation 0.5 in. (12.7 mm) Bend Radius: Repeated 2.0 in. (50.8 mm) Bending Moment 0.2 ft-lb (0.27 N-m) Weight 0.022 lb/ft (0.03 kg/m) Tensile Strength 40 lb (18.2 kg) Flat Plate Crush 15 lb/in. (0.27 kg/mm) Environment Temperature Operating: -40° C ~ 85°C (-40°F~185°F) Storage: -70° C ~ 85°C (-94°F~185°F) Electrical Cut-off Frequency 39 GHz Velocity of Propagation 83% Dielectric Constant 1.45 Time Delay 1.22 nS/ft (4.02 nS/m) Impedance 50 ohms Capacitance 24.5 pF/ft (80.3 p...
- Model #: TEW-L208
