Specifications: Resolution (Maximum): 1920 x 1200
CE Approval: Yes
RoHS: Yes
Connectors: Both units: Video: (1) HD15 F on 7" (17.8-cm) lead;
Interconnect: (1) RJ-45
Power: From the included power supply unit plugged into either the transmitter or receiver: Input: 100–240 VAC, 50–60 Hz;
Output: 12 VDC, 0.6 A
Console Connectors: 4 x Tri-color status LEDs
2 x DisplayPort out (second port is a duplicate)
4 x USB2.0 full speed Type A
Mic in, headset and speaker out
RJ12 serial port
RJ45 and SFP+ ports

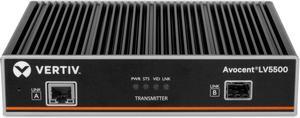

Type: Single head KVM (keyboard, video, mouse) extender
Video Resolution: 4096x2160 @ 60Hz
Part Number: LV5500T-400
Console Connectors: 4 x Tri-color status LEDs
DisplayPort in and local pass-through out
2 x USB2.0 Type B
Line in and out analog audio
RJ12 serial port
RJ45 and SFP+ ports
Console Connectors: 4 x Tri-color status LEDs
2 x DisplayPort out (second port is a duplicate)
4 x USB2.0 full speed Type A
Mic in, headset and speaker out
RJ12 serial port
RJ45 and SFP+ ports
Console Connectors: 4 x Tri-color status LEDs
DisplayPort in and local pass-through out
2 x USB2.0 Type B
Line in and out analog audio
RJ12 serial port
RJ45 and SFP+ ports
