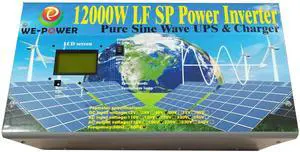

Features: Model: HZ12000
Name: Pure sine wave power inverter
Input voltage: DC 12V/24V
Output voltage : AC 110V
Output frequency: 60Hz
Peaks Power: 12000W
Rated power: 2000W
Weight: 2.9kg
Maximum Active Surge Rating (less than 1 second) :12000W
Maximum AC Current per socket :8.33Ampere
Output Waveform: True/pure sine wave (<3% THD)
Efficiency: 90=%
No Load Current Draw (DC side) <0.6 A
Features: Model: HZ15000
Name: Pure sine wave power inverter
Input voltage: DC 12V/24V for your choice
Output voltage : AC 110V
Output frequency: 60Hz
Peaks Power : 15000W
Rated power: 2500W
Weight: 5.0kg
Maximum Active Surge Rating (less than 1 second) :15000W
Output Waveform: True/pure sine wave (<3% THD)
Efficiency: 90=%
No Load Current Draw (DC side) <0.6 A
Features: - 12V is generally for cars, 24V for trucks, 48V and 60V is generally for electric vehicles.This model is DC 12V or DC 24V for your choice, you can choose the DC Voltage according to your voltage of battery.
- Available Range Of Rated Voltage Of Electrical Appliances: 110~130V
- Safe Range Of Input Voltage:
?12V : 9.8~15V
?24V : 20~28V
?48V : 44~53V
?60V : 58~68V
- 8 Safety Protection Function:
?Reverse polarity protection
?Low input voltage protection
?High input voltage protection
?Over-current protection
?Short circuit protection
?Over temperature protection
?Overload protection
?Internal fuses
