Memory Standard: Support DDR4 2933/2800/2666/2400/2133MHz memory
CPU Type: Central Processor Slot
The main board is equipped with a set of LGA1200 processor slots, which are designed for the 10th generation Intel, Core, Pentium Gold
Designed with Celeron processors.
Maximum Memory Supported: 64GB
PCI Slots: Expansion slot
The main board is equipped with one PCIe 3.0 x16 and two PCIe 3.0 x1 slots to support PCI Express-compliant features
Expansion card.
Memory Standard: Support DDR4 2933/2800/2666/2400/2133MHz memory
CPU Type: Central Processor slot, the main board has an LGA1200 processor slot, this slot is designed for 10th generation Intel Core, Pentium Gold and Celeron processors.
Maximum Memory Supported: 128GB
PCI Slots: The main board is equipped with PCIe 3.0 x16 slots, PCIe 2.0 x1 slots, PCIe x1 slots, and can support PCI Express-compliant feature expansion cards
CPU Type: Supports Gen Intel Core and Pentium Gold/Celeron processors for LGA1200 slots
When using the F SKU processor, onboard graphics output is disabled.
Memory Standard: Support DDR4 2933/2800/2666/2400/2133MHz memory
Audio Chipset: - Rear audio USB Type-C port
ROG SupremeFX7.1 Surround Sound High Fax Sound CODEC
- Support: Jack-detection, multi-channel audio output input, front panel jack specified function
Impedance sensing of front and rear earphone output
- High quality 120dBSNR stereo playback, output and 113dBSNR recording, input
- LED illuminated audio jack supporting up to 32-bit/192kHz playback
Audio features:
- SupremeFX Shielding Technology
- High-quality Japanese audio capacitors
Due to HDA bandwidth limitations, 8-channel audio does not support 32-bit/192kHz.
- Dual OP Amplifiers
- Sonic Radar III
- Sonic Studio III + Sonic Studio Virtual Mixer
CPU Type: Intel Socket 1200for 10 th Gen Intel Core, Pentium Gold and Celeron Processor
Support Intel 14nm CPU
Audio Chipset: 1. Integrated Realtek ® audio chip
2. Support High Definition Audio
3. Support 2/4/5 1/7.1 channels
The audio socket function can be redefined through audio software. To start the 7.1 channel audio output, please enter the audio software settings.
4. Support S/PDIF output

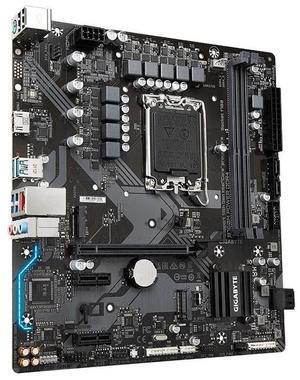

CPU Type: LGA1700 slot for 14th, 13th and 12th generation Intel ® Core ™, Pentium ® Gold and Celeron ® processors
2. L3 cache depends on CPU
Maximum Memory Supported: 96GB
PCI Slots: Based on CPU:
1 PCI-E x16 slot, supporting PCIe 4.0 and x16 operating specifications
Based on chipset:
2 PCI-E x1 slots, supporting PCIe 3.0 and x1 operating specifications
