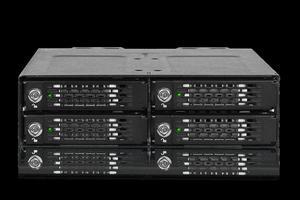

Specifications: Support Drive Size: 4 x M.2 SSD (2230~22110)
Compatible Drive Type: NVMe PCIe Gen 4x4
Number of Drives: 4
Support Drive Length: 30mm - 110mm
Drive Bay: 1 x 5.25" half height bay
Host Interface: 4 x OCuLink(SFF-8612), pin-out defined by SFF-9402 Rev 1.1
Power Input: 2 x 15pin SATA power connector
Transfer Rate: Up to 64Gbps (Depending on SSD Speed)
Support SSD Capacity: No Limitation
Drive Cooling (Active): 2 x 40*40*20mm Fan
Structure / Material: Full Metal
Drive Security: 2 segment key lock
Support Hot-Plug: Yes (host must support hot-plug function)
Drive Activity LED Indication: Drive power: solid green; Drive access: flashing green
M.2 Connector Insertion Rate: 5,000
Humidity: 5%~65% RH
Operating Temperature: 0°C to 60°C (32°F to 140...
Specifications: 4Kn Support: Yes
Hot Swap Capability: Yes
Insertion Rating: 50,000 cycles
Max Drive Capacity: Currently tested with up to 10TB 7200 RPM hard drives
Maximum Data Transfer Rate : 6 Gbps
S.M.A.R.T. Support: Yes
TRIM Support: Yes
Type and Rate: USB 3.0 - 5 Gbit/s / SATA III (6 Gbps)
UASP Support: Yes
Specifications: Chipset ID: JMicron - JMS580
Drive Size: 22mm - M.2 SATA
Supported Drive Height(s): 2242 / 2260 / 2280
Compatible Drive Types: M.2 (SATA, B-Key, NGFF) / M.2 SATA (NGFF, B+M-Key)
Maximum Data Transfer Rate: 6 Gbps
MTBF: 50,000 hours
TRIM Support:Yes
Type and Rate: USB 3.1 Gen 2 - 10 Gbit/s, SATA III (6 Gbps)
UASP Support: Yes
Drive Connectors: 1 - M.2 (SATA, B-Key, NGFF) Receptacle
Host Connectors: 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Male
Note:
Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices.
Specifications: Interface: USB 3.0 & eSATA
Number of Drives: 2
Drive Size: 2.5in & 3.5in
Drive Type: SATA
Drive Installation: Removable
Chipset ID: JMicron - JMS562
Drive Connectors: 2 - SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors:
1 - eSATA (7 pin; Data) Female
1 - USB 3.0 B (9 pin; SuperSpeed) Female
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Type and Rate: SATA III (6 Gbps)
Max Drive Capacity: Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Insertion Rating: 15,000 Cycles
Specifications: MTBF: 30,000
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Drive Connectors: 2 x SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors: 1 x USB Type-B (9 pin) USB 3.0 Female
