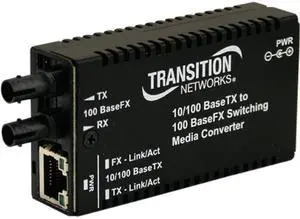

LEDs: PWR (Power)
SDF or LKF (Link Fiber)
SDC or LKC (Link Copper)
RXF (Receive Fiber)
RXC (Receive Copper)
Power Adapter: Power Supply: External AC/DC required:120-240VAC input, 12VDC Output; unregulated, standard
Power Input: 9-14VDC
Power Consumption: 1.75 Watts
Ports: SW1 (TP1): Auto-Negotiation On/Off
SW2 (TP1): 10Mbps or 100Mbps with Auto-Negotiation Off
SW3 (TP1): Half or Full-duplex with Auto-Negotiation Off
SW4 (Fiber1): Half or Full-duplex
SW5: AutoCross On/Off
SW6 (xBFTF10xx-10x): Link Pass Through On/Off
SW7 (TP2): Auto-Negotiation On/Off
SW8 (TP2): 10Mbps or 100Mbps with Auto-Negotation Off
SW9 (TP2): Half or Full-duplex with Auto-Negotiation Off
SW10 (TP2): Monitor On/Off
Transfer Rate: 10/100 Mbps
LEDs: PWR (Power): On = connection to external power
FD (Fiber Duplex): On = Full-duplex; Off = Half-duplex
LACT (Fiber Link/Activity): On = Link; Blinking = Activity
Duplex/Link (Copper): On (Yellow) = Half-duplex Link;Blinking (Yellow) = Half-duplex Activity
On (Green)= Full-duplex Link;Blinking (Green)= Full-duplex Activity
Speed (Copper): Yellow= 10...
