Specifications: Interface: Standalone
Storage: - microSD card
- External USB 2.0 HDD
- NAS
Video Input: HDMI/Composite
Video Output: HDMI
Audio Input:
- HDMI 2.0
- AV IN (connects with the supplied composite A/V cable)
- 3.5 mm (4-pole, CTIA standard)
Audio Output:
- HDMI 2.0
- 3.5 mm (4-pole, CTIA standard)
Max Pass-Through Resolutions: 4Kp60
Max Recording Resolutions: 1080p60
Supported Resolutions (Video Input): 2160p, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Record Format: MPEG 4 (H.264 + AAC) or (H.265 + AAC)
Net Connection: Ethernet (10 Base-T/100 Base-T)
Dimensions (W x D x H): 135 * 71.2 * 28 mm (5.31 * 2.8 * 1.1 in)
Weight: 150 g (5.29 oz)
What's in the box:
EzRecorder 330 (ER330)
HDMI Cable
Power Adapter (AC 100~240V ; DC 12V/1.5A)
Remote Control
IR blaster Cable
3.5mm to RCA Cable
Quick Guide
Distance: 4K@60Hz Up to 230ft/70M via Cat6/7 cable
Resolution Support: Up to 3840x2160 @60Hz
Audio: PCM 7.1 / DTS-HD / Dolby Digital 5.1ch via HDMI and 3.5mm stereo audio from receiver
HDMI: Transmitting unit (TX):
1x 19-pin HDMI, Type A, Female, Input
1x 19-pin HDMI, Type A, Female, Loop out
Receiving unit (RX):
1x 19-pin HDMI, Type A, Female, Output

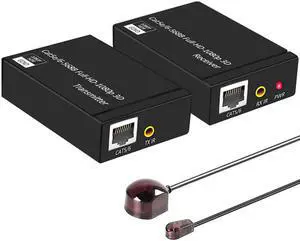

Specifications: NEW 60M HDMI Over Network Extender 1080P HDMI Transmitter by RJ45 CAT5e CAT6 LAN Extensor
Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------165MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100O
UTP
Interface-----RJ45/ IEEE-568B
distance--------CAT5e:50m/164ft,CAT6:60m/ 196ft
Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5? ~ +70?
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
The warranty--------1 year free warranty
Specifications: NEW 60M HDMI Over Network Extender 1080P HDMI Transmitter by RJ45 CAT5e CAT6 LAN Extensor
Video
Standards----------HDMI 1.4; HDCP 1.4
Maximum pixel clock------165MHz
Maximum data rate-------10.2Gbps
Resolution ------1920X1080P@60Hz
Connector-----HDMI-A
Impedance--------100O
UTP
Interface-----RJ45/ IEEE-568B
distance--------CAT5e:50m/164ft,CAT6:60m/ 196ft
Other
Power supply-----The power adapter: DC 5V/1A
Power dissipation------MAX 3W
Temperature-------Operating: -5? ~ +70?
Humidity-------Operating: 5% ~ 90%
Dimension-------94*71*25mm
The warranty--------1 year free warranty
Specifications: Video
Standards: HDMI 1.3; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
Impedance: 100O
IR
Interface: 3.5mm seat
Signal direction: directional
Signal type: Digital
IR frequency: 20~60 KHz ;
UTP
Interface: RJ45/IEEE-568B
Transmission distance: CAT5e:50m/164ft,CAT6:60m/ 196ft
Other
Power supply: The power adapter: DC 5V/1A
Power dissipation: MAX 3W
Temperature: Operating: -5? ~ +70?
Humidity: Operating: 5% ~ 90%
Dimension: 94*71*25mm
The warranty: 1 year free warranty
Specifications: Video
Standards: HDMI 1.3; HDCP 1.2
Maximum pixel clock: 165MHz
Maximum data rate: 6.75Gbps
Resolution: 1920X1080P@60Hz
Connector: HDMI-A
Impedance: 100O
IR
Interface: 3.5mm seat
Signal direction: directional
Signal type: Digital
IR frequency: 20~60 KHz ;
UTP
Interface: RJ45/IEEE-568B
Transmission distance: CAT5e:50m/164ft,CAT6:60m/ 196ft
Other
Power supply: The power adapter: DC 5V/1A
Power dissipation: MAX 3W
Temperature: Operating: -5? ~ +70?
Humidity: Operating: 5% ~ 90%
Dimension: 94*71*25mm
The warranty: 1 year free warranty
