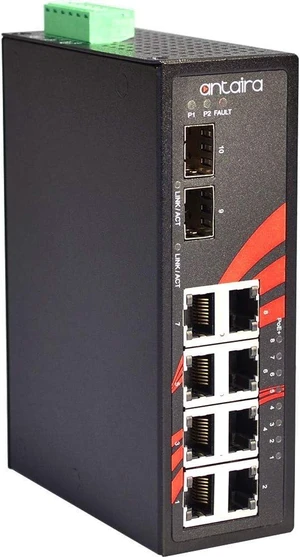

Primary Ports: 8 x Gigabit PoE+ ports
2 x Gigabit SFP slots (1000Base-FX)
6-pin removable terminal block
LED indicators
DIN-Rail mount
Wall mount
Grounding point
Features: • 4 x Gigabit PoE+ ports • 1 x Gigabit port
• 1 x 100/1000Mbps SFP port
• Up to 120W PoE power budget • Hardened IP50 rated metal switch • Extreme operating temperature range of -40° – 75°C (-40° – 167°F) • Dual inputs provide redundant power with overload current protection
• Alarm relay triggered by power failure • 12Gbps switching
Features: • 16 x Gigabit PoE+ ports
• 240W PoE power budget
• 32Gbps switching capacity
• Power supply sold separately (models: TI-S24052, TI-S24048, TI-S48048)
• Hardened IP30 rated metal switch
• Includes DIN-rail and wall mounts
• Operating temperature range of -40° – 75° C (-40° – 167° F)
• Dual redundant power inputs with overload current
Features: • 4 x Gigabit PoE++ ports
• 4 x Gigabit PoE+ ports
• 2 x Gigabit Share ports (SFP or RJ-45)
• 360W power budget
• 20Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-Rail and wall mounts
• Extreme operating temperature range of -40° – 75° C (-40° – 167° F)
• Dual power
Features: • 4 x Gigabit PoE+ ports
• 1 x Gigabit SFP slot
• 120W PoE power budget
• 10Gbps switching capacity
• Hardened IP30 rated metal switch
• Includes DIN-Rail and wall mounts
• Operating temperature range of -20° – 65°C (-4° – 149°F)
• Redundant power inputs with overload current protection
• Alarm output triggered by power
Specifications: Material : 1.2mm SECC Steel
Adjustable Length : 20" ~ 27"
L Shape Bracket : 6"
Supported Cabinet : 20" ~ 26"
Dimension (W x H x D) : 0.281" x 1.06" x 20.0"
Color: Color of Front Bezel: Black
Color of Main Chassis: Black
Material: Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional): 3 x 60mm (bracket DD-FANGUARD-6 required)
Color: Color of Front Bezel: Black
Color of Main Chassis: Black
Material: Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Color: Color of Front Bezel: Black
Color of Main Chassis: Black
Material: Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel (Japan Made)
Cooling (Optional): 1 x 60mm, 3 x 80mm (bracket DD-FANGUARD-8 required)
Specifications: Controller: ASPEED AST2500
Feature: Base Board Management Controller (IPMI2.0 with iKVM support)
VGA (1920x1200@60Hz 32bpp)
Memory: 2 SPI flash ROM 32MB
1 DDR4 SDRAM 4Gb
Physical Status
Form Factor: Low profile PCIe add-in-card
Dimensions: 168.45 x 68.9 mm
I/O
Upstream interface: PCI Express2.0 x1
External: 1 RJ45 via Realtek RTL8211E for dedicated IPMI LAN (10/100/1000 Mbps), 1 DB-15 (VGA)
Internal connectors: 2 SMBus header
1 x PMBus header
1 x IPMB header
1 x BMC reset
1 x BMC debug header
1 x V BIOS or system BIOS ROM
2 x BMC ROM
1 x Dual ROM select header
1 x TPM (13-pin, LPC)
1 x LPC header (13-pin)
2 x Fan header
1 x USB2.0 (5-pin): KVM and standby power
1 x header (18-pin): GPIO, NCSI
1 x header (18-pin): case open, system fail, GPIO, SMBus, PECI, voltage monitoring
1 x COM port (9-pin)
1 x micro-SD connector
1 x ...
