Partaker AMD Ryzen Embedded Mini PC, Fanless Computer, R2314, B4, 2 x LAN, 2 x HDMI 2.0, 4 x RS232, 2 x RS485, DC 12-24V, 8G RAM, 256G SSD
- AMD Ryzen R2314 Processor Quad-core, 2.1GHz base / 3.5GHz turbo, Zen+ architecture, built for industrial and edge computing workloads with low power consumption.
- Fanless & Rugged Design All-aluminum passive cooling chassis enables silent, maintenancefree 24/7 operation, ideal for dusty, hot, or noisy environments.
- 6× COM Ports (4× RS232 + 2× RS485) Ready for industrial automation, machinery control, PLCs, sensors, and legacy serial device connectivity.
- Dual 4K Video Outputs & Dual GbE Two independent digital video outputs (4K@60Hz) for digital signage or HMI; two Gigabit Ethernet ports for network security and IoT gateways.
- Wide Voltage & Wide Temperature DC 12V24V input for vehicles and factories; operates from -20°C to +60°C with industrial SSD, plus TPM 2.0 security encryption.
- Triple Expansion Options Mini PCIe (mSATA), M.2 2230 (WiFi/BT), and M.2 3052 (4G/5G with SIM slot) for flexible upgrades and wireless connectivity.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model Number: Partaker B4
Processor: AMD Ryzen Embedded R2314 (4core 4-thread, base 2.1 GHz, turbo boost 3.5 GHz)
Architecture: Zen + Micro architecture
Memory: 2 x DDR4 2400MHz SODIMM memory slots, max 64 GB.
Storage: 1 x MINI PCIe (MSATA SSD) slot, 1* 2.5 -inch HDD/SSD
Display chip: AMD Radeon Graphics
Display: 2 x HDMI 2.0 Resolution up to 4096x2160 @ 60Hz
Lan Port: 2 x RTL8111H 10/100/1000M Gigabit Ethernet cards

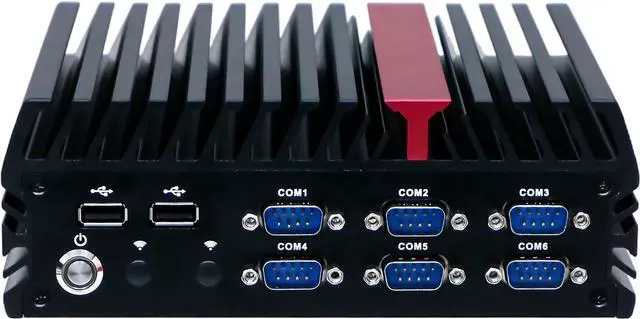

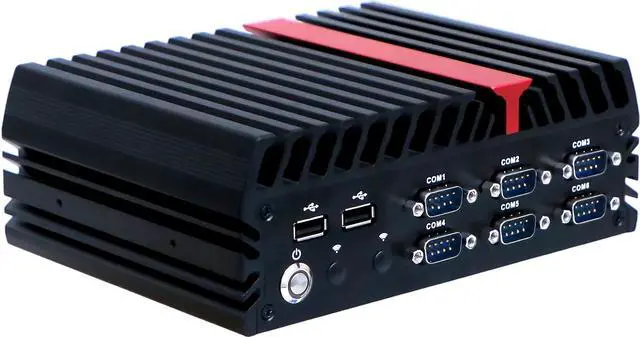

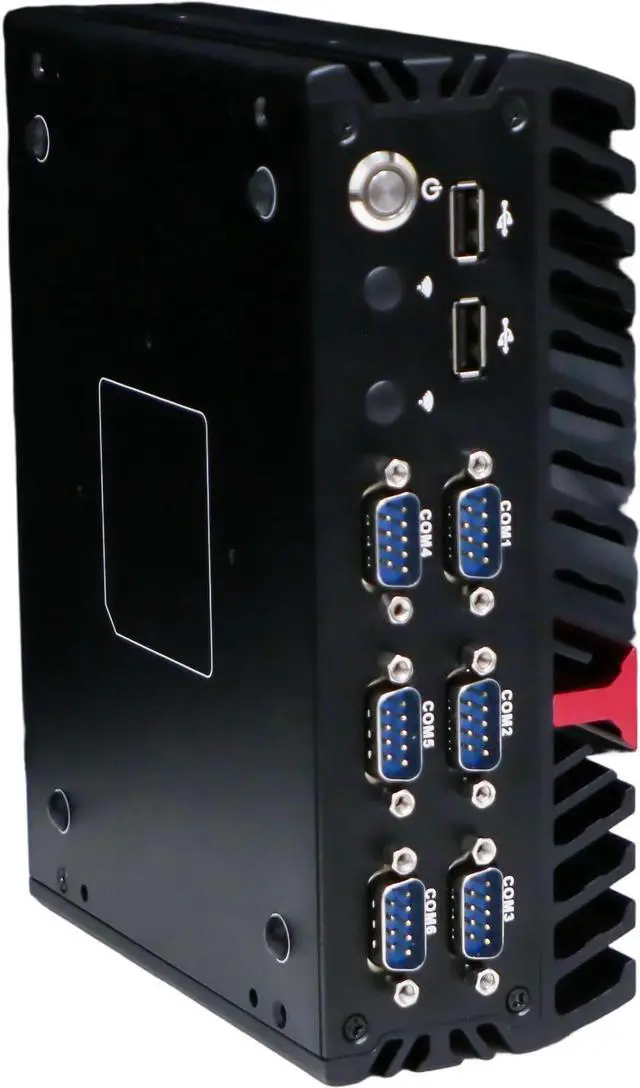

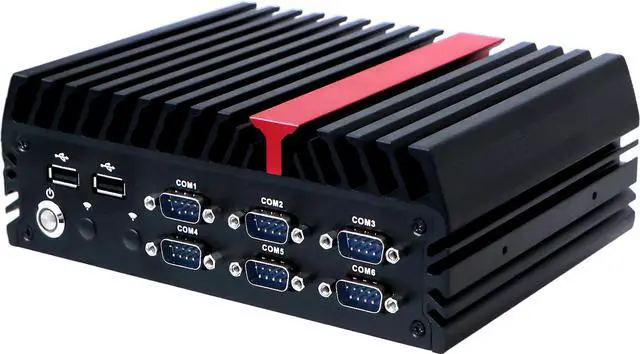

Front I/O: 1 x power switch, 2 x USB 2.0, 6 x COM (COM 14 are RS232, COM 56 are RS485)

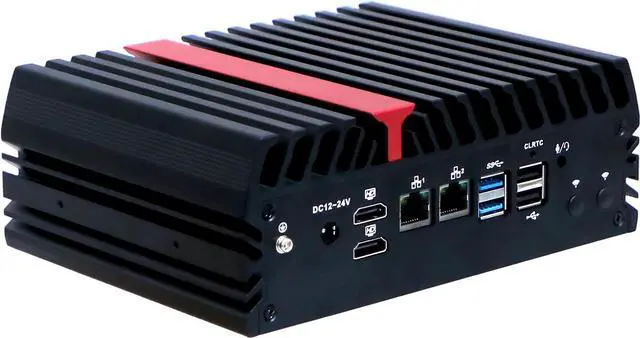

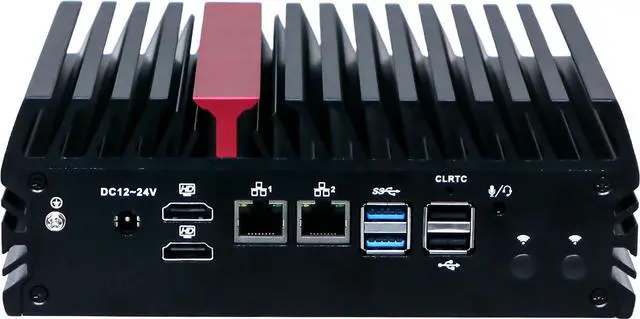

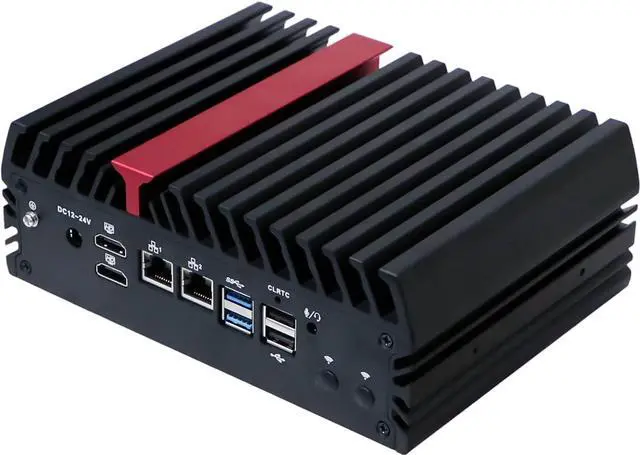

Rear I/O: 1 x DC, 2 x HDMI, 2 x RJ45 network ports, 2 x USB 3.2, 2 USB 2.0, 1 x MIC/SPK
Expansion: 1 x MINI PCIe slot (support MSATA SSD)
1 x M. 2 2230 E-key slot (PCIe & USB, with Wi-Fi 5/Wi-Fi 6 & BT)
1 x M. 2 3052 B-key slot (support USB 3.0, 4G/5G), with built-in Micro-SIM card slot
Scalable interface (not included in standard shipment): 8 GPIO channels (Contact us and pay extra if need)
More Function: Power-on startup, scheduled startup, network wake-up, PXE boot, watchdog (level 0255), TPM 2.0 security encryption
Input Voltage: DC 12V - 24V input
Size: 186 * 140 * 66 mm
Weight: 1.58KG s
Installation: Wall mounted (standard), Din rail mounted (optional), Desktop (default)
Work Temp: 0°C to +40°C (Commercial HDD), -20°C to +60°C (Industrial SSD), surface air flow.
Humidity: 0% to 95% non-condensing
System Support: Windows 11, Linux Ubuntu
Material: High-quality all aluminum, surface anodic oxidation
Color: Metal gray (Any color can be customized)
Application: Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, etc.
Processor: AMD Ryzen Embedded R2314 (4core 4-thread, base 2.1 GHz, turbo boost 3.5 GHz)
Architecture: Zen + Micro architecture
Memory: 2 x DDR4 2400MHz SODIMM memory slots, max 64 GB.
Storage: 1 x MINI PCIe (MSATA SSD) slot, 1* 2.5 -inch HDD/SSD
Display chip: AMD Radeon Graphics
Display: 2 x HDMI 2.0 Resolution up to 4096x2160 @ 60Hz
Lan Port: 2 x RTL8111H 10/100/1000M Gigabit Ethernet cards
Front I/O: 1 x power switch, 2 x USB 2.0, 6 x COM (COM 14 are RS232, COM 56 are RS485)
Rear I/O: 1 x DC, 2 x HDMI, 2 x RJ45 network ports, 2 x USB 3.2, 2 USB 2.0, 1 x MIC/SPK
Expansion: 1 x MINI PCIe slot (support MSATA SSD)
1 x M. 2 2230 E-key slot (PCIe & USB, with Wi-Fi 5/Wi-Fi 6 & BT)
1 x M. 2 3052 B-key slot (support USB 3.0, 4G/5G), with built-in Micro-SIM card slot
Scalable interface (not included in standard shipment): 8 GPIO channels (Contact us and pay extra if need)
More Function: Power-on startup, scheduled startup, network wake-up, PXE boot, watchdog (level 0255), TPM 2.0 security encryption
Input Voltage: DC 12V - 24V input
Size: 186 * 140 * 66 mm
Weight: 1.58KG s
Installation: Wall mounted (standard), Din rail mounted (optional), Desktop (default)
Work Temp: 0°C to +40°C (Commercial HDD), -20°C to +60°C (Industrial SSD), surface air flow.
Humidity: 0% to 95% non-condensing
System Support: Windows 11, Linux Ubuntu
Material: High-quality all aluminum, surface anodic oxidation
Color: Metal gray (Any color can be customized)
Application: Industrial control, industrial automation, robotics, IoT gateways, edge computing, machine vision, AGVs/AMRs, etc.
