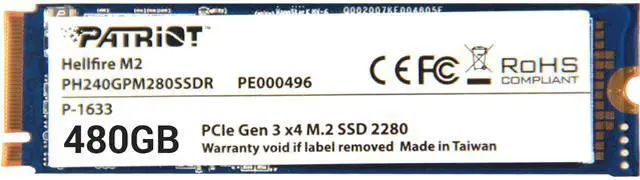

Patriot Hellfire M.2 2280 480GB PCI-Express 3.0 x4 Internal Solid State Drive (SSD) PH480GPM280SSDR

Be the first to review this product...
  • M.2 2280
  • 480GB
  • PCI-Express 3.0 x4
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Patriot Memory PH480GPM280SSDR

Model
Brand Patriot
Series Hellfire
Model PH480GPM280SSDR
Device Type Internal Solid State Drive (SSD)
Used For Consumer
Details
Form Factor M.2 2280
Capacity 480GB
Interface PCI-Express 3.0 x4
Controller Phison 5007
Cache 256MB
Performance
Max Sequential Read Up to 3000 MBps (ATTO)
Up to 2700 MBps (CDM)
Max Sequential Write Up to 2200 MBps (ATTO)
Up to 1500 MBps (CDM)
4KB Random Read Up to 116,000 IOPS
4KB Random Write Up to 210,000 IOPS
MTBF 2,000,000 hours
HeatSink without HeatSink
Features
Features The Patriot Hellfire M.2 Next Generation Form Factor (NGFF) SSD is the perfect solution for consumers and professionals looking to get blazingly fast start up times and instantaneous access to their data for better productivity and reliability from their SSD. Powered by the Phison 5007 controller, the Hellfire M.2 uses an ultra-fast PCIe 3.0 x 4 (up to 32Gb/s) NVMe 1.2 interface to deliver read and write speeds of up to 3,000 MB/s (read) and 2,200 MB/s (write) that are up to 4x faster than SATA SSDs.

To ensure the Patriot Hellfire M.2 SSD provides rock-solid performance, static and advanced wear-leveling, advanced garbage collection, TRIM support, bad block management and S.M.A.R.T technologies are built in. At 22mm wide by 80mm tall (2280), the Hellfire M.2 is the best solution for all-in-one PC kits, notebook upgrades, or small form-factor, high-performance gaming PC builds.
Environmental
Operating Temperature 0°C ~ +70°C
Dimensions & Weight
Height 3.80mm
Width 22.00mm
Depth 80.00mm
Weight 0.32 oz.
Additional Information
First Listed on Newegg November 21, 2016

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
