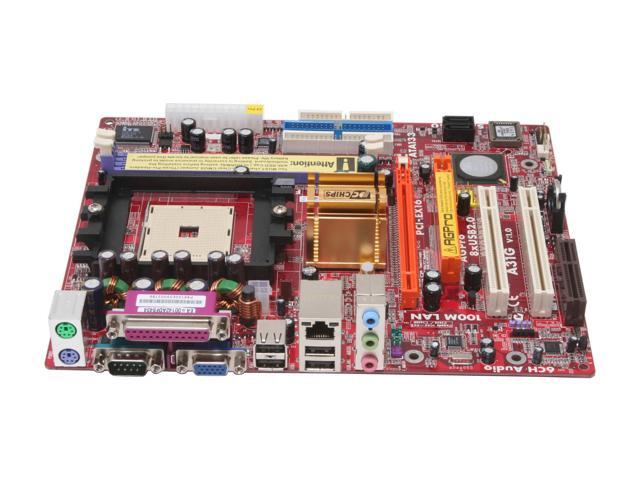

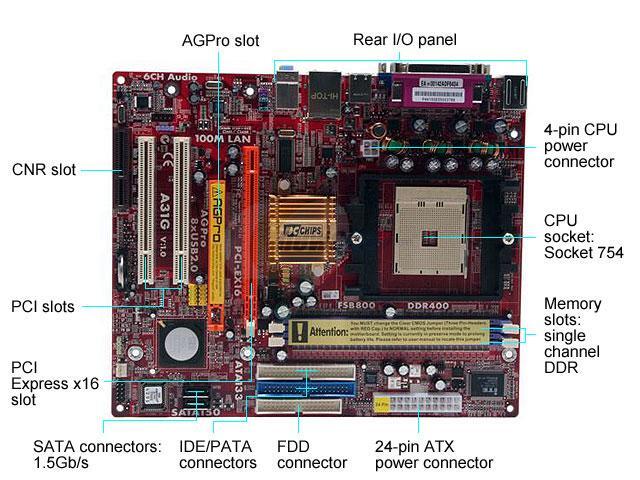

PC CHIPS A31G V1.0 754 SiS 761 GX Micro ATX AMD Motherboard

OUT OF STOCK.
  • SiS 761 GX
  • Athlon 64 / Sempron
  • DDR 400
Specs
Reviews

Learn more about the PCCHIPS A31G V1.0

Model
Brand PC CHIPS
Model A31G V1.0
Supported CPU
CPU Socket Type 754
CPU Type Athlon 64 / Sempron
FSB 800 MHz
Chipsets
Chipset SiS 761 GX
South Bridge SiS 965L
Memory
Number of Memory Slots 2×184pin
Memory Standard DDR 400
Maximum Memory Supported 2GB
Expansion Slots
AGP Slots 1 x AGPro
PCI Express x16 1 x PCI Express x16
PCI Slots 2 x PCI Slots
Other Slots 1 x CNR
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA 1.5Gb/s 2 x SATA 1.5 Gb/s
SATA RAID 0/1
Onboard Video
Onboard Video Chipset SiS Mirage1 Graphics
Onboard Audio
Audio Chipset ADI AD1888
Audio Channels 6 Channels
Onboard LAN
LAN Chipset Realtek 8201CL PHY
Max LAN Speed 10/100Mbps
Rear Panel Ports
PS/2 2
COM 1
LPT 1
Video Ports D-Sub
USB 1.1/2.0 4 x USB 2.0
Audio Ports 3 Ports
Internal I/O Connectors
Onboard USB 2 x USB 2.0 connectors support 4 ports
Physical Spec
Form Factor Micro ATX
Dimensions (W x L) 9.6" x 8.6"
Power Pin 24 Pin

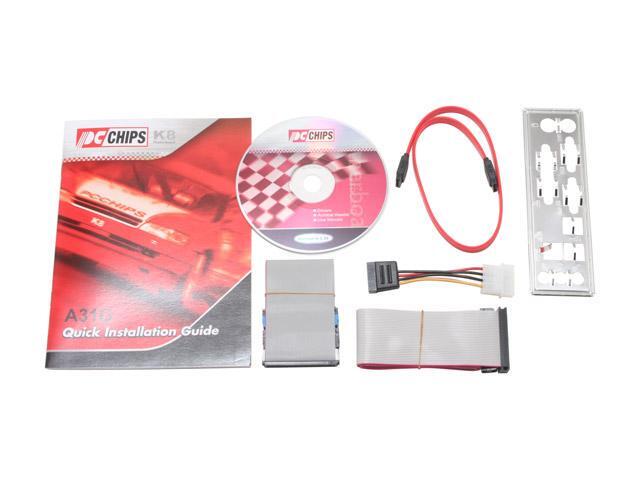

Packaging
Package Contents A31G V1.0
User Manual
Driver Disk
Rear I/O Panel Shield
IDE/PATA Cable
FDD Cable
SATA Cable
4-pin to SATA Power Cable
Additional Information
Date First Available January 25, 2006
