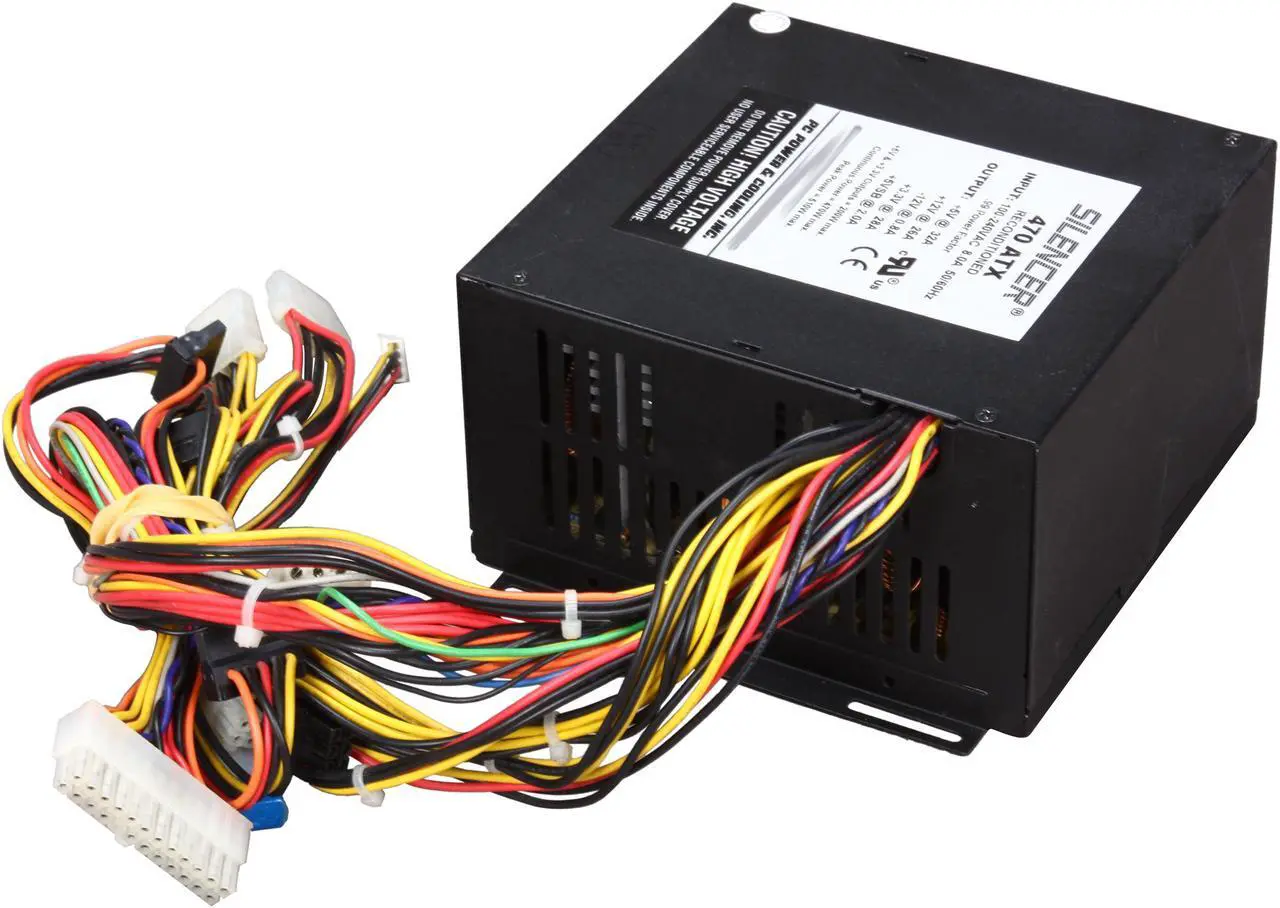

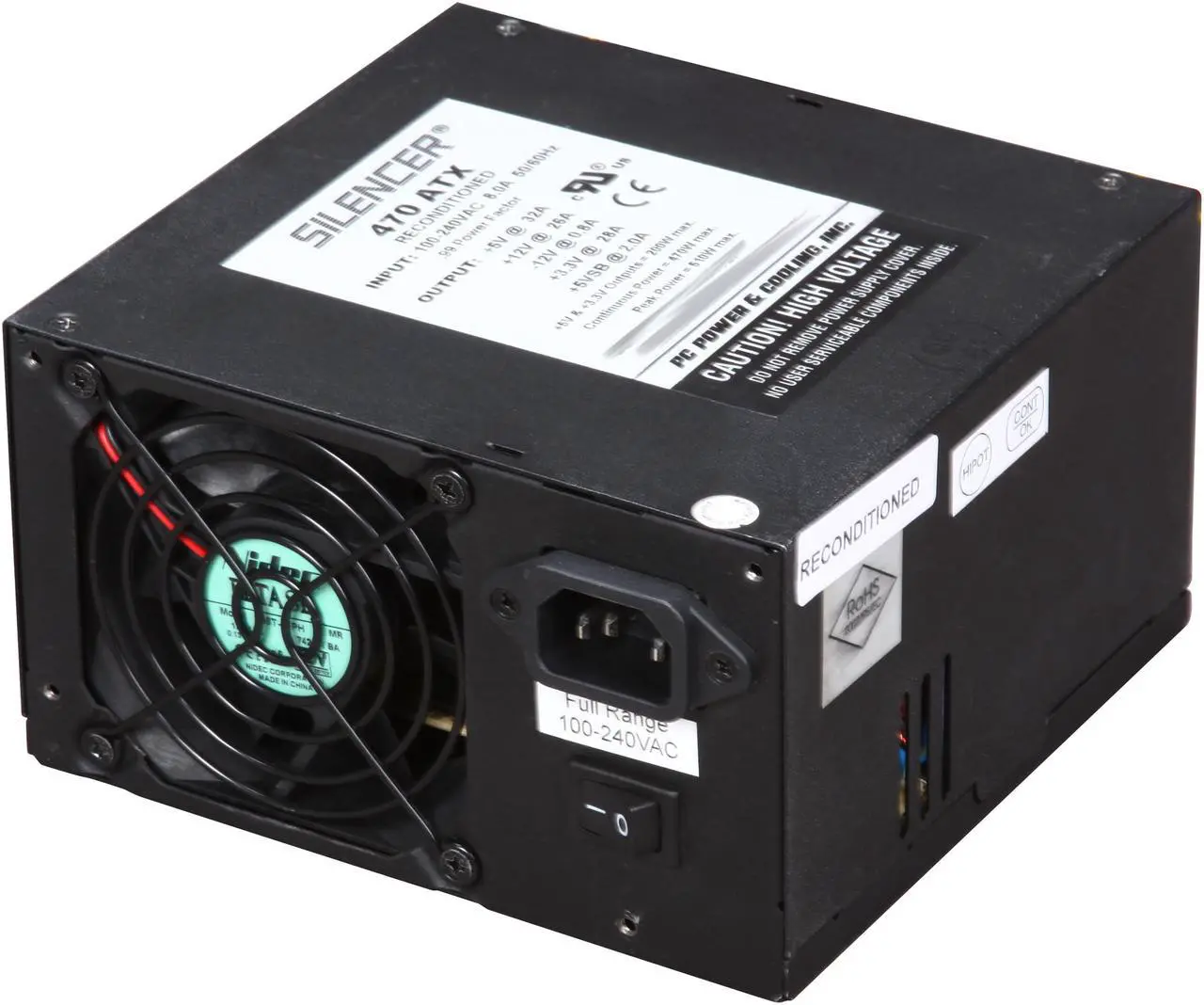

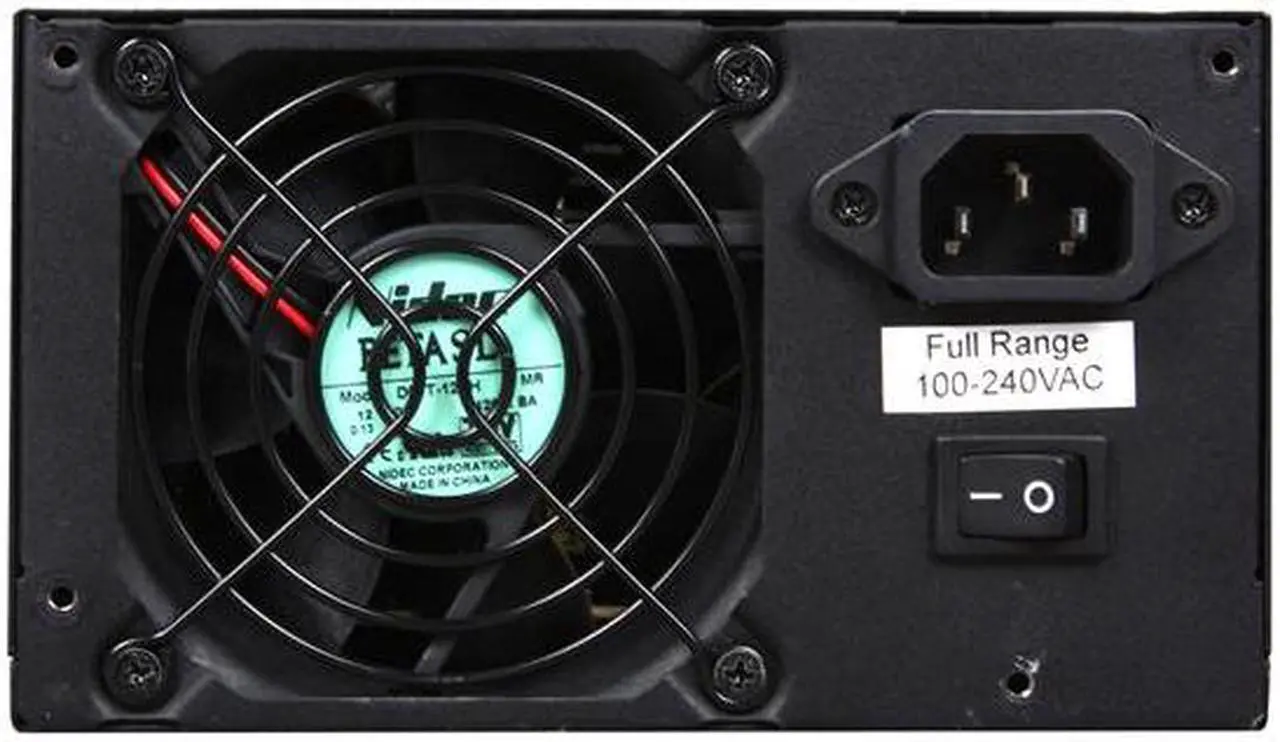

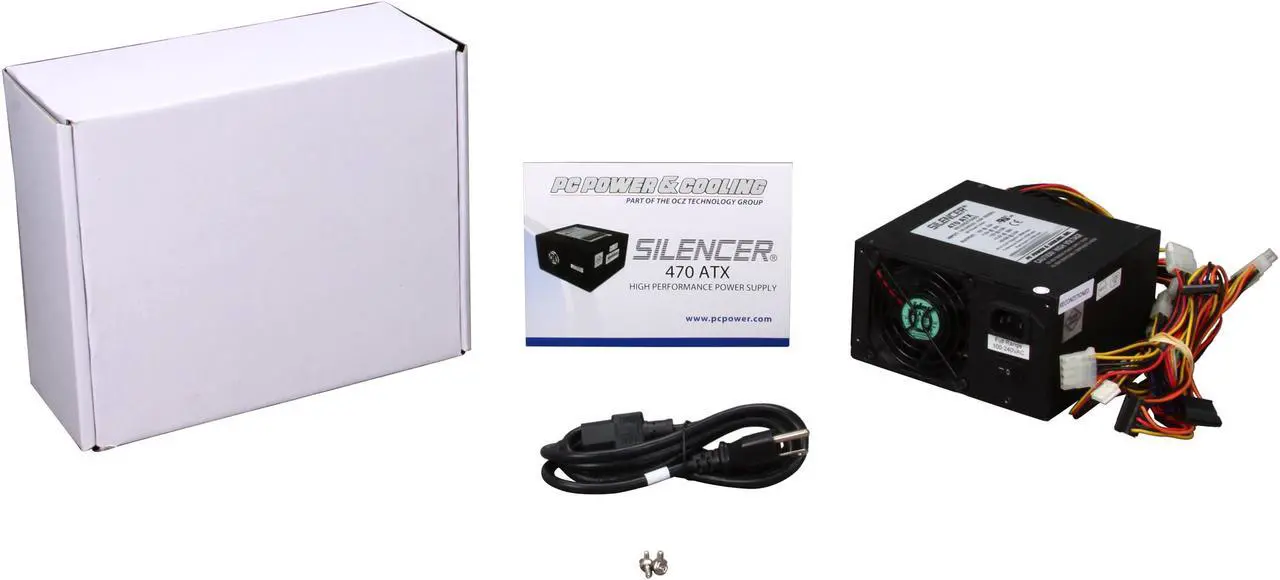

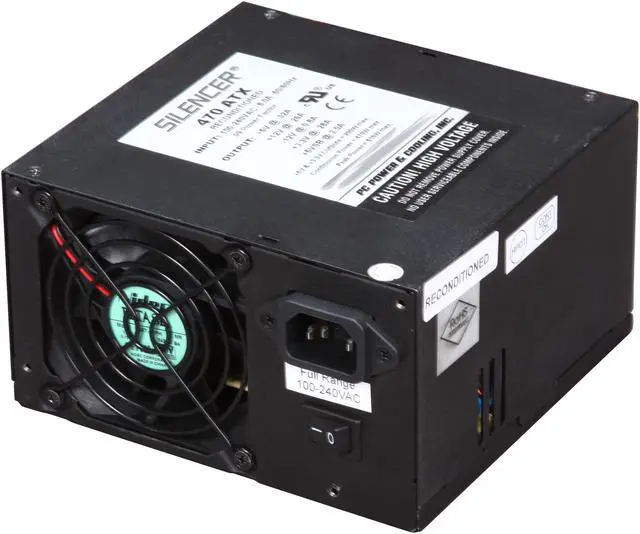

PC Power and Cooling S47ATX-B 470W ATX12V v2.2 Power Supply
REFURBISHED Product Type
OUT OF STOCK.
- ATX12V v2.2
- 90 - 264 V 47 - 63 Hz
- +3.3@28A, +5V@32A, +12V@26A, -12V@0.8A, +5VSB@2.0A
Specs
Reviews
Learn more about the PC Power and Cooling S47ATX-B
| Brand | PC Power and Cooling |
|---|---|
| Model | S47ATX-B |
| Type | ATX12V v2.2 |
|---|---|
| Maximum Power | 470W |
| Fans | 1 |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 1 x 6-Pin |
| SATA Power Connector | 3 |
| Modular | No |
| Hold-up Time | 16ms min. |
| Efficiency | 74% |
| Over Voltage Protection | +3.3V, +5V, +12V |
| Input Voltage | 90 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Input Current | 8A |

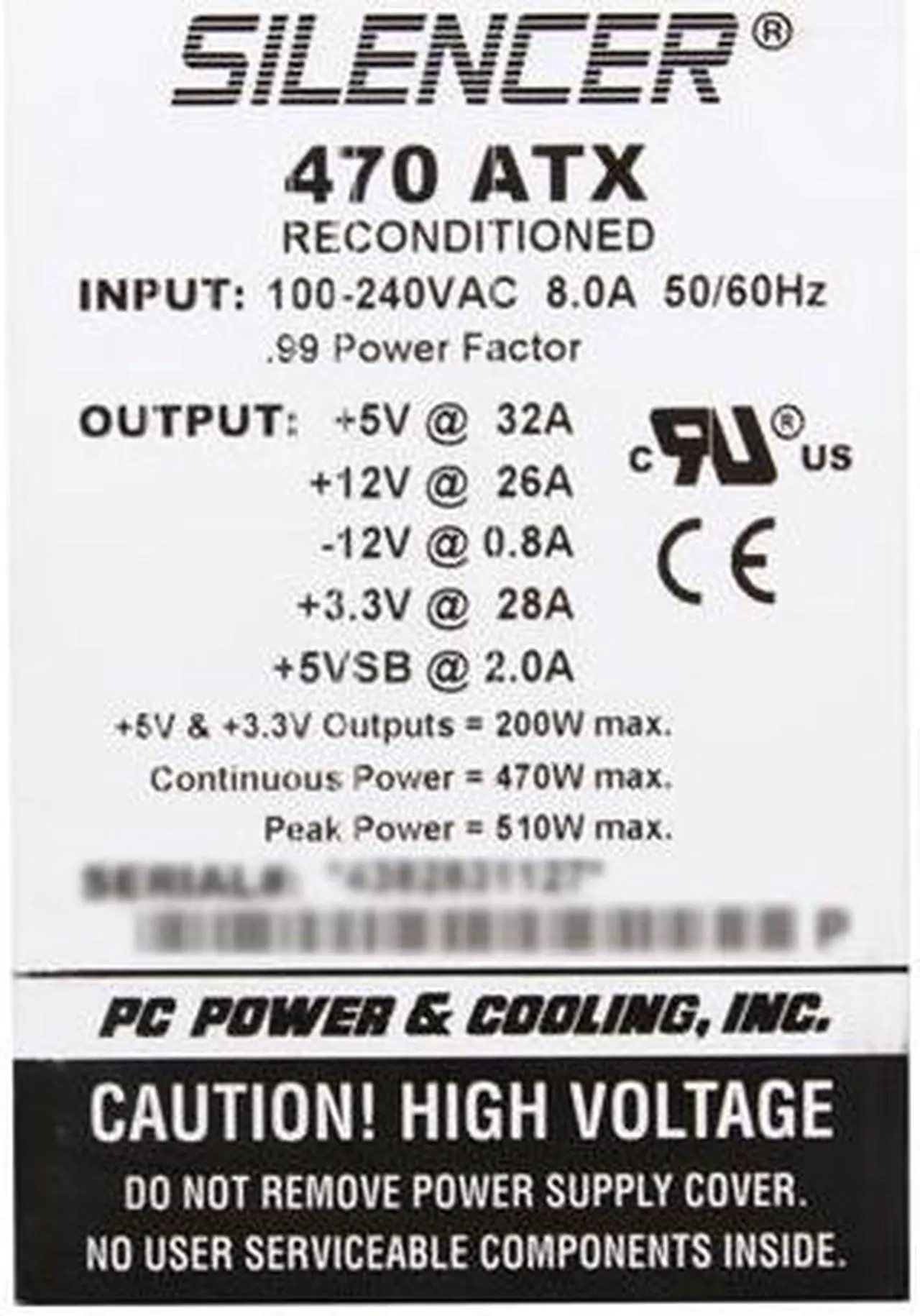

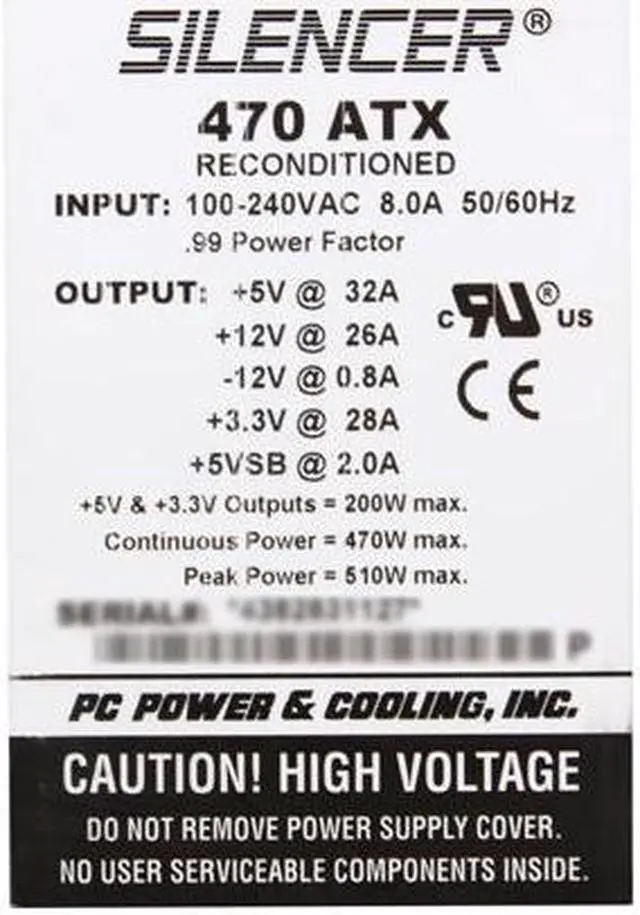

| Output | +3.3@28A, +5V@32A, +12V@26A, -12V@0.8A, +5VSB@2.0A |
| MTBF | >100,000 Hours |
| Approvals | UL, cUL, CE, CB, RoHS, FCC-B |

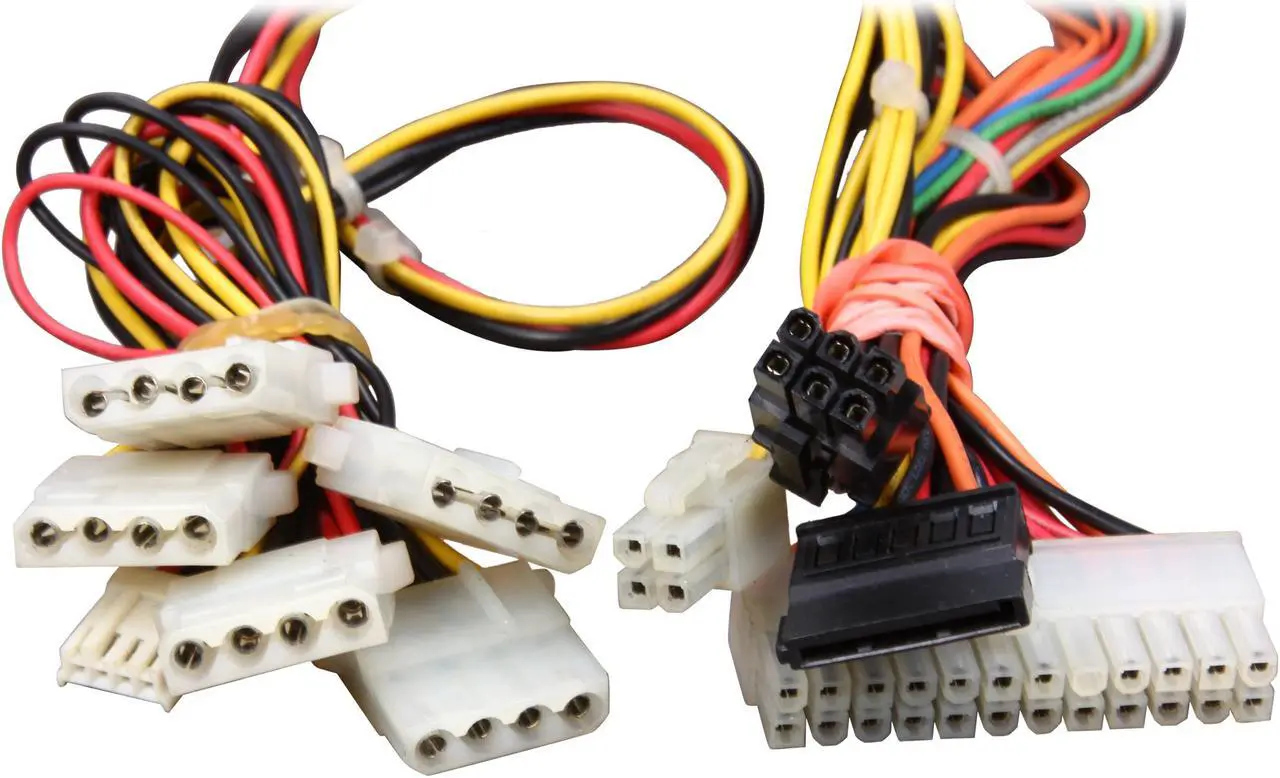

| Connectors | 1 x Main connector (20+4Pin) 1 x 12V(4Pin) 6 x peripheral 3 x SATA 1 x PCI-E |
|---|---|
| Features | 470W @ 40C (520W Peak) Reduces Noise by up to 90% ATX12V (2.2) and Backwards Compatible 0.99 Power Factor Correction +12VDC @ 30A 20-pin / 24-pin M/B Connector Automatic Fan Speed Control Temperature: 0° - 40°C Humidity: 10% - 90% RH Fan Type: 22 - 34 CFM ball-bearing Noise: 20 - 35 dBA |
| Date First Available | January 10, 2011 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by Newegg.com's Standard Return Policy
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-866-925-3027
- Support Email: support@firepower-technology.com
- Support Website
- View other products from PC Power and Cooling
LOADING...
- Dark Mode
- Feedback
- To Top
Pros: PC Power and Cooling quality! I sent this unit back to the manufacturer believing it to be DOA. However, the company ran a battery of tests on the PSU and found it to be in perfect working order, and even attempted to call me to let me know what they had found out about the unit! Turnaround time was sixteen days from the time I shipped the PSU back to the company to the time it arrived back at my front door. Awesome!
Cons: None.
Overall Review: PC Power and Cooling has always done right by me in the quality of their products. I will be doing business with this company in the future.
