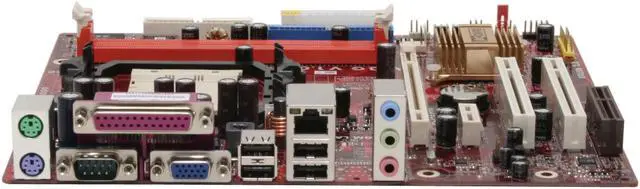

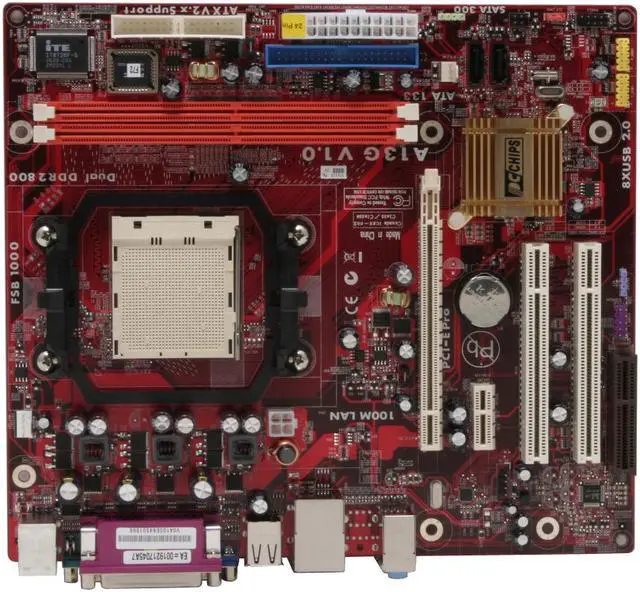

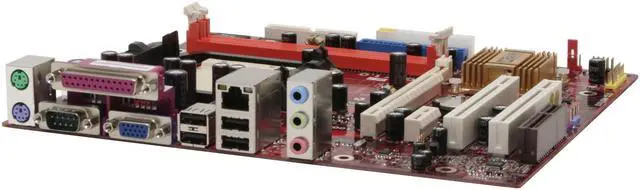

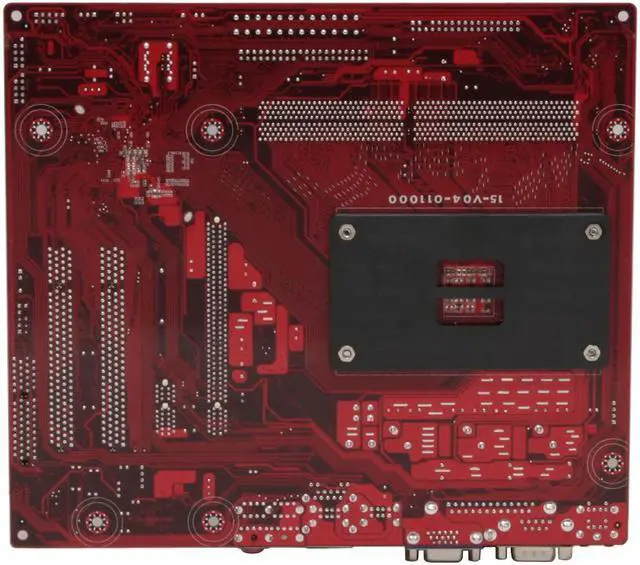

PC CHIPS A13G V1.0 AM2 NVIDIA GeForce 6100 Micro ATX AMD Motherboard
OPEN BOX Product Type
- NVIDIA GeForce 6100
- Athlon 64 X2 / Athlon 64 FX / Athlon 64
- DDR2 800
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PCCHIPS A13G V1.0
| Brand | PC CHIPS |
|---|---|
| Model | A13G V1.0 |
| CPU Socket Type | AM2 |
|---|---|
| CPU Type | Athlon 64 X2 / Athlon 64 FX / Athlon 64 |
| Chipset | NVIDIA GeForce 6100 |
|---|---|
| South Bridge | NVIDIA nForce 400 |
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR2 800 |
| Maximum Memory Supported | 4GB |
| Channel Supported | Dual Channel |
| PCI Express x16 | 1 x PCI Express Pro slot (PCI Express x16 compatible) |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| Other Slots | 1 x Azalia CNR |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC660 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom AC131 |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 1 x COM (Serial Port) / 1 x D-Sub / 1 x LPT (Parallel Port) / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 connectors support 4 ports |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |
| Power Pin | 24 Pin |
| Features | (Due to the DRAM maximum size is 2GB at present, the memory maximum size we have tested is 4GB) |
|---|
| First Listed on Newegg | January 30, 2008 |
|---|
