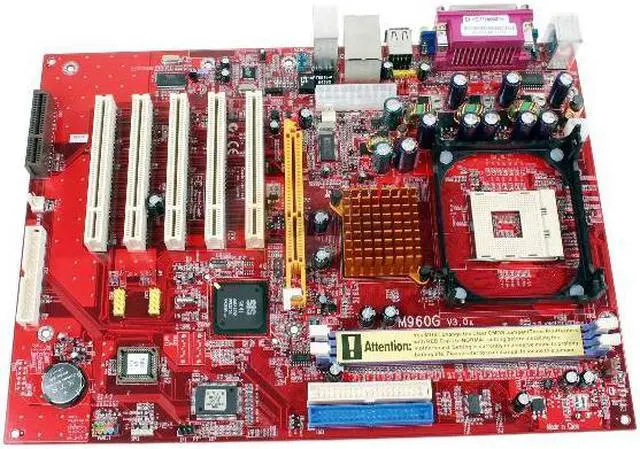

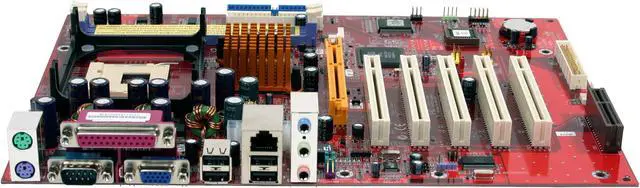

PC CHIPS M-960G Socket 478 SiS 661FX ATX Intel Motherboard
- SiS 661FX
- Pentium 4 Prescott / Celeron D
- DDR 400
Specs
Reviews (17)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the PCCHIPS M-960G
| Brand | PC CHIPS |
|---|---|
| Model | M-960G |
| CPU Socket Type | Socket 478 |
|---|---|
| CPU Type | Pentium 4 Prescott / Celeron D |
| FSB | 800/533 MHz |
| Supported CPU Technologies | Hyper-Threading Technology |
| Chipset | SiS 661FX |
|---|---|
| South Bridge | SiS 964L |
| Onboard Video Chipset | SiS Mirage Graphics |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 400 |
| Maximum Memory Supported | 2GB |
| AGP Slots | 1 x AGP 4X / 8X |
|---|---|
| PCI Express x16 | None |
| PCI Slots | 5 x PCI Slots |
| Other Slots | 1 x CNR |
| PATA | 2 x ATA100 4 Dev. Max |
|---|
| Audio Chipset | C-Media CMI9761A |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Realtek 8201BL PHY |
|---|---|
| Max LAN Speed | 100Mbps |
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 8.7" |
| Features | AMI 2Mb Flash ROM Supports Plug and Play 1.0A, APM 1.2, Multi Boot, DMI Full support for ACPI revision 1.0 specification |
|---|
| First Listed on Newegg | December 10, 2004 |
|---|
