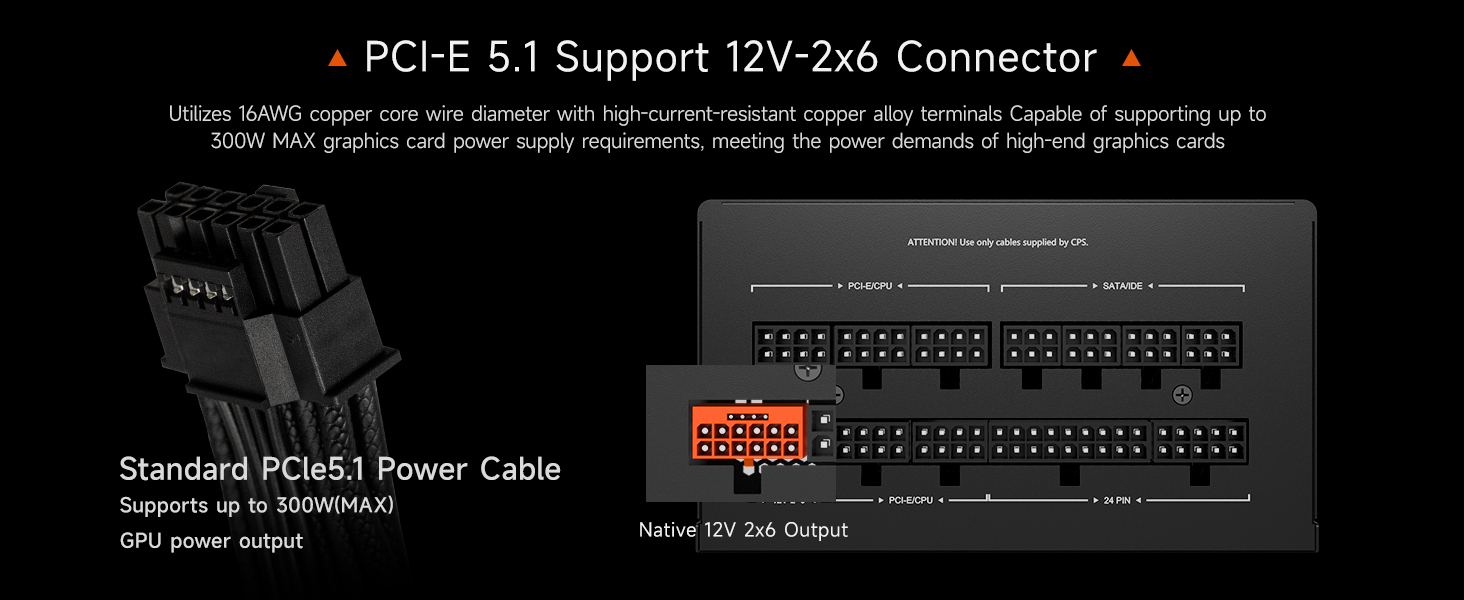

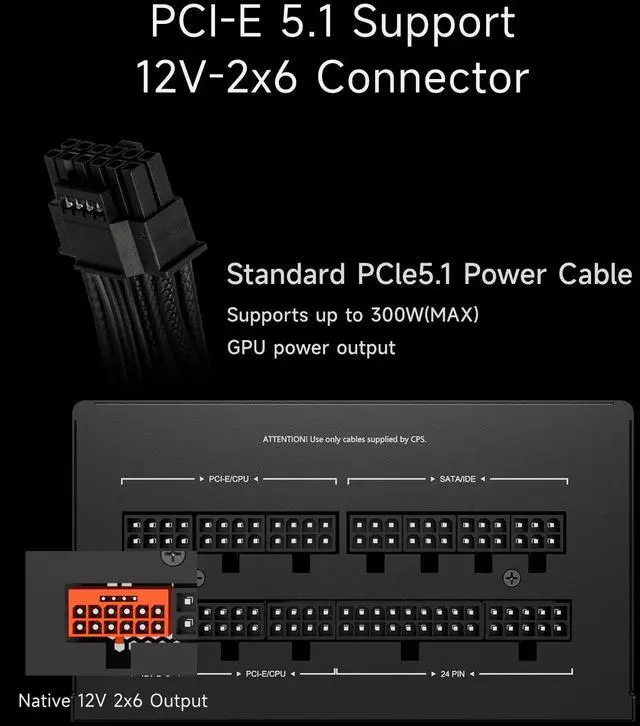

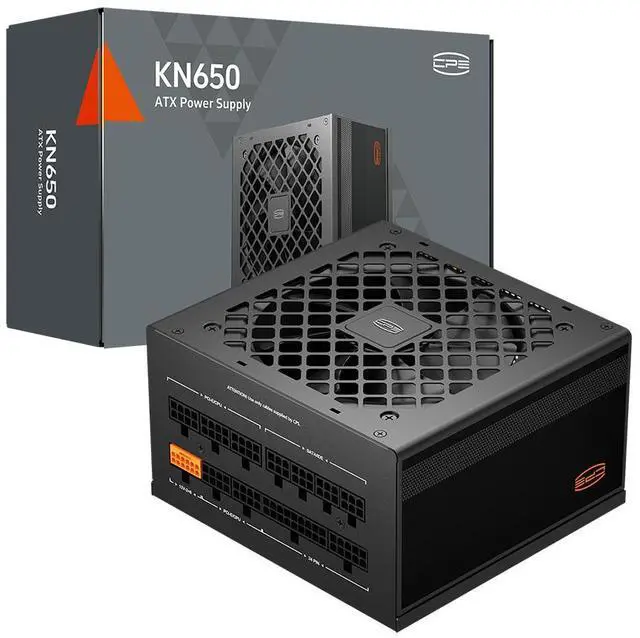

PCCOOLER CPS KN650 Fully Modular Power Supply, 80 PLUS Gold 650W PSU, Native 12V-2x6 Connector, ATX 3.1 & PCIe 5.1 Ready, Dual CPU Power Cables, 105°C Rated Japanese Capacitors, P3-KN650-G1F
Learn more about the PCCOOLER P3-KN650-G1F
General
Brand
PCCOOLER
Series
KN
Model
P3-KN650-G1F
Part Number
P3-KN650-G1FFBK0-US
Details
Color
Black
Type
ATX 3.1 Compatible
Maximum Power
650 W
Fans

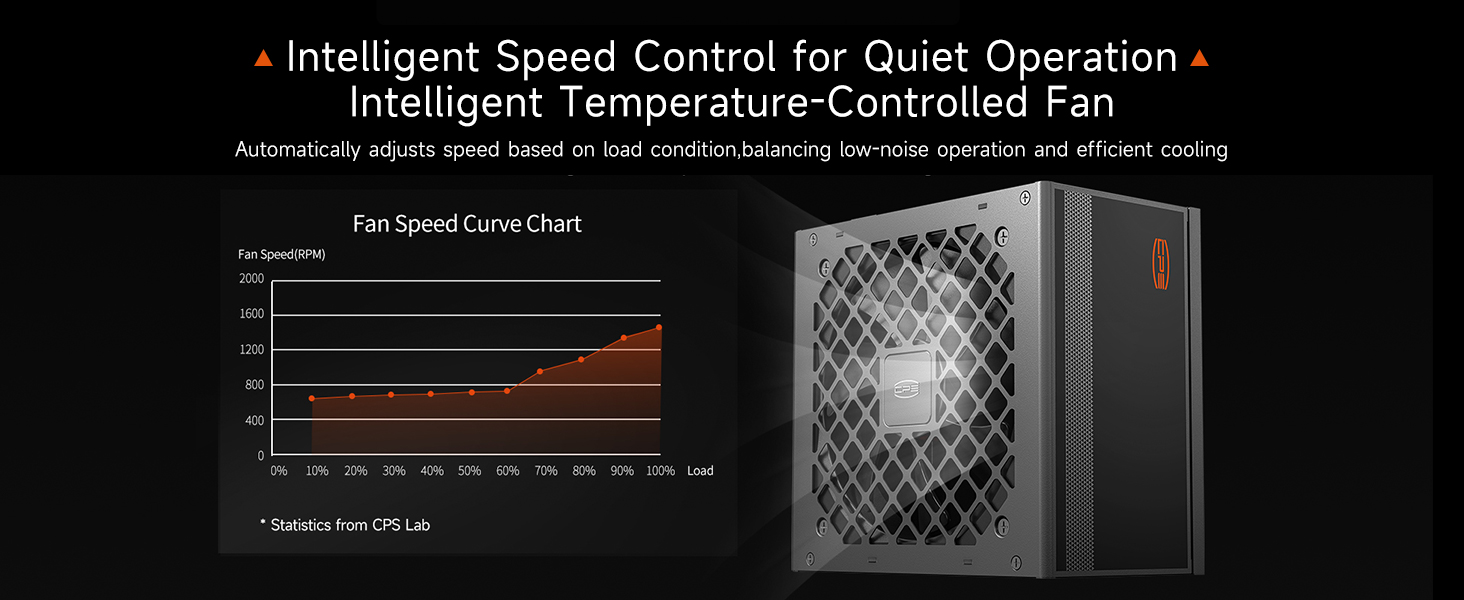

1 x 120 mm
PFC

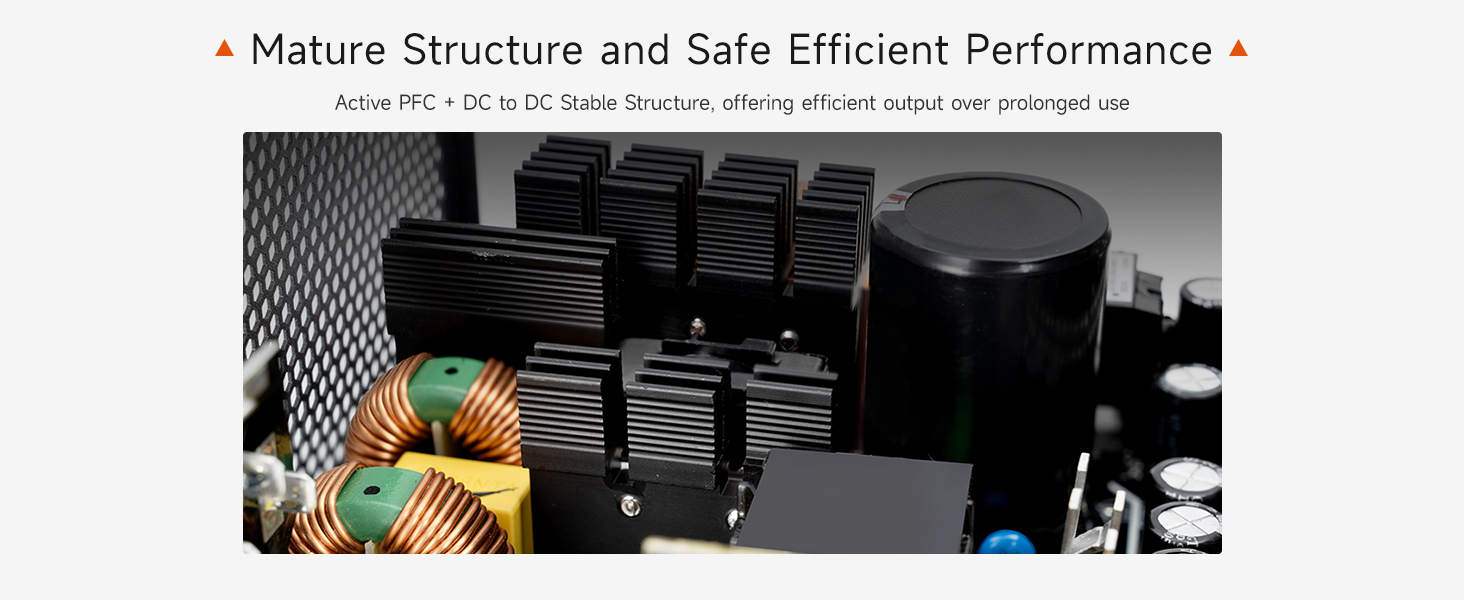

Active
Main Connector
20+4Pin
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
5
Max PSU Length
150 mm
Modular
Full Modular
Hold-up Time
=16ms (80% Load)
Efficiency
=90% Under Typical Load (50% Loading)
Energy-Efficient

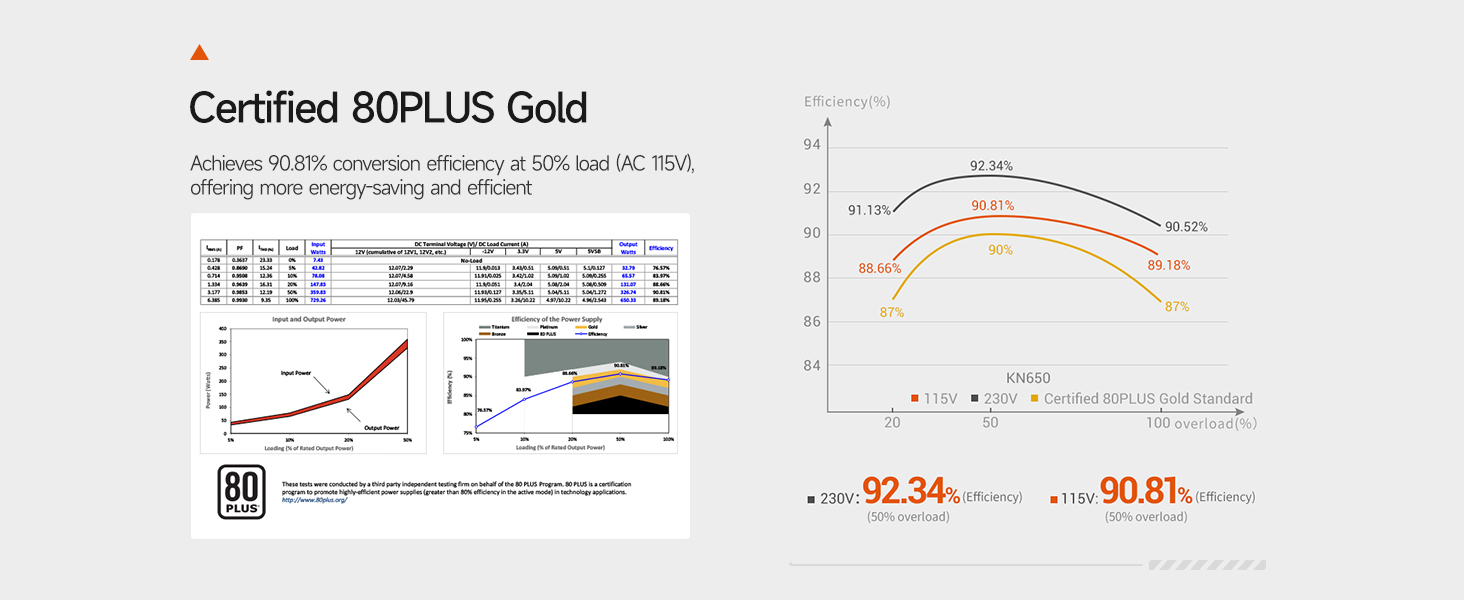

80 PLUS GOLD Certified
Protection
OVP/UVP/SCP/OPP/OTP/OCP/SPD
Input Voltage
100 - 240 V
MTBF
>100,000 Hours
Connectors

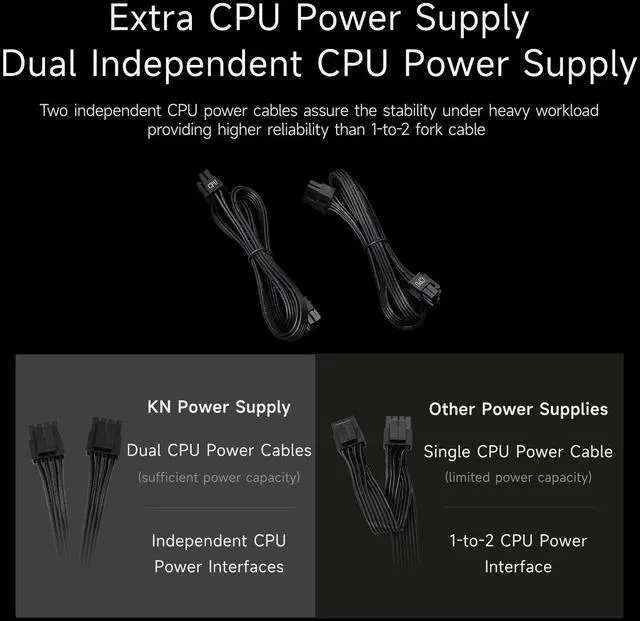

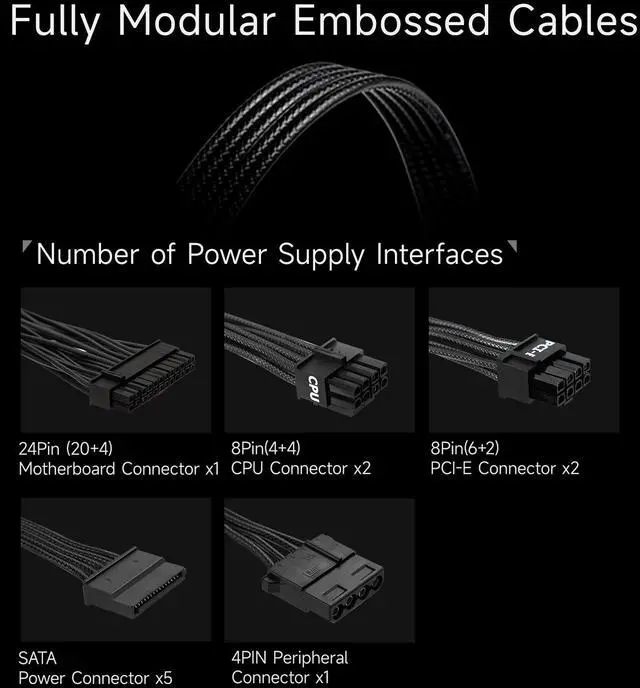

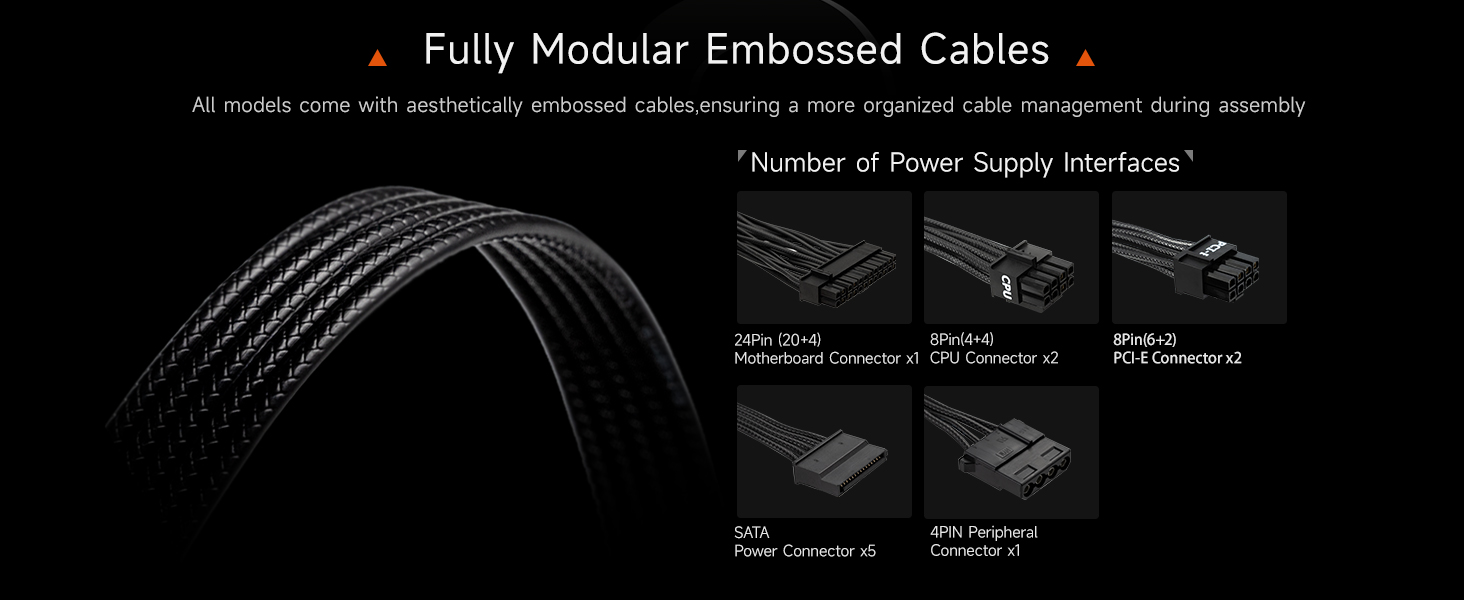

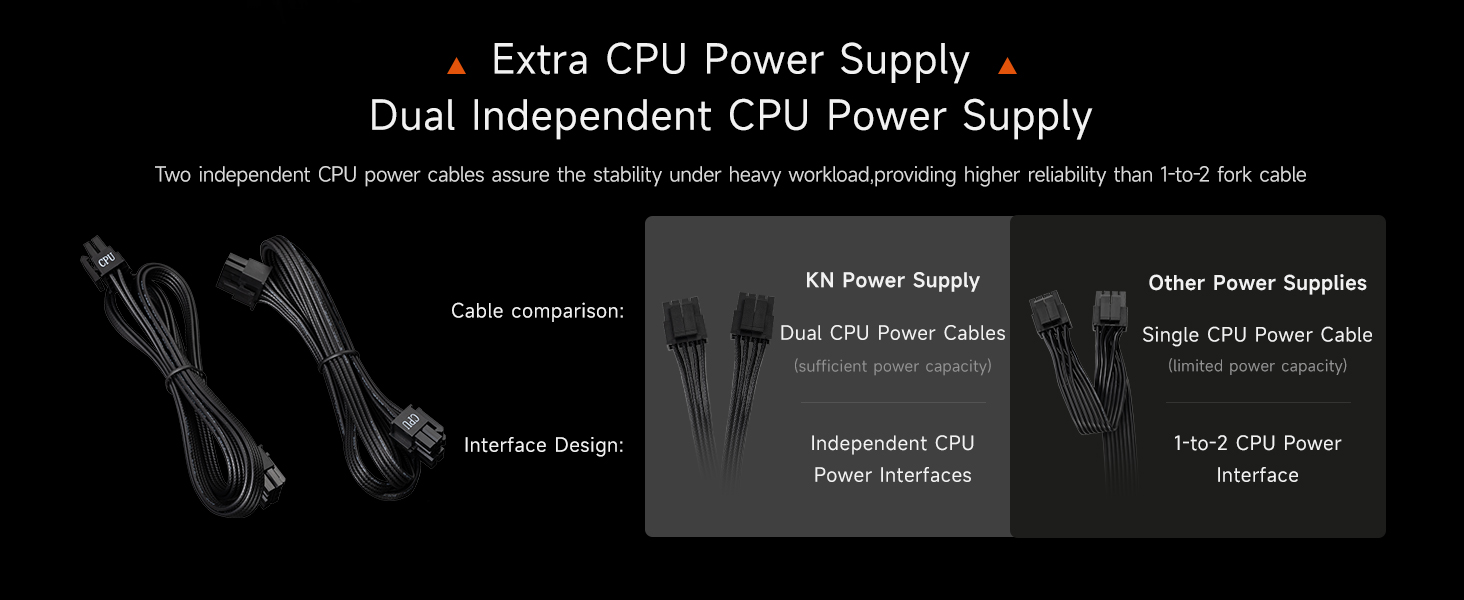

1 x Motherboard Connector 24Pin (20+4) 2 x CPU Connector 8Pin (4+4) 2 x PCI-E Connector 8Pin (6+2) 5 x SATA Power Connector 1 x 4-Pin Peripheral Connector
Cable Spec

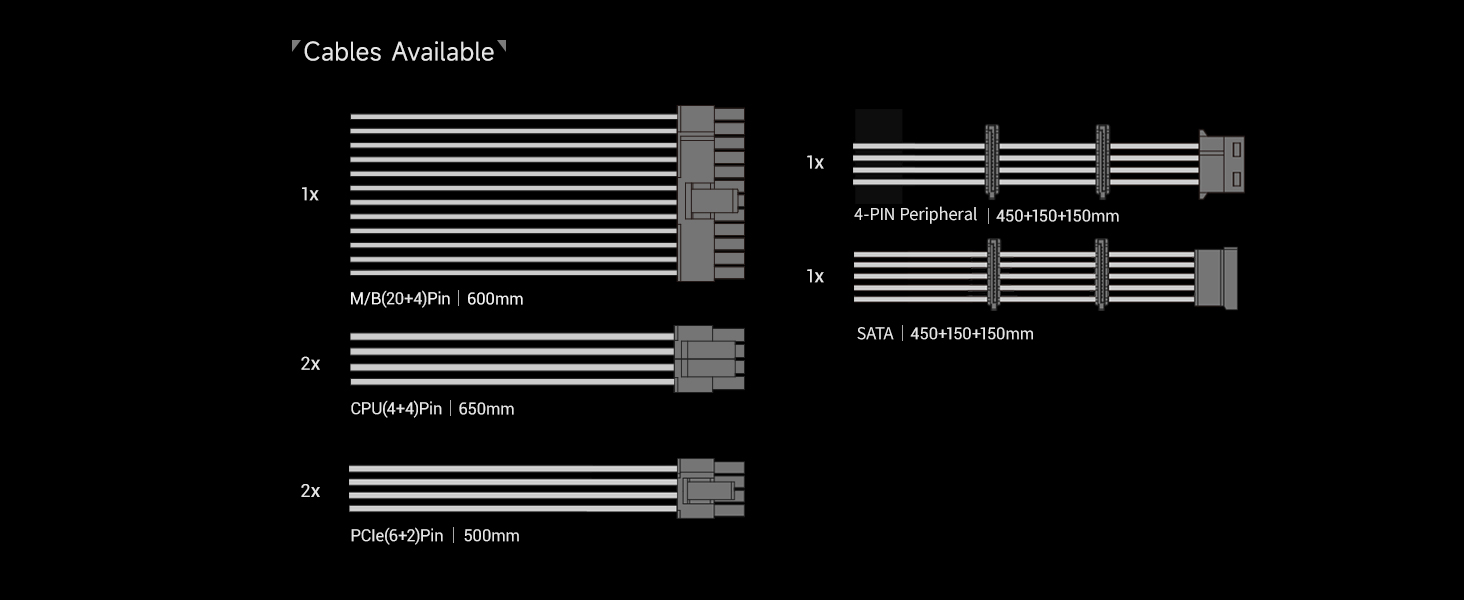

1 x M/B 24Pin (600mm) 2 x CPU (4+4) Pin (650mm) 2 x PCI-E (6+2) Pin (500mm) 1 x SATA x 2 + 4 Pin Peripheral (450+150+150mm) 1 x SATA x 3 (450+150+150mm)
Dimension & Weight
Dimensions

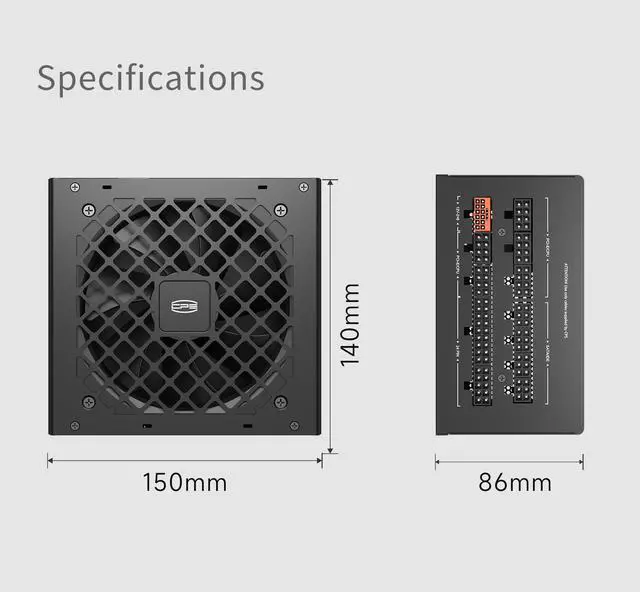

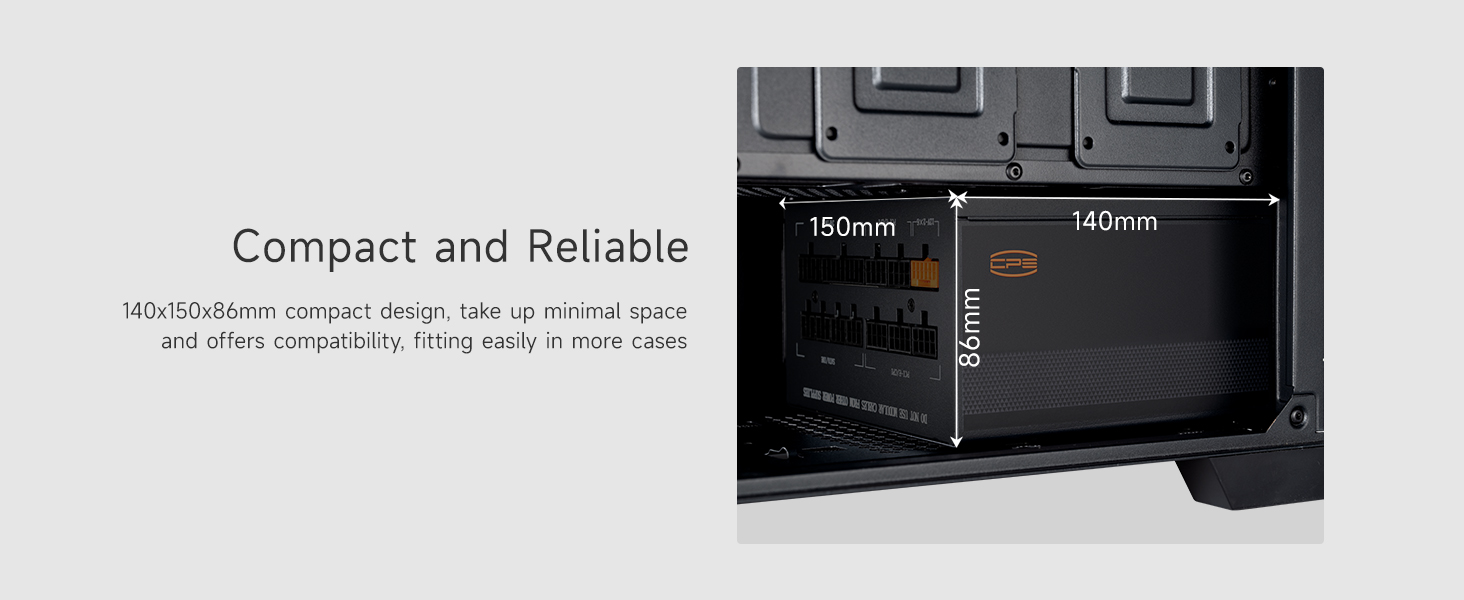

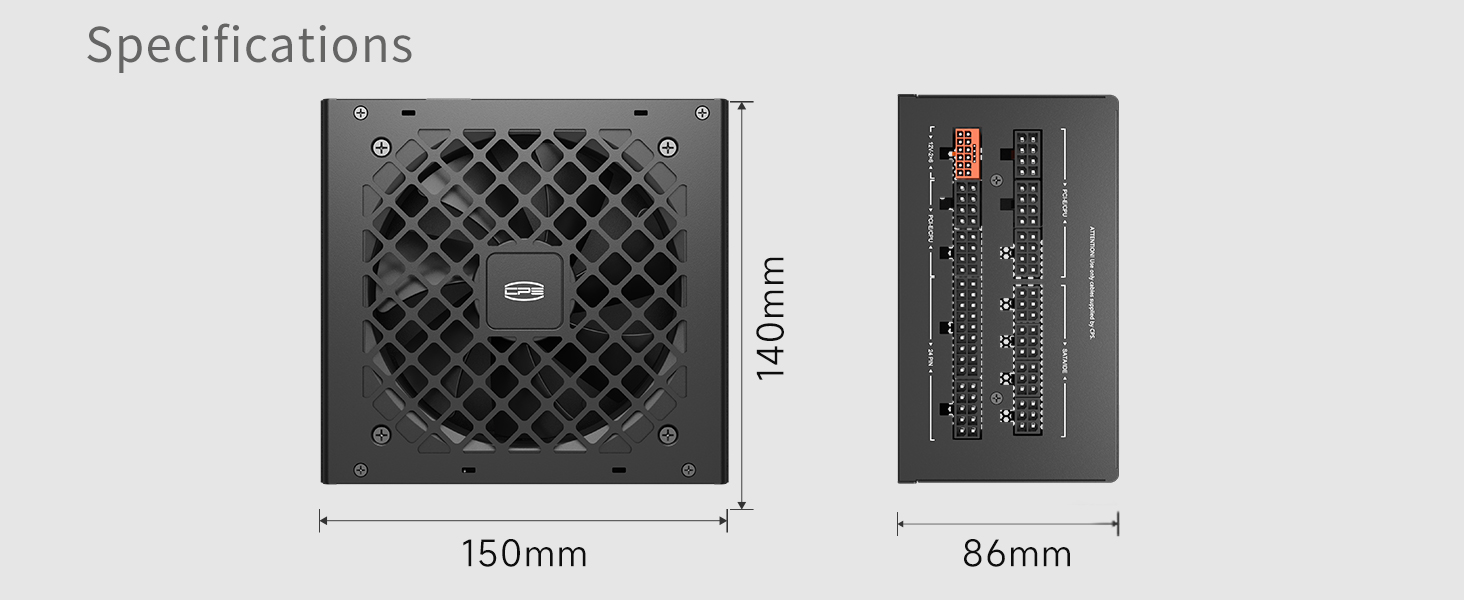

150 x 140 x 86 mm
Additional Information
First Listed on Newegg
October 31, 2025
