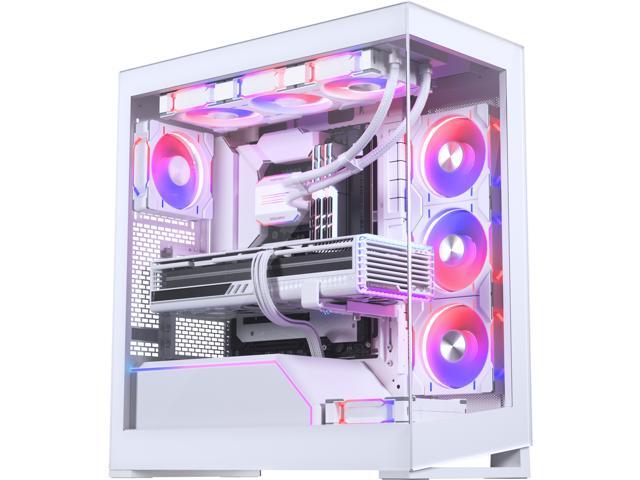

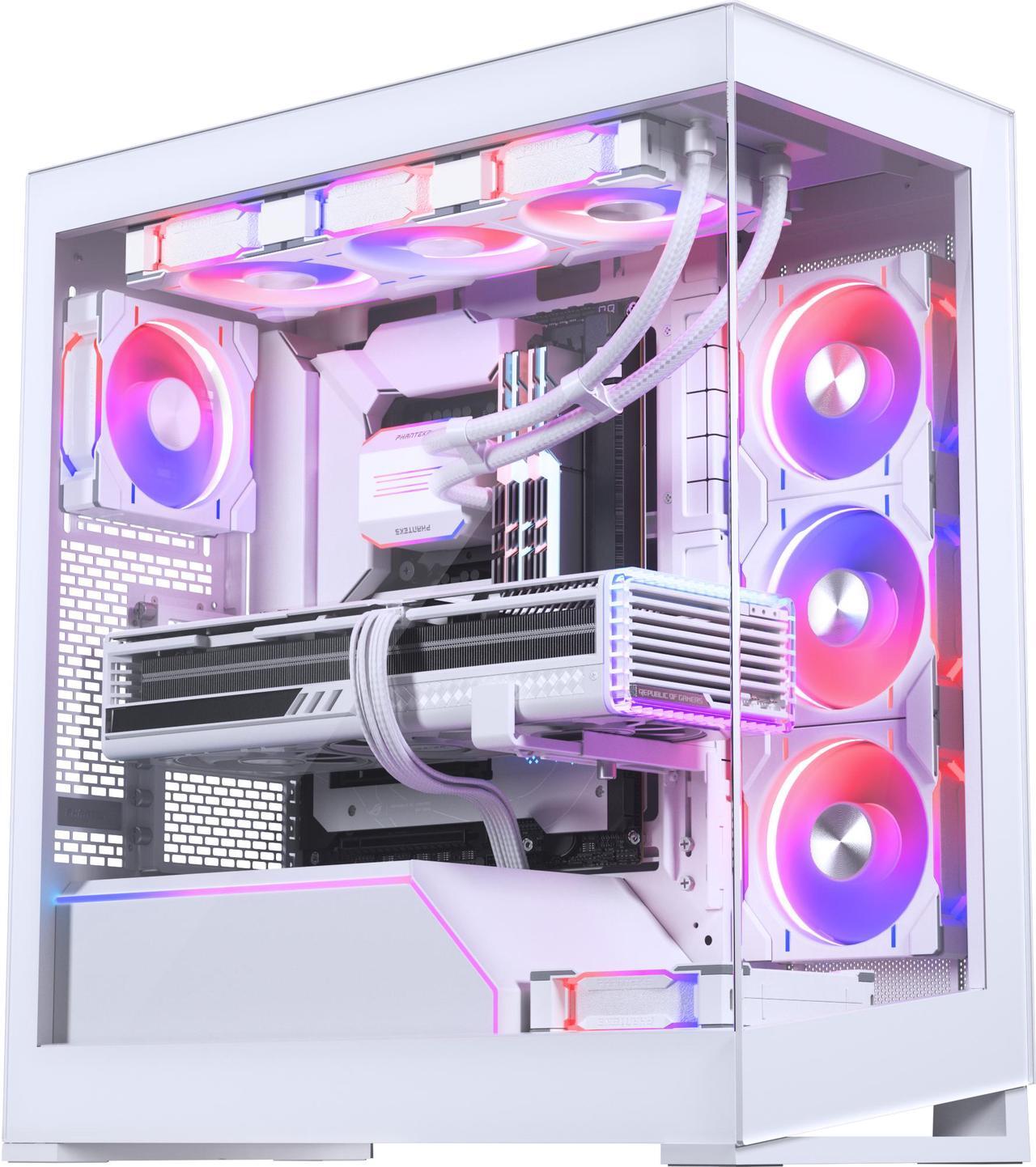

    Phanteks NV5 MK2, Showcase Mid-Tower Chassis, Rear-Connect MB Support, Integrated D/A-RGB Lighting, Seamless Tempered Glass Design, 8x Fan Positions, Matte White

    (160)(75) Write a Review
    Lowest Price
    in 30 Days
    • NV7 Series (Black)
    • NV7 Series (White)
    • NV9 Series (White)
    • NV5 MKII (Black)
    • NV5 MKII (White)
    • X2 Series (Black)
    • X2 Series (White)
    • Create a picture-perfect PC with a seamless glass design.
    • Support for the new Rear-Connect Mainboards for a zero-cable build.
    • Increased chassis width to support wider GPUs and PCIe cables.
    • Premium build quality throughout the strong and reinforced outer frame.
    • High Airflow Performance with fine mesh, dust filter and 8x 120mm fan positions.
    • Ready for ultimate water-cooling configurations with dual 360 radiator support.
    • Integrated D-RGB lighting in the PSU Cover with built-in D-RGB Controller that works out of the box and can sync with the mainboard.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

    Combo Up Savings Up To $370

    The more you add, the more you'll save!
    +
    +
    Specs
    Reviews (160)

    Learn more about the Phanteks NV5 MK2

    Model
    Brand Phanteks
    Model NV5 MK2
    Part Number PH-NV523TG_DMW02
    Details
    Type ATX Mid Tower
    Color Matte White
    Case Material Steel / Tempered Glass
    With Power Supply No
    Motherboard Compatibility ATX, Rear-Connect ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket)
    Side Panel Window Front and Side Tempered Glass
    LED RGB
    Expansion
    Internal 3.5" Drive Bays 3
    Internal 2.5" Drive Bays 4
    Expansion Slots 7
    Front Panel Ports
    Front Ports 2 x USB 3.0, USB-C Gen2, Microphone/Headphone Combo
    Cooling System
    Fan Options Bottom - 1 x 120mm / Rear - 1 x 120mm / Side - 3 x 120mm / Top - 3 x 120mm
    Radiator Options Rear - Up to 120mm / Side - Up to 360mm / Top - Up to 360mm
    Dimensions & Weight
    Max GPU Length 440 mm Length, 170 mm Width
    Max CPU Cooler Height 180 mm
    Max PSU Length 230 mm
    Dimensions (H x W x D) 528 x 239 x 477 mm / 20.8" x 9.4" x 18.8"
    Weight 11.28 kg / 24.9 lbs.
    Additional Info
    Package Content NV5 Chassis
    1 x D-RGB Controller
    1 x Storage Door
    1 x GPU Support Bracket

    Accessory Box
    6 x Zip ties
    22 x MB/SSD Screw
    4 x Thumb Screw
    12 x HDD+Case Screw
    1 x Standoff Removal Tool
    1 x MB stand-off
    4 x PSU Screw
    Additional Information
    Date First Available January 20, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 5 years
    • Limited Warranty period (labor): 5 years
