| Best Seller Ranking | #50 in Case Accessories |
|---|
| Brand | Phanteks |
|---|---|
| Model | PH-NELEDKT_M1 |
| Types | Lighting & Decor |
|---|---|
| Colors | RGB |
| Length | 100cm |

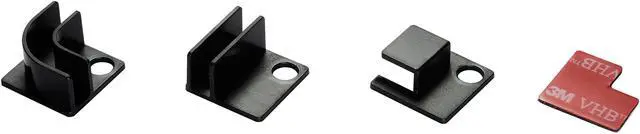

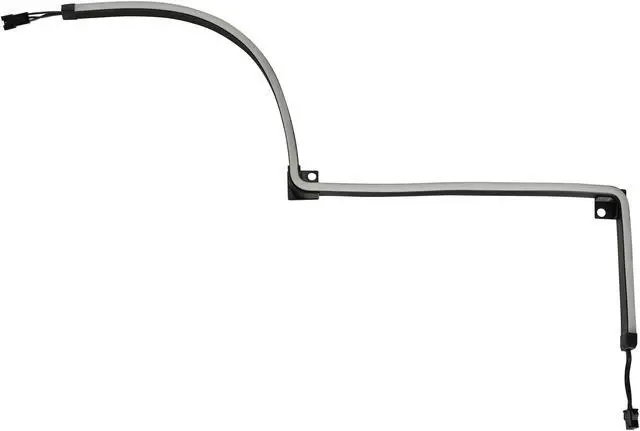

| Specifications | Application: For Digital-RGB equipped Cases, Controllers and Motherboards. (+5V, Data, NA, GND) Color: Full RGB color spectrum Connections: Input: Phanteks 3-pin (female) connector Output: Phanteks 3-pin (male) connector Input Voltage: +5V Current (Single strip): Max. 2.1A Wattage (Single strip): Max. 10.5W Cable compatibility: For Phanteks Digital-RGB LED system, For M/B Only with Digital-RGB Pin Header (+5V,DATA,NA,GND) LED Color/ Controller: KS6812, Full Color Digital-RGB LED Chip LED Number: 70 LEDs (1000mm NEON Digital-RGB LED Strip) MTBF: 20,000 hrs Product Dimensions: 1000 x 13 x 5.5mm (39.4 x 0.5 x 0.2in) Scope of Delivery: 1 x 1000mm (39.4in) PHANTEKS NEON Digital-RGB LED Strip 1 x 600mm (23.6in) M/B Digital-RGB adapter/Extension 4 x 90 degree mount 4 x 180 degree mount 4 x 180 degree flat mount 12 x 3M adhesive |
| Features | Smooth and diffuse lighting effect. Multiple mounting options for numerous configurations. Full color range Digital-RGB chips. High quality LED chips with high brightness and efficiency. Strong 3M adhesive for mounting clips. Easy cable management with Daisy-chain design. Safe to use non reversable connectors. Compatible with Phanteks Digital-RGB controller and cases. Compatible with Digital-RGB equipped motherboards (+5V-Data-NA-GND, Addressable). |
|---|
| Date First Available | October 29, 2019 |
|---|
Pros: Looks great, excellent light diffusion with minimal hotspots, syncs well to P500A case lighting. The little mounts are sized to fit a motherboard standoff so it makes using the 550mm Length strip relatively easy (check Cons section) Most of the Cons are kinda nitpicks to be honest.
Cons: 1) This is the only Con I wouldn't count as a nitpick. These things are flippin' T A L L . Like, 15mm or so tall. If your Motherboard has Side-Facing SATA ports like the MSI B550 Tomahawk in the picture, you will lose access to half of those ports. Be wary of this if you are not using any M.2 storage, or have a ton of SATA Drives. 2) The connector cables on either end of the strip are a little weird in terms of length. A weird mix of annoying to hide, but also extremely short. I had to redo the layout of the RGB wiring in my case in order to get it all to work properly with the given length. The extra cable included in the kit is not an extension cable, but rather a 3pin RGB adapter for Motherboard control. 3) For the 550mm Length, they need to add more of those little vertical mounts. the kit comes with 3x 90degree turn mounts (1 used), 3x vertical mounts (all 3 used to mount like in the photo), and 3x flat mounts (think as if you were placing it on the floor of the case, which seems like a much more niche use). The 550mm Length Strip is literally designed to wrap around an ATX motherboard, so not having at least 1 extra vertical mount to use up each standoff on those 2 sides just seems wrong to me. 4) It's a little hard to get perfectly straight. There are a bunch of tiny little curves still in the strip which is basically just a minor annoyance. Maybe if I re-positioned a couple of those vertical mounts it would be a bit better.
Overall Review: Definitely give it a shot. For the price, it's pretty nice not gonna lie. They look pretty dang good, not quite as luminous as in the product photos, or even the ones I included (maybe it's a camera thing), but the light does hit all the way to the Side Panel and will wake you up at night should they come on (Last night's Windows Update did me dirty with this). Overall, not a bad job Phanteks, keep up the good work.
