Pinnacle 82301002861 Studio MovieBox Plus

(8) Write a Review

USB 2.0 Interface
Composite video input (RCA connector) NTSC S-Video input (mini-DIN connector) NTSC Stereo audio input (2 x RCA connectors) IEEE 1394 In connector (6-pin type)

Overview

Specs

Reviews (8)

Any questions? Our AI beta will help you find out quickly.

Try me now

Put a production studio in your PC. The Studio MovieBox Plus from Pinnacle is a video capture appliance with the tools you need to edit and publish HDV and AVCHD video content.

The MovieBox has USB 2.0 and FireWire ports plus S-Video and composite in and out ports along with RCA audio jacks. With built-in HD disc burning capability, burn your Hollywood-style movies on HD DVD or Blu-ray Discs.

Edit and polish your video to the ultimate in quality with Pinnacle MovieBox!

Put a production studio in your PC. The Studio MovieBox Plus from Pinnacle is a video capture appliance with the tools you need to edit and publish HDV and AVCHD video content.

The MovieBox has USB 2.0 and FireWire ports plus S-Video and composite in and out ports along with RCA audio jacks. With built-in HD disc burning capability, burn your Hollywood-style movies on HD DVD or Blu-ray Discs.

Edit and polish your video to the ultimate in quality with Pinnacle MovieBox!

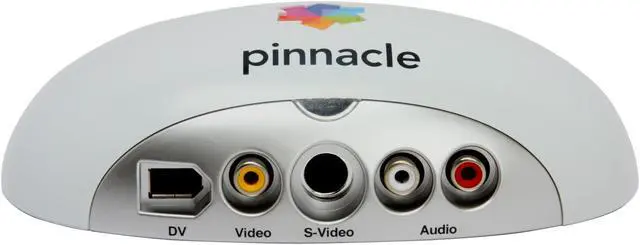

Video Input and Output Made EasyDesigned for video capture applications, the Pinnacle Studio MovieBox Plus features USB 2.0, IEEE 1394a, S-Video and composite video ports for video input and output between your computer and video devices such as your DV, HDV and AVCHD camcorders.
Built-in HD Disc BurningThe Pinnacle Studio MovieBox Plus features HD disc burning capability to natively author Blu-ray format discs with full motion menus or make AVCHD format discs on standard DVDs.

Model
Brand	Pinnacle
Model	82301002861

Details
Type	Video Capture & Editing
Others	2 GB of disk space DVD-ROM drive to install software
Specifications	Capture Options: - Capture from DV, HDV and Digital8 camcorders or VCRs - Capture from analog camcorders, 8 mm, HI 8, VHS, SVHS, VHS-C, SVHS-C, or VCRs (NTSC/PAL/SECAM). - Import from AVCHD* camcorders (requires USB 2.0 and a UDF driver) Output Options: - Output to DV, HDV or Digital8 tape - Output to analog videotape (requires DirectShow compatible video device or video card with TV-output) - Output to Apple iPod and Sony PSP formats* Analog Video Capture to Computer: - Analog PAL & SECAM/NTSC input - HDV/DV (IEEE 1394) camcorder capture. Full camera control support - Compression: MPEG-2, MPEG-1, DV, MJPEG (User selectable. Available real-time capture formats depend on CPU speed.) Video Playback from Computer: - HDV/DV (IEEE 1394) output to camcorder. Full camera/device control support

TV
TV Standards	No
Remote Control	No

Tuner
Interface	USB 2.0
FM Tuner	No
Video Format	Import: AVCHD, DV, HDV, AVI, MPEG-1, MPEG-2, DivX, MPEG-4, 3GP(MPEG-4), WMV, Non-encrypted DVD titles* Export: Video CD (VCD) or S-VCD with optional CD burner (CD-R or CD-RW) AVCHD, Blu-ray BD, HD-DVD, DVD disc with optional disc burner (incl. dual layer) Apple iPod and Sony PSP compatible (MPEG-4) formats* DV, HDV, AVI, DivX, RealVideo 8, WMV, MPEG-1, MPEG-2, MPEG-4, Flash, 3GP*, WAV
Audio	Import: MP3, MPA, WAV, AC3* Export: MP3* files, Dolby Digital 2 channel* and 5.1 channel** audio
Image Format	Import: BMP, GIF, JPG, PCX, PSD, TGA, TIF, WMF
Ports In	Composite video input (RCA connector) NTSC S-Video input (mini-DIN connector) NTSC Stereo audio input (2 x RCA connectors) IEEE 1394 In connector (6-pin type)
Ports Out	IEEE 1394 Out connector (6-pin type)

System
Processor	Windows XP SP2 (SP3), Windows Vista (SP1) Intel Pentium or AMD Athlon 1.8 GHz (2.4 GHz or higher recommended) Intel Pentium HT or AMD Athlon 2.4 GHz or 1.6 GHz Dual core required for Windows Vista - Intel Core 2 Duo 2.4 GHz or higher required for 1440 x 1080 AVCHD editing - Intel Core 2 Quad 2.66 GHz or higher required for 1920 x 1080 AVCHD editing
Graphics Card	DirectX 9 or 10 compatible graphics card with 64 MB (128 MB or higher recommended) - 128 MB required on Windows Vista (256 MB or higher recommended) - 256 MB required for HD and AVCHD DirectX 9 or higher compatible sound card
Memory	1 GB system memory recommended 2 GB required for AVCHD, recommended for HD and/or Windows Vista
Operating Systems Supported	Windows XP SP2 (SP3), Windows Vista (SP1)

Features
Features	Transform your videos and photos into amazing movies NEW theme-based video editing gives you creative power Capture, edit and burn: The complete native HD solution

Package Contents

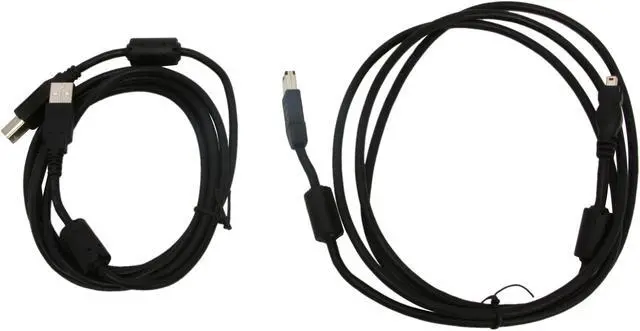

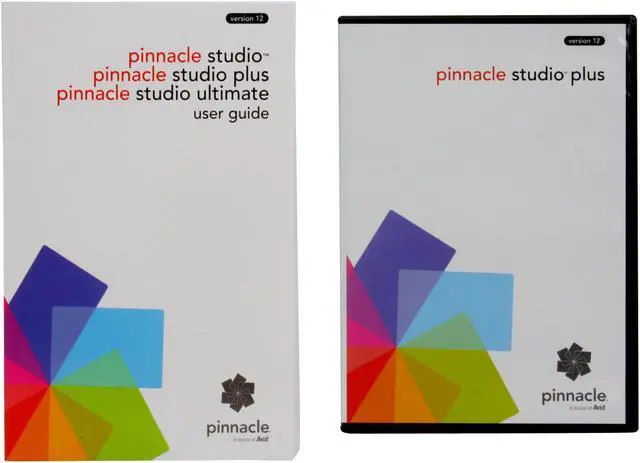

Package Contents	8230-10028-61 User Manual Driver Disk Cable

Additional Information
First Listed on Newegg	October 17, 2008
