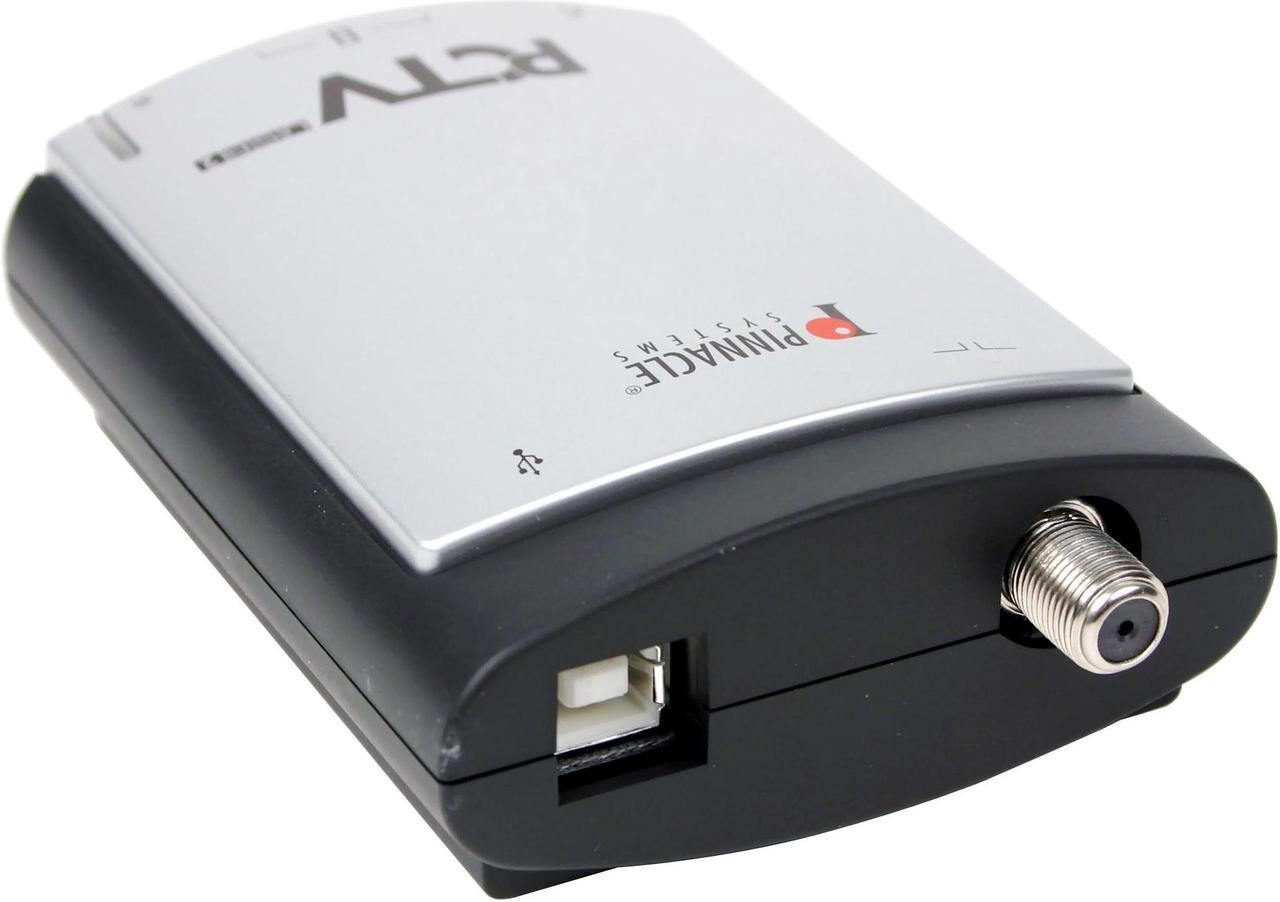

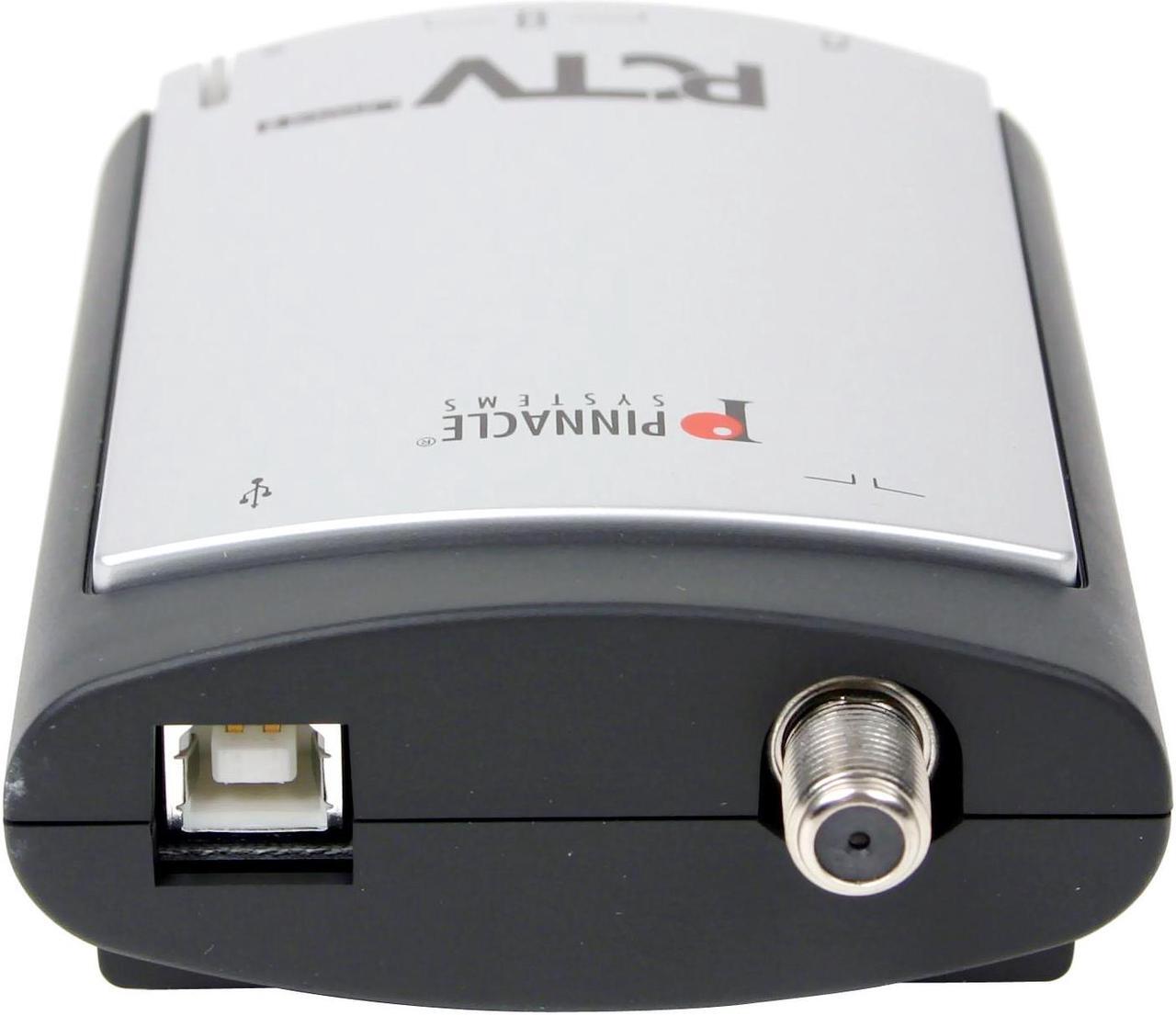

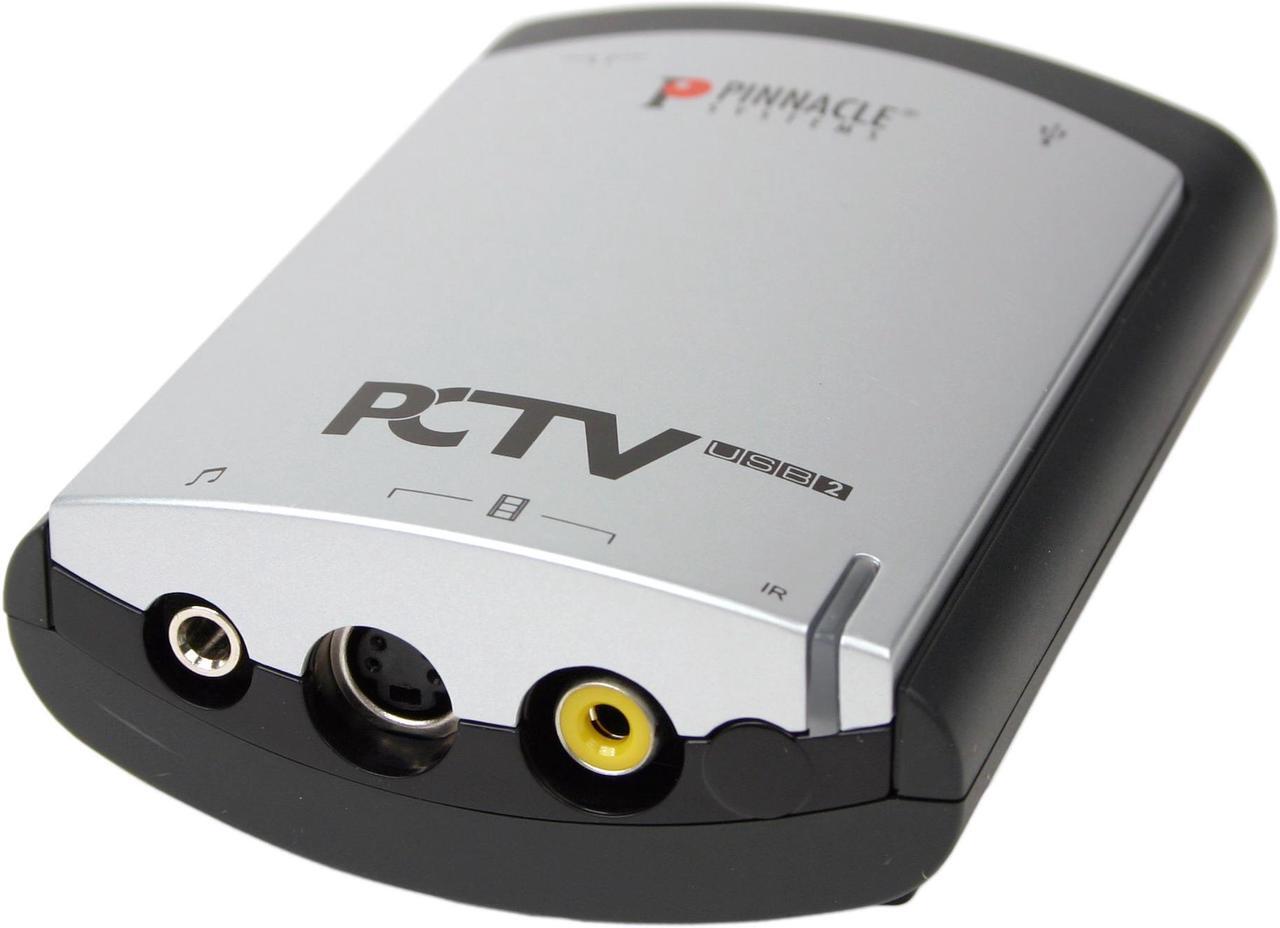

Pinnacle PCTV USB2 VIDEO CAPTURE

Be the first to review this product...
  • NTSC
  • USB 2.0 Interface
  • S-Video In, Composite Video In, Coaxial(RF) Input
  • Infra-red remote control transmitter
Specs
Reviews

Learn more about the Pinnacle System PCTV USB2

Model
Brand Pinnacle
Model PCTV USB2
Details
Type External TV Tuner Box
Others E-IDE hard disk with min. 5GB free space
CD-ROM or DVD-ROM drive
Mouse
Specifications Hardware:

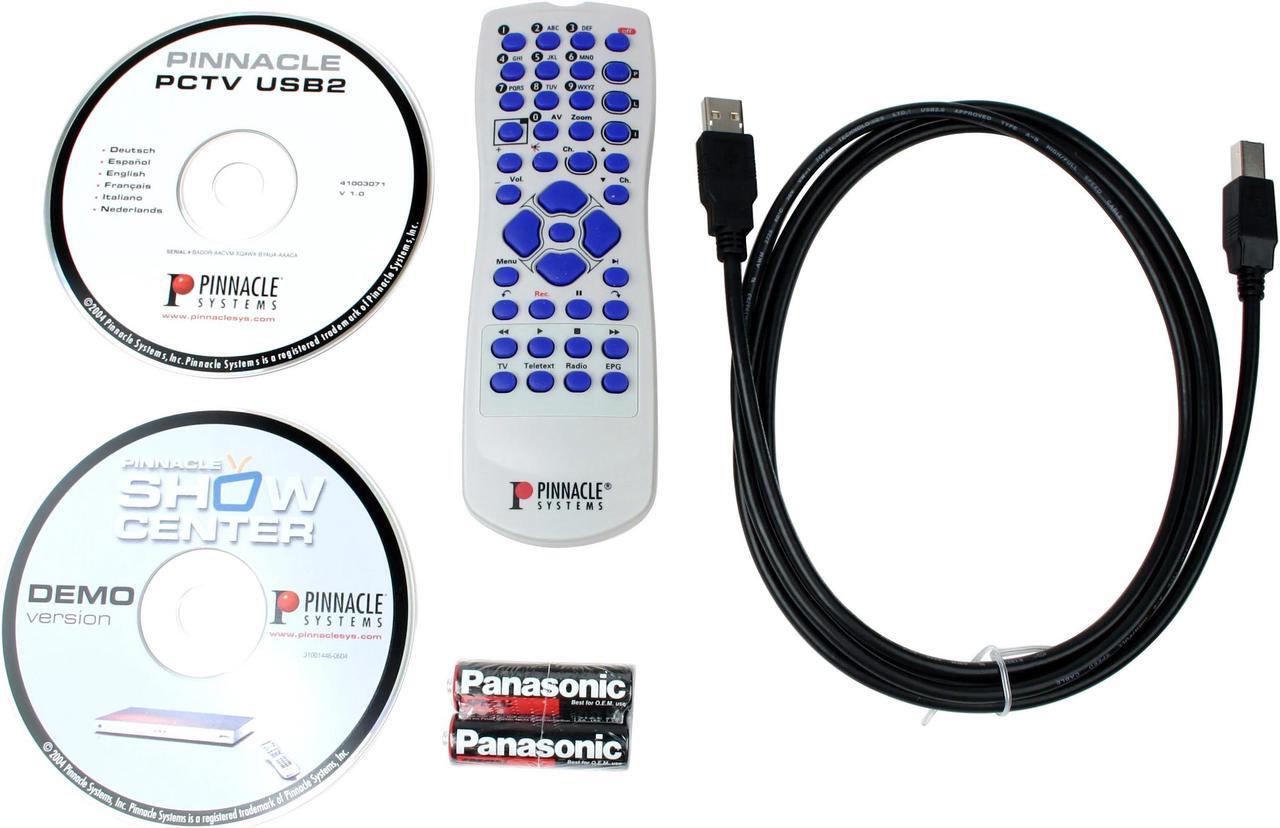

PCTV USB2 external TV tuner with hyperband cable TV support
Hi-Speed USB compliant cable, length ca. 1.8m/6ft
Infra-red remote control transmitter
2 AA batteries for transmitter
Software:
PCTV Vision WatchTV and PVR application
PCTV Assistant
TV
TV Tuner Analog Tuner
TV Standards NTSC
Remote Control Infra-red remote control transmitter
Tuner
Interface USB 2.0
FM Tuner No
Video Format MPEG-2(DVD)/MPEG-1(VCD)
Ports In S-Video In, Composite Video In, Coaxial(RF) Input
Ports Out Stereo Audio Output to Speaker
System
Processor PC with Pentium III or Athlon 1GHz or Celeron/Duron 1.2GHz
Graphics Card DirectX 8 (or higher) compatible graphics controller
DirectX 9 (or higher) compatible sound controller
Memory 256MB of RAM
Available Slot 1 free Hi-Speed USB compatible port
Operating Systems Supported Windows XP Professional or Windows XP Home (Service Pack 1)
Features
Features Viewing
External Hi-Speed USB TV tuner, compatible with both analogue cable and antenna TV
Play, pause and rewind TV (Time-shifting technology)
Watch TV in a resizable window or full-screen mode
Real-time de-interlacing and noise-filter for best-in-class video quality
View programmes broadcast in 4:3 or 16:9 aspect ratios
Easy-to-use features including multi-channel preview grid
Easy set-up with automatic channel scan
Recording
Record in MPEG-1 and DV format with no file size restrictions
Time-Shifting (delayed viewing) in MPEG-1 formats
Use your PC like a digital VCR to schedule recordings of your favourite programmes
Capture high-quality still images from live video
Copy video footage from a VCR, camcorder or DVD player to your hard drive
Burn recordings to VCD, SVCD* and DVD*

Activation of PCTV USB2’s MPEG-2* functionality enhances the product feature set as follows:
Hard-disk recording in MPEG-2* format of live TV or from external video sources that are connected to your PCTV (e.g. VCR, DVD player, Cable TV set-top box). Given presets are “DVD”, “DVD Longplay” and “SuperVCD”. Additionally, the settings can be defined by the user according to his preferences.
Time-Shifting (delayed viewing) in MPEG-2* formats
SuperVCD and DVD burning with your PC’s CD- or DVD-writer.
Playback of MPEG-2* files by drag-and-drop into the PCTV Vision video window
Additional Information
Date First Available November 12, 2004
