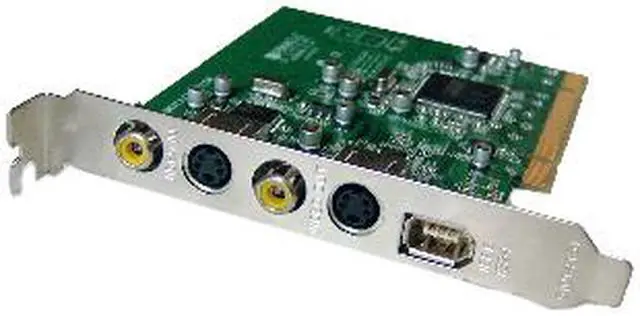

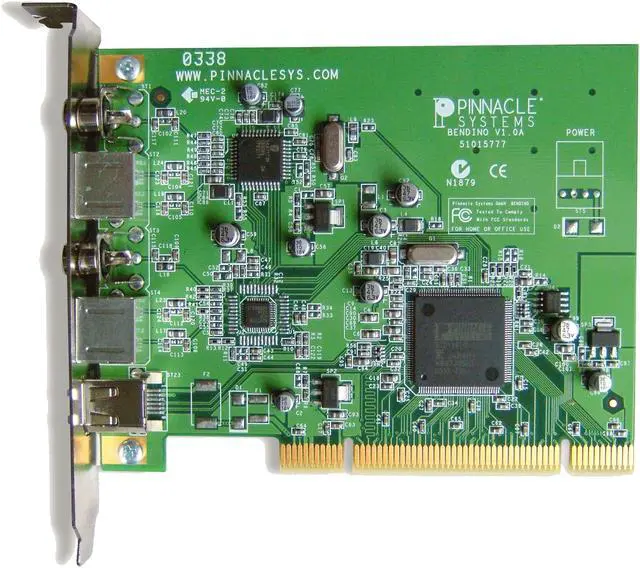

Pinnacle STUDIO500PCI Capture Card
- PCI Interface
- Composite video input (RCA connector) PAL, SECAM, NTSC S-Video input (mini-DIN connector) PAL, SECAM, NTSC IEEE 1394 I/O connector (6-pin type)
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Pinnacle System STUDIO500PCI
| Brand | Pinnacle |
|---|---|
| Model | STUDIO500PCI |
| Type | Video Capture & Editing |
|---|---|
| Others | 1 GB of disk space to install software + 3 GB to install bonus content DVD-ROM drive Optional: - CD-R(W) burner for creating Video CDs or Super Video CDs - DVD-/+R(W) burner drive for creating DVDs |
| Interface | PCI |
|---|---|
| Video System | PAL/SECAM (SECAM input only) |
| Video Format | Export Formats Video CD (VCD) or Super Video CD (S-VCD)* with optional CD-R or CD-RW drive DVD* with optional DVD-R(W) DVD-/+R(W) drive DV, AVI, DivX® **, RealVideo® 8, Windows Media® 9, MPEG-1, MPEG-2*, MPEG-4** files Dolby® Digital Audio 2 channel** Import Formats Video: DV, AVI MPEG-1, MPEG-2*, DivX**, MPEG-4 (AVI)**, Windows Media Format, Non-encrypted DVD Titles** Audio: WAV, MP3 Graphic: BMP, JPG, PCT, TGA, TIF, WMF |
| Audio | WAV/MP3 |
| Image Format | BMP, JPG, PCT, TGA, TIF, WMF |
| Ports In | Composite video input (RCA connector) PAL, SECAM, NTSC S-Video input (mini-DIN connector) PAL, SECAM, NTSC IEEE 1394 I/O connector (6-pin type) |
| Ports Out | Composite video output (RCA connector) PAL, NTSC S-Video output (mini-DIN connector) PAL, NTSC IEEE 1394 I/O connector (6-pin type) |
| Processor | Intel Pentium or AMD Athlon 1.4 GHz or higher (2.4 GHz or higher recommended) |
|---|---|
| Graphics Card | DirectX 9 or higher compatible graphics card with 32 MB (ATI Radeon or NVIDIA GeForce 3 or higher with 128 MB recommended) DirectX 9 or higher compatible sound card (Creative Audigy or M-Audio recommended) |
| Memory | 512 MB RAM (1 GB recommended) |
| Available Slot | 1 USB 2.0 (Hi-speed) port |
| Operating Systems Supported | Windows XP (SP1 or higher) |
| Features | Simplicity and Ease-of-Use SmartMovie Built-in DVD Authoring Instant Transfer to DVD Pan-and-Zoom Video and Audio Restoration Real-time Effects with Preview SmartSound Many Popular Sources and Formats Background Saving |
|---|
| First Listed on Newegg | November 02, 2005 |
|---|
