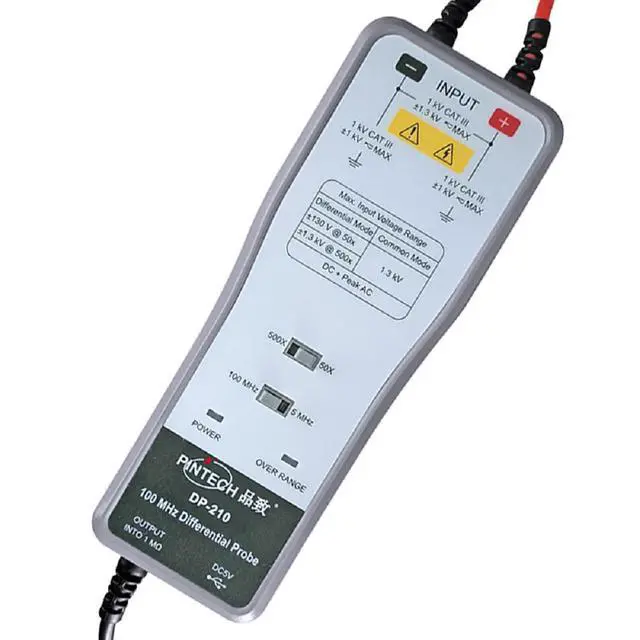

PINTECH High Voltage Differential Active Probe 1300V, 100MHz, 50X/500X Attenuation Rate Oscilloscope Probe Kit DP-210
- The DP-210 differential probe is designed for high voltage measurements. The 100Mhz BD and 1300V range will help you with most high voltage situations.
- The High Voltage probe with Bandwidth:DC-100MHz, Attenuation Ratio: 50X/500X, Accuracy (Typical):±2%, Rise Time: 3.5ns. The built-in 5MHz Bandwidth Limited makes it easy to operate.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes, requiring only that the device be equipped with standard BNC connectors.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

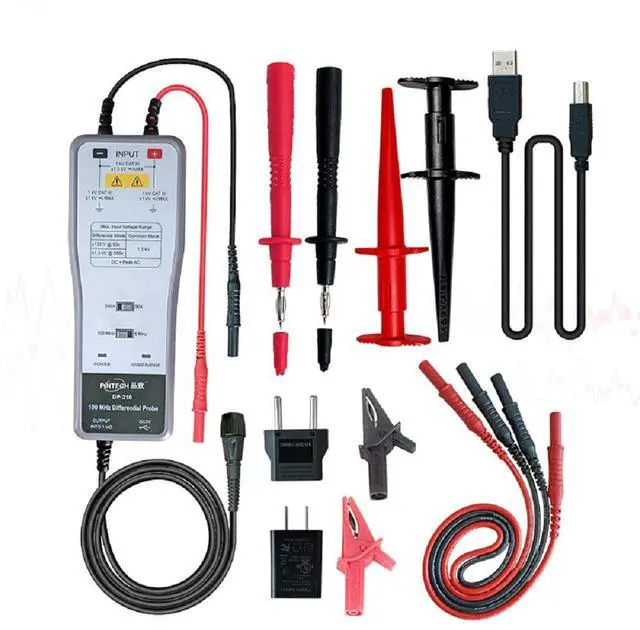

- Package Included: DP-210 differential probe x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, End-probe x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

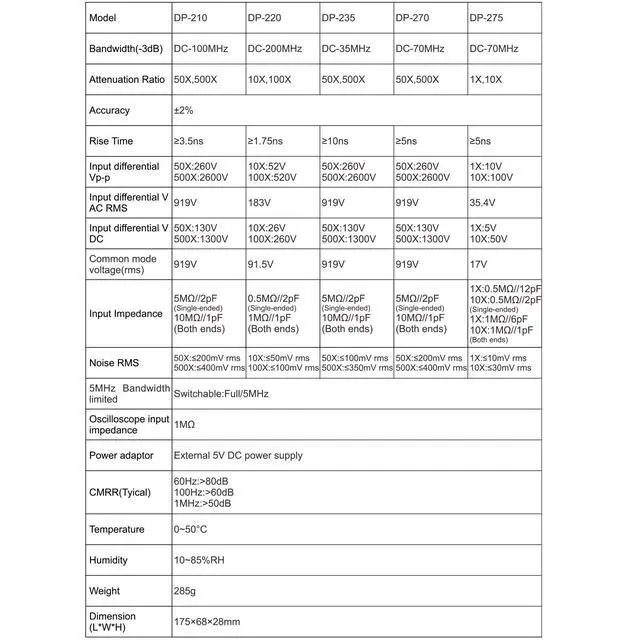

MODEL: DP-210
Bandwidth (-3dB): DC-100MHz
Input Impedance: Between the two ends: 10M//1pF , Single-ended to ground: 5M//2pF
Attenuation Rate: 50X/500X
Rising Time: 3.5ns
Input Voltage Range: ±130V (DC + ACpeak) at 50X; ±1300V (DC + ACpeak) at 500X
Maximum Input Voltage: ±1300V(DC+ACpeak)
Maximum voltage between input terminals and ground terminals: 919V RMS
Accuracy: ±2%
Output Voltage: ±2.6V
Output Impedance: 50 (In a 1M input impedance oscilloscope system)
Noise Suppression Ratio: 60Hz:>80dB; 100Hz:>60dB; 1MHz:>50dB
Noise RMS: 50X: 200mV; 500X: 400mV
Power Supply: Specify an external 5V DC power
5MHz Bandwidth Limited: Switchable: FULL/5MHz
Weight: 285g/0.63lb
Dimension(LxWxH): 175x68x28 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH DP-210 is a high-voltage differential active oscilloscope probe built for engineers, technicians, and lab users who need to measure differential signals up to 1300V with up to 100MHz bandwidth on standard BNC-equipped oscilloscopes.
Recommended For
- Engineers troubleshooting offline power supplies, inverter stages, or mains-referenced switching nodes who need to view floating high-voltage waveforms on a standard BNC oscilloscope rather than tying scope ground into the circuit.
- Motor-drive, VFD, and BLDC developers checking phase-to-phase or half-bridge waveforms where the signal is floating and direct single-ended probing would be unsafe or misleading.
- Bench users who already own a general-purpose oscilloscope and want an external differential probe to expand into higher-voltage measurement without changing scopes, as long as the scope has a standard BNC input.
- Electronics labs doing general high-voltage debug up to the 100 MHz class, where the goal is observing switching behavior, rise/fall trends, and differential voltage relationships rather than ultra-high-speed signal-integrity analysis.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Differential high-voltage measurements with oscilloscopes, meters, and data-acquisition equipment; suited for testing motor circuits and other two-point high-voltage signals |
| Model Identifiers | PINTECH DP-210 oscilloscope probe |
| Bandwidth And Accuracy | DC–100 MHz bandwidth with ±2% accuracy |
| Dimensions And Color | 175 x 68 x 28 mm, gray finish |
