- $1,740.00
- Free 30-day Returns
Volume Discounts Available
- $1,539.00 ea.
- $1,522.80 ea.
- $1,506.60 ea.
Ships from China.
Sold by GUANGZHOU PINTECH CO LTD
Shipped by GUANGZHOU PINTECH CO LTD
Meet Your Seller

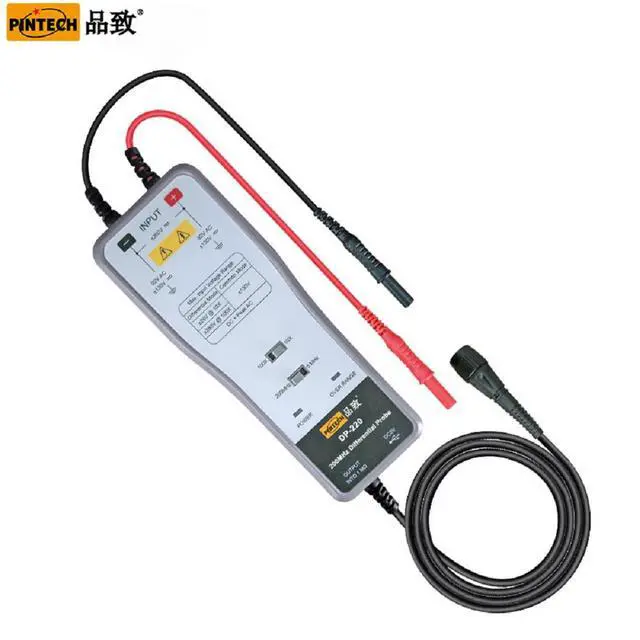

PINTECH High Voltage Differential Active Probe 260V, 200MHz, 10X/100X Attenuation Rate Oscilloscope Probe Kit DP-220
- Maximum differential test voltage: 260Vp-p. The built-in 5MHz Bandwidth Limited makes it easy to operate.
- The High Voltage probe with Bandwidth:DC-200MHz, Attenuation Ratio: 10X/100X, Accuracy (Typical):±2%. Input Voltage Range:±26V DC+ACpeak at 10X, ±260V DC+ACpeak at 100X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes, requiring only that the device be equipped with standard BNC connectors.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

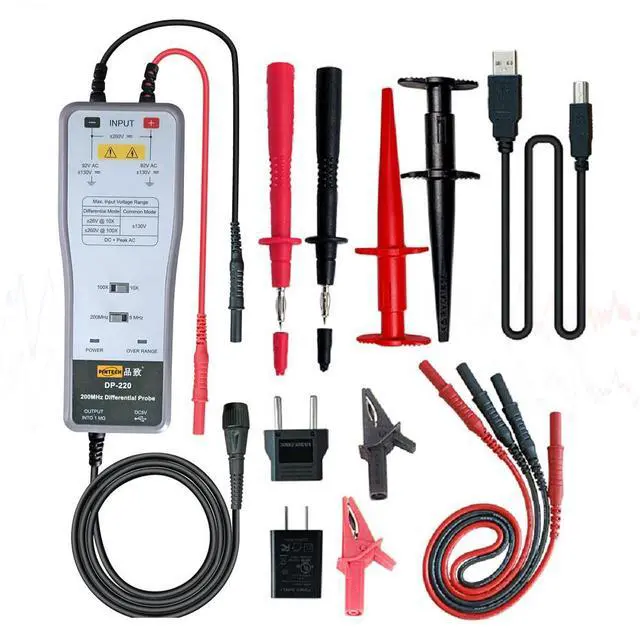

- Package Included: DP-220 differential probe x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, End-probe x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MODEL: DP-220
Bandwidth (-3dB): DC-200MHz
Input Impedance: Single-ended to ground: 1M//1PF; Single-ended to ground: 1M//1pF
Attenuation Rate: 10X/100X
Rising Time: 1.75ns
Input Vp-p ±26V DC+ACpeak at 10X, ±260V DC+ACpeak at 100X
RMS Value: 183V
Accuracy: ±2%
Output Voltage: ±2.6V
Output Impedance: 50
Noise RMS: 10X: 50mV; 100X: 100mV
CMRR: 60Hz:>80dB; 100Hz:>60dB; 1MHz:>50dB
Power Supply: Specify an external 5V DC power
5MHz Bandwidth Limited: Switchable: FULL/5MHz
Weight: 285g/0.63lb
Dimension(LxWxH): 175x68x28 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH DP-220 is a 200MHz active high-voltage differential oscilloscope probe for engineers and technicians who need to measure floating or two-point signals with standard BNC scopes, especially in motor drives, power electronics, and general circuit testing up to 260Vp-p differential.
Recommended For
- Engineers and technicians troubleshooting switch-mode power supplies, inverter stages, or VFD/motor-drive outputs who need to view floating differential waveforms safely on a standard BNC oscilloscope. The DP-220’s category positioning and community use patterns fit power-electronics debug more than general bench probing.
- Lab users who already own a mainstream oscilloscope with a BNC input and want an add-on differential probe instead of buying a scope-brand-specific probe ecosystem. Real-world discussion around active differential probes consistently highlights cross-brand BNC compatibility as a practical buying reason.
- Bench developers capturing fast switching edges in low-to-moderate voltage power circuits where tens to hundreds of MHz of probe bandwidth matter more than extremely high voltage range. Community discussion around drive and switching measurements emphasizes needing enough bandwidth to see edge-related harmonics, not just the fundamental frequency.
- Repair and R&D workflows in power electronics that need a dedicated differential probe for safe measurement across two non-ground-referenced points, especially during debugging, validation, or fault finding on live circuits.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Differential and two-point signal measurement with oscilloscopes and data-acquisition equipment; suited for general test & measurement tasks including motor-circuit testing |
| Model Identifiers | PINTECH DP-220 active oscilloscope probe |
| Bandwidth And Accuracy | DC–200 MHz (-3 dB) bandwidth with ±2% typical accuracy |
| Physical Specifications | 175 x 68 x 28 mm; gray finish |
