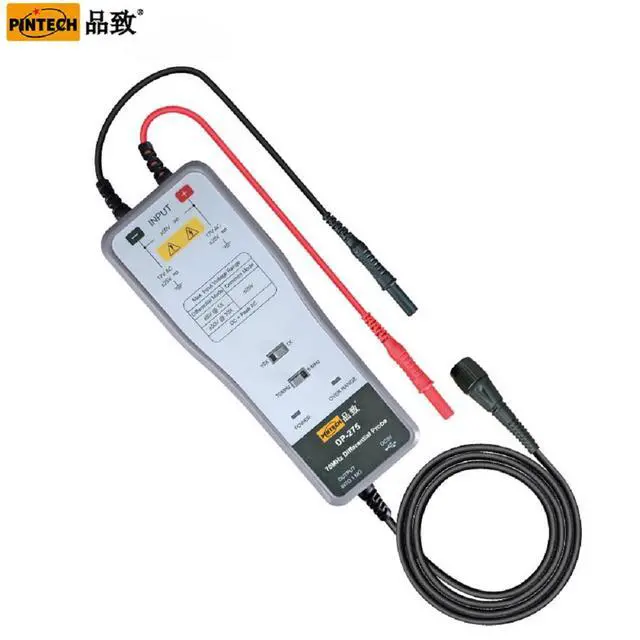

PINTECH High Voltage Differential Active Probe 50V, 70MHz, 1X/10X Attenuation Rate Oscilloscope Probe Kit DP-275
- Maximum differential test voltage: 50Vp-p. The built-in 5MHz Bandwidth Limited makes it easy to operate.
- The High Voltage probe with Bandwidth:DC-70MHz, Attenuation Ratio: 1X/10X, Accuracy (Typical):±2%. Input Voltage Range:±5V DC+ACpeak at 1X, ±50V DC+ACpeak at 10X.
- The oscilloscope probe features with BNC interface, compatible with all oscilloscopes, requiring only that the device be equipped with standard BNC connectors.
- Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.

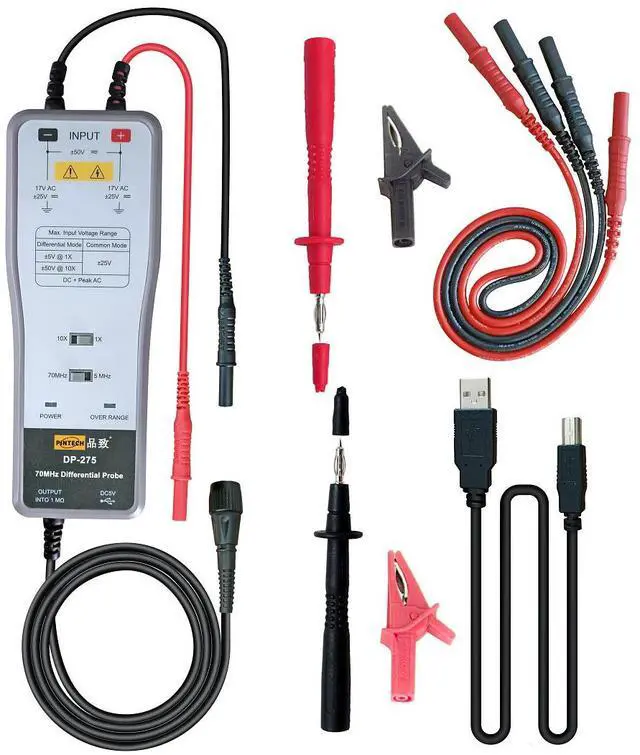

- Package Included: DP-275 differential probe x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, End-probe x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
Any questions? Ask CelesteSM will help you find out quickly.
MODEL: DP-275
Bandwidth (-3dB): DC-70MHz
Input Impedance: 1M//6PF(X1), 1M//1PF(X10)
Attenuation Rate: 1X/10X
Rising Time: 5ns
Input Voltage Range: ±5V (DC + AC peak) at 1X; ±50V (DC + AC peak) at 10X
Accuracy: ±2%
RMS Value: 35.4V
Output Voltage: ±5V
Output Impedance: 50
Noise: 1X: 10mV; 10X: 30mV
CMRR: 60Hz:>80dB; 100Hz:>60dB; 1MHz:>50dB
Power Supply: External 5V DC power
5MHz Bandwidth Limited: Switchable: FULL/5MHz
Weight: 285g/0.63lb
Dimension(LxWxH): 175x68x28 mm
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
The PINTECH DP-275 is a 70MHz active differential oscilloscope probe for engineers, technicians, and electronics labs that need to measure floating or two-point signals with standard BNC oscilloscopes, especially in motor-drive and general circuit testing within its 50Vp-p differential range.
Recommended For
- Technicians checking floating points in motor drives, inverter stages, or bridge outputs on a standard bench oscilloscope. A differential probe is commonly recommended for these measurements because regular scope grounds are earth-referenced, and community guidance specifically points to primary-side and bridge-tied measurements as cases where a differential probe is the right tool.
- Engineers who need a low-voltage differential probe for switch-node, gate-drive, or control-circuit work where the signal is under about 50 V peak and bandwidth in the tens of MHz is enough. The DP-275 sits in PINTECH's lineup as a 70 MHz, 100 Vp-p differential probe, which fits lower-voltage power-electronics debugging better than the brand's high-voltage models.
- Users with entry-level or older oscilloscopes that only have standard BNC inputs and want true differential measurement without sacrificing two channels and math subtraction. Community discussion repeatedly notes that dedicated differential probes give better common-mode rejection than the two-probe subtraction workaround.
- Lab users troubleshooting PWM waveforms in drives or power converters who care more about edge visibility than just fundamental switching frequency. Community commentary around VFD and drive measurements notes that even when switching frequency is modest, the fast edges still need bandwidth in the 10s of MHz range.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Differential signal measurements with oscilloscopes and data-acquisition equipment; suited to testing two-point/differential circuits such as motor-control and power electronics circuits |
| Model Identifiers | PINTECH DP-275 oscilloscope probe |
| Bandwidth And Frequency | DC–70 MHz (-3 dB) bandwidth for mid-range signal capture |
| Accuracy | Typical accuracy ±2% |
| Physical | Compact dimensions 175 x 68 x 28 mm |
