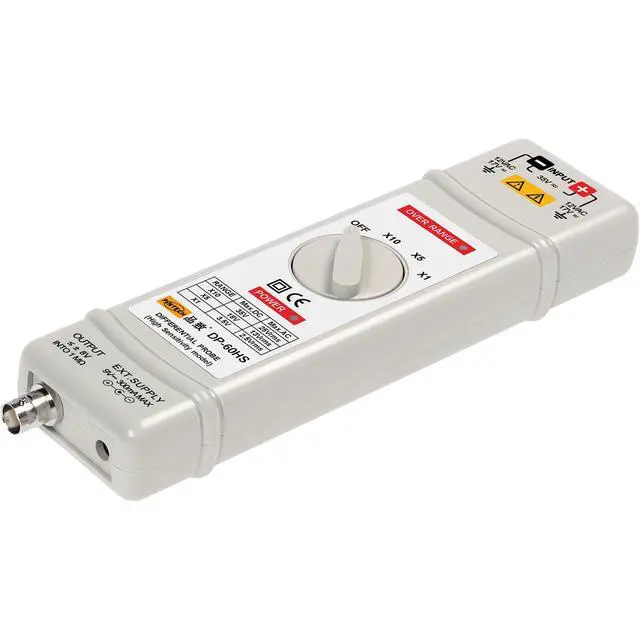

PINTECH Low Voltage Differential Probe 70V, 60MHz, 1X/5X/10X Attenuation Rate Oscilloscope Probe Kit DP-60HS

  • The DP-60HS differential probe is designed for low voltage measurements. 70V range will help you measure tiny signals, replacing traditional non-insulated test bars.
  • The low voltage probe with Bandwidth: DC-60MHz/50MHz/15MHz, Attenuation Ratio: 10X/5X/1X, Accuracy (Typical)±2%.
  • Widely Used: Our oscilloscope probe features with BNC interface, compatible with a wide range of oscilloscopes, requiring only that the device be equipped with standard BNC connectors.

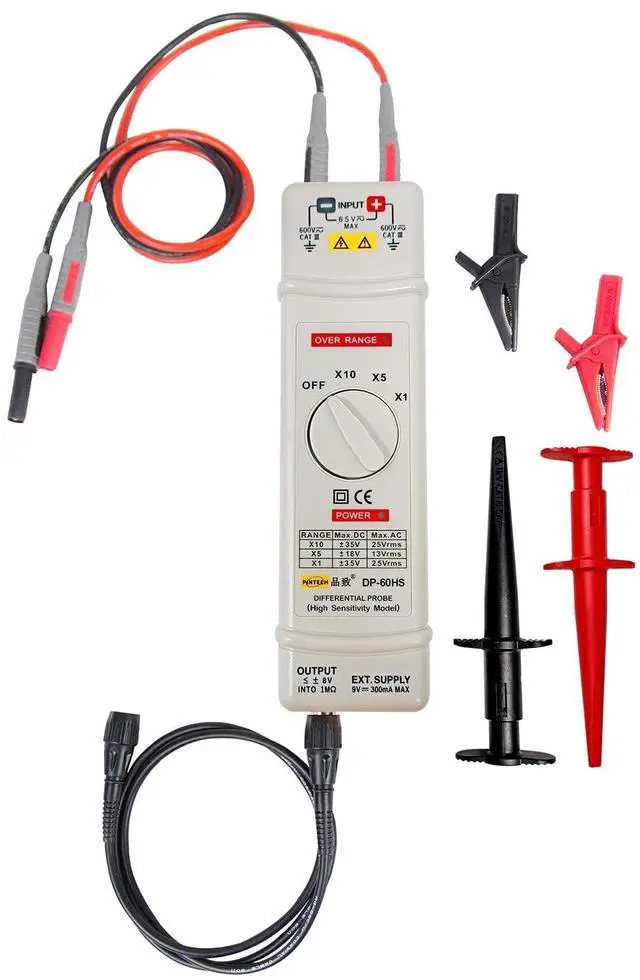

  • Package Included: DP-60HS differential probe x 1, Adapter x 1, Alligator Clip x 2, Probe Hook x 2, BNC cable x 1, Dedicated input cable x 1, User Manual x 1.
  • Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

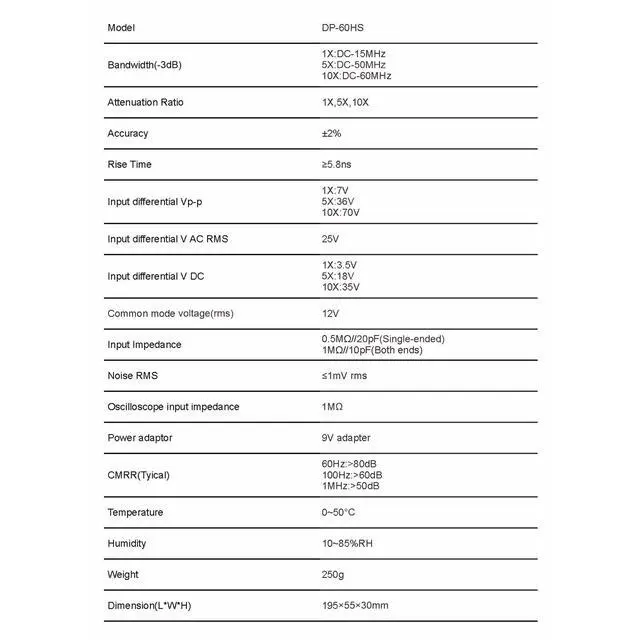

MODEL: DP-60HS


Bandwidth(-3dB): DC-15MHz(X1), DC-50MHz(X5), DC-60MHz(X10)


Attenuation Rate: X1, X5, X10


Rise time: 5.8ns


Accuracy: ±2%(After 20 minutes of operation)


Testing Voltage(Vp-p): 1X: 7V; 5X: 36V; 10X: 70V


Input DC Voltage: 1X: 3.5V; 5X: 18V; 10X: 35V


RMS Value: 25V


Common-mode voltage RMS: 12V


Noise: 1mV rms


Impedance: Between the two ends: 1M//10pF, Single-ended to ground: 0.5M//20pF


CMRR: 60Hz:80dB; 100Hz:60dB; 1MHz:50dB


Dimension(LxWxH): 195x55x30 mm


Weight: 250g/0.55LB


Product information
Brand PINTECH
Power Source Corded Electric
Manufacturer PINTECH
Package Dimensions 11.81 x 11.81 x 2.76 inches
Item Weight 4.4 pounds
Item model number DP-60HS
Date First Available May 19, 2021
