Out of stock
  • $569.00
Price alert
Shop it at NeweggBusiness.

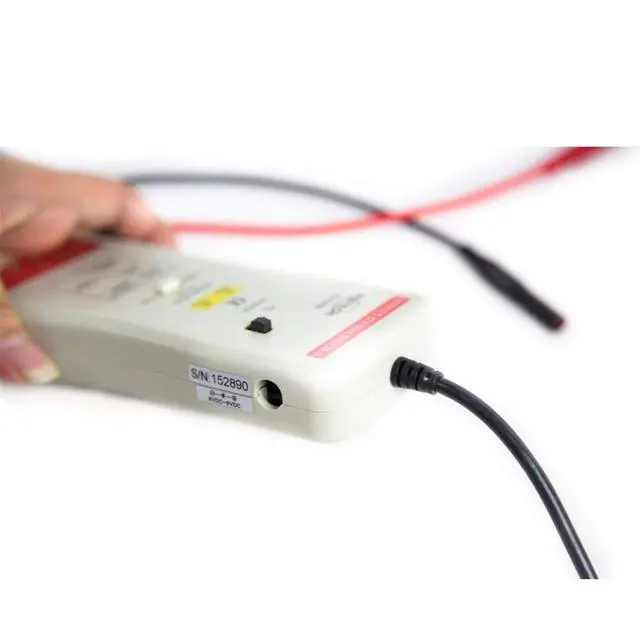

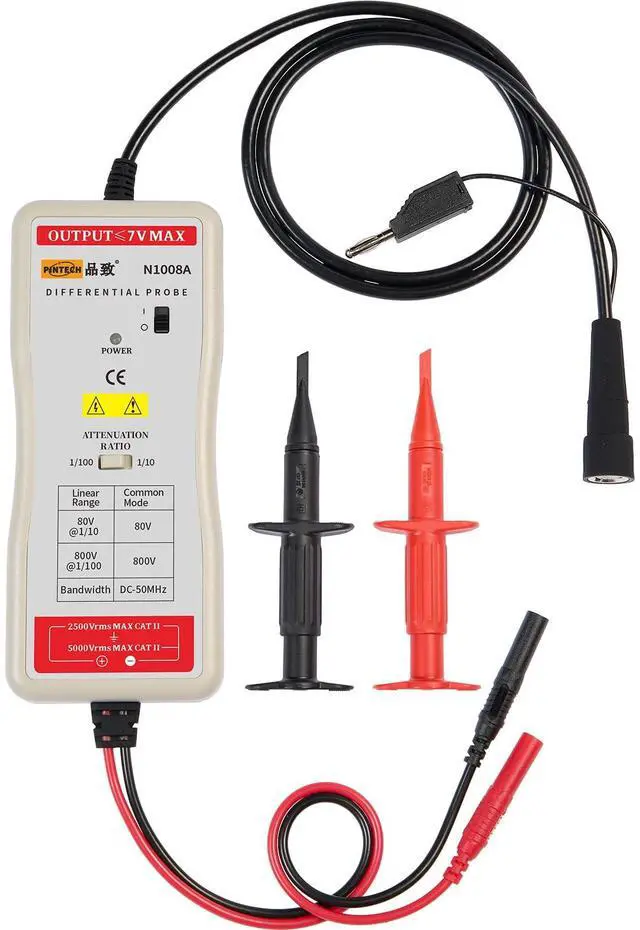

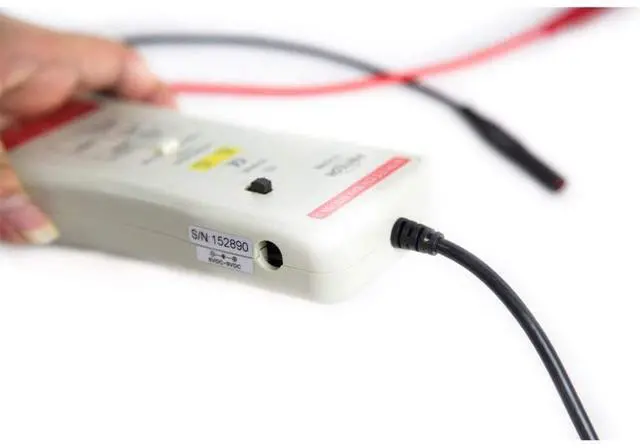

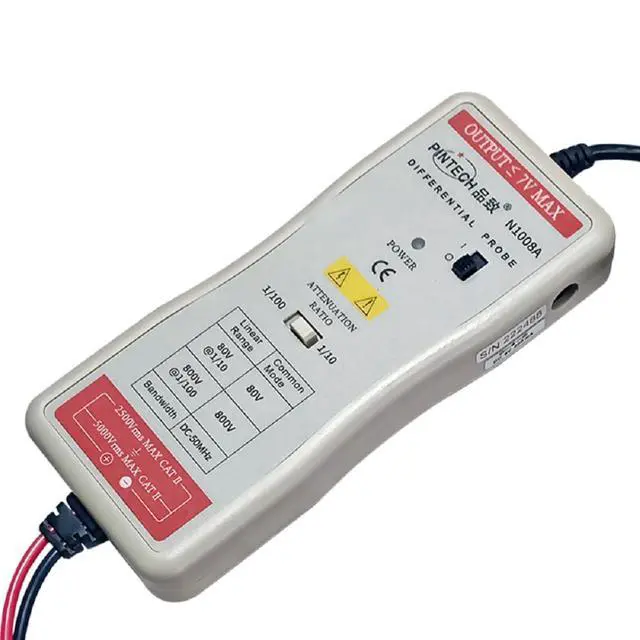

PINTECH High Voltage Differential Probe, 50MHz, 800V, 100X/10X Attenuation, with Standard BNC Interface, Oscilloscope Probe Kit Accessory N1008A

  • Maximum differential test voltage: 800Vp-p, the N1008A probe is suitable for testing low voltages.
  • Accuracy (Typical)±1%, Attenuation Ratio: 10X/100X, Rise Time: 7ns. The professional active differential probe is small in size, easy to carry.
  • Bandwidth DC-50MHz (-3dB), featured with built-in auto-zero, voltage overload protection.
  • Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
  • Package Included: N1008A differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

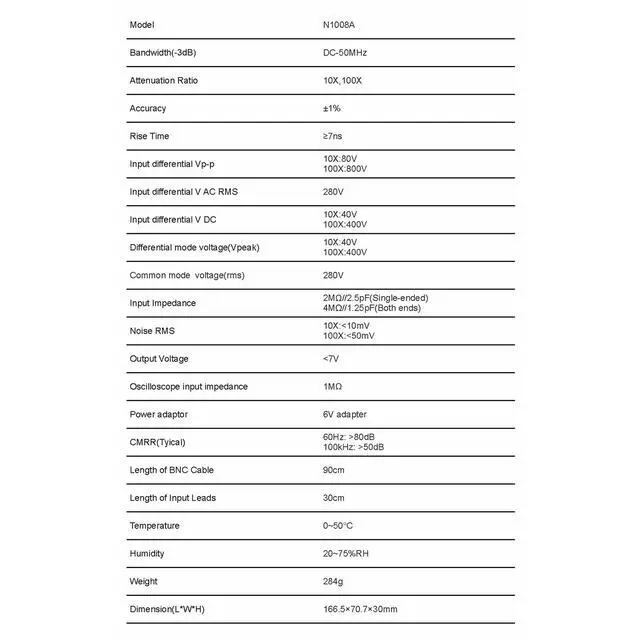

MODEL: N1008A


Bandwidth (-3dB): DC-50MHz


Output(into 50k load):7V


-Offsettypical): ±5mV


Input impedance:4M//1.25pF(between the two ends); 2M//2.5pF(Single-ended to ground)


Attenuation Rate: 10X/100X


Rising Time: 7ns


Accuracy: ±1%


CMRR: 60Hz:80dB; 100kHz:50dB


Testing Voltage(Vp-p): 10X: 80V; 100X: 800V


Input DC Voltage: 10X: 40V; 100X: 400V


Differential-mode voltage(Vp-p): 10X: 40V; 100X: 400V


Common-Mode Voltage: 280V RMS


RMS value: 280V


Noise RMS: 10X: b10mV; 100X: 50mV


Oscilloscope Input Impedance: 1M


Weight: 284g/0.63lb


Dimension(LxWxH): 166.5x70.7x30 mm


Product information

Product Dimensions 13.39 x 9.45 x 2.76 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number N1008A
Is Discontinued By Manufacturer No
Date First Available April 20, 2021
