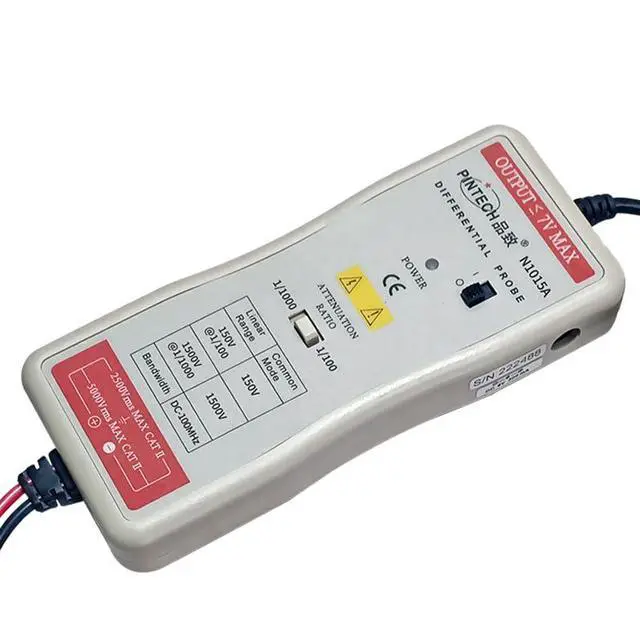

PINTECH High Voltage Differential Probe, 100MHz, 1500V, 1000X/100X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1015A

  • Maximum differential test voltage: 1500Vp-p, the N1015A probe provides ample capacity for a wide range of high voltage's applications.
  • Accuracy (Typical)±1%, Bandwidth DC-100MHz (-3dB), Attenuation Ratio: 1000X/100X, Rise Time: 3.5ns. Featured with built-in auto-zero and overload protection for voltage.
  • Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
  • Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.

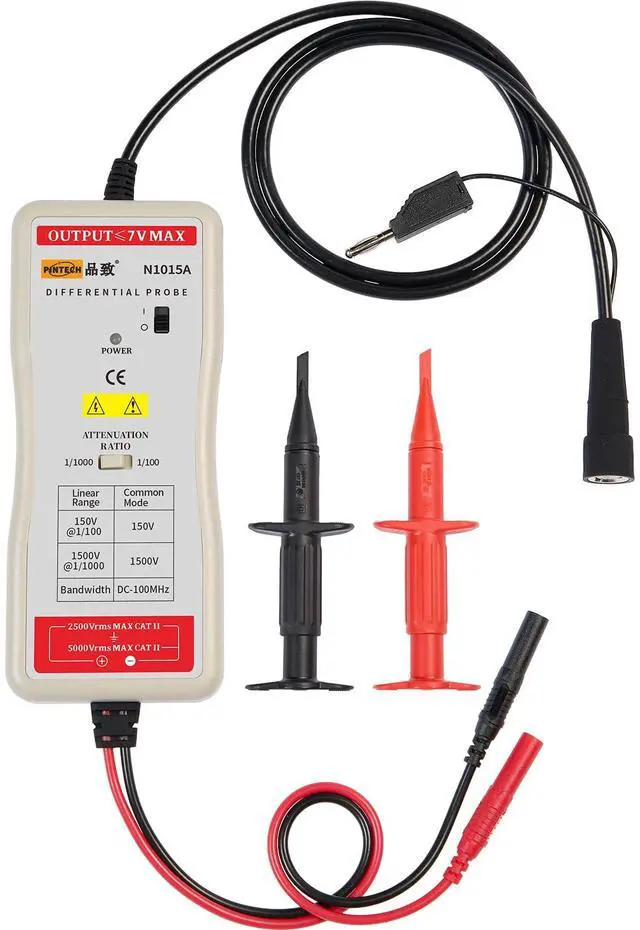

  • Package Included: N1015A differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

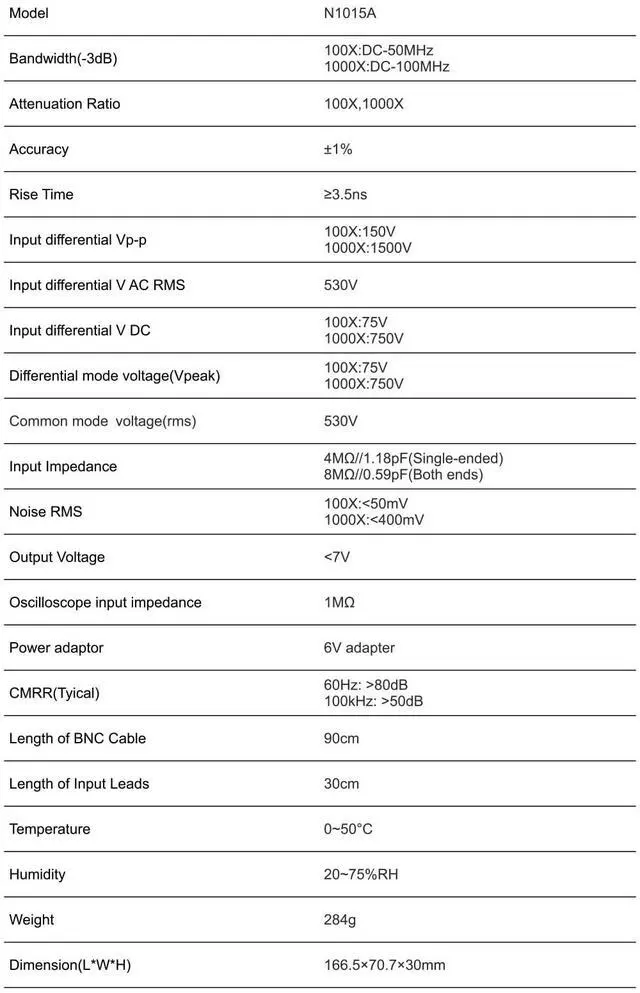

MODEL: N1015A


Bandwidth (-3dB): 100X: DC-50MHz; 1000X: DC-100MHz


Output(into 50k load):7V


Testing Voltage(Vp-p):100X: 150V; 1000X: 1500V


Input DC Voltage: 100X: 75V; 1000X: 750V


Differential-mode voltage(Vp-p):100X: 75V; 1000X: 750V


RMS Value: 530V


Common-mode voltage RMS: 530V


Noise RMS: 100X: 50mV; 1000X: 400mV


Offset(typical):±5mV


Attenuation Rate: 1000X/100X


Rising Time: 3.5ns


Accuracy: ±1%


Input Impedance: Between the two ends: 8M//0.59pF, Single-ended to ground: 4M//1.18pF


Oscilloscope Input Impedance: 1M


BNC Cabe Length: 90cm/65.43in


Weight: 284g/0.63lb


Dimension(LxWxH): 166.5x70.7x30 mm


Product information
Product Dimensions 6.65 x 2.71 x 1.02 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number N1015A
Is Discontinued By Manufacturer No
Date First Available April 20, 2021
