Volume Discounts Available
  • $740.05 ea.
  • $732.26 ea.
  • $724.47 ea.
Ships from China.
Price alert
Shop it at NeweggBusiness.

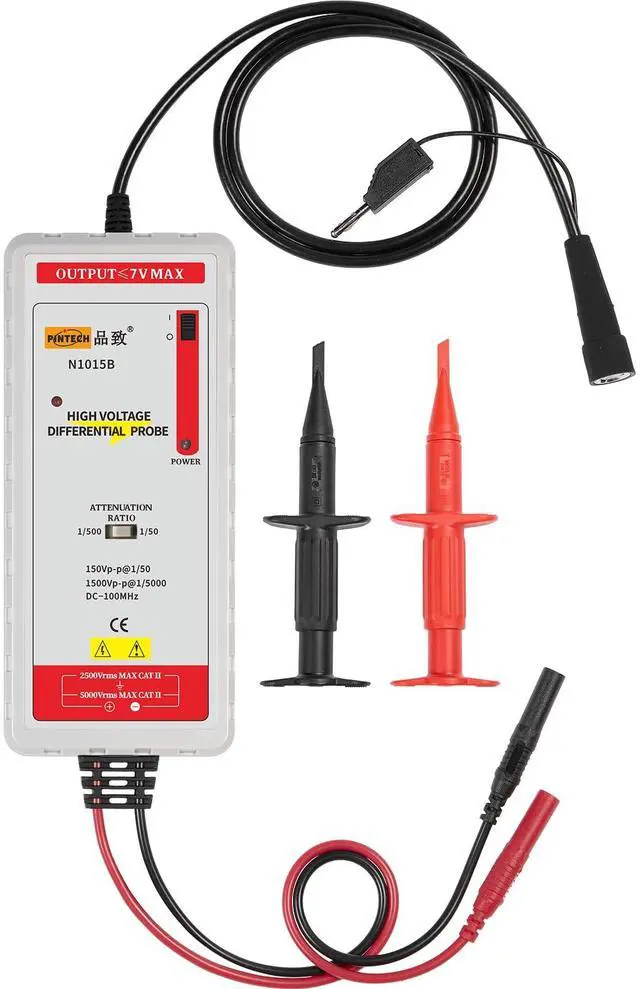

PINTECH High Voltage Differential Probe, 100MHz, 1500V, 500X/50X Attenuation, ±1% Accuracy, Oscilloscope Probe with Standard BNC Interface, N1015B

  • Maximum differential test voltage: 1500Vp-p, the N1015B probe provides ample capacity for a wide range of high voltage's applications.
  • Accuracy (Typical)±1%, Bandwidth DC-100MHz (-3dB), Attenuation Ratio: 500X/50X, Rise Time: 3.5ns. Featured with built-in auto-zero and overload protection for voltage.
  • Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
  • Widely Used: The oscilloscope probe features BNC interface, compatible with all oscilloscopes.
  • Package Included: N1015B differential probe x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

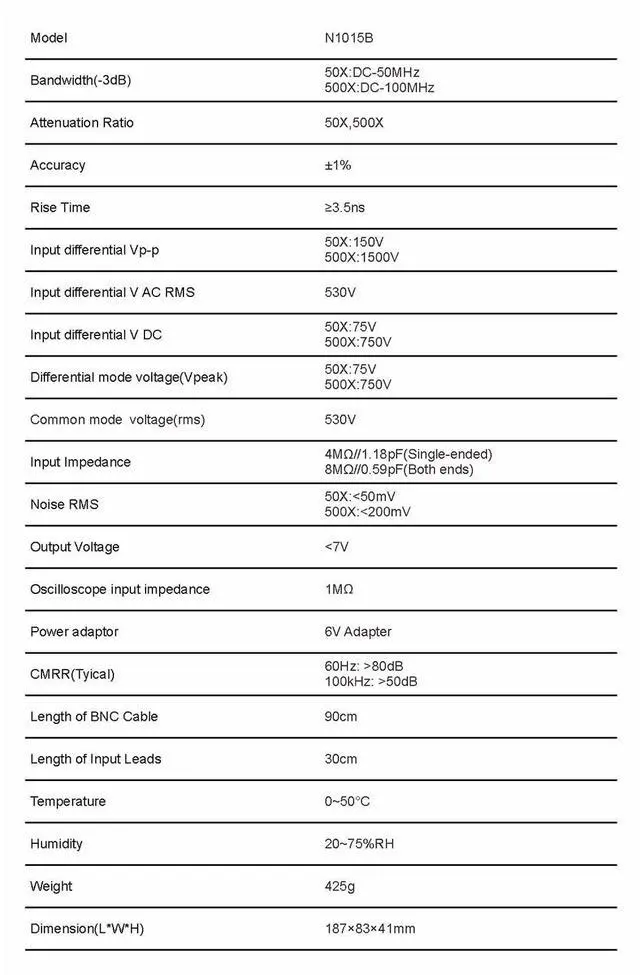

MODEL: N1015B


Bandwidth (-3dB): 50X: DC-50MHz; 500X: DC-100MHz


Output(into 50k load):7V


Testing Voltage(Vp-p):50X: 150V; 500X: 1500V


Input DC Voltage: 50X: 75V; 500X: 750V


Differential-mode voltage(Vp-p):50X: 75V; 500X: 750V


RMS Value: 530V


Common-mode voltage RMS: 530V


Noise RMS: 50X: 50mV; 500X: 200mV


Offset(typical):±5mV


Attenuation Rate: 500X/50X


Rising Time: 3.5ns


Accuracy: ±1%


Input Impedance: Between the two ends: 8M//0.59pF, Single-ended to ground: 4M//1.18pF


Oscilloscope Input Impedance: 1M


BNC Cabe Length: 90cm/65.43in


Weight: 425g/0.94lb


Dimension(LxWxH): 187x83x41 mm


Product information
Product Dimensions 7.32 x 3.3 x 1.49 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number N1015B
Is Discontinued By Manufacturer No
Date First Available April 20, 2021
