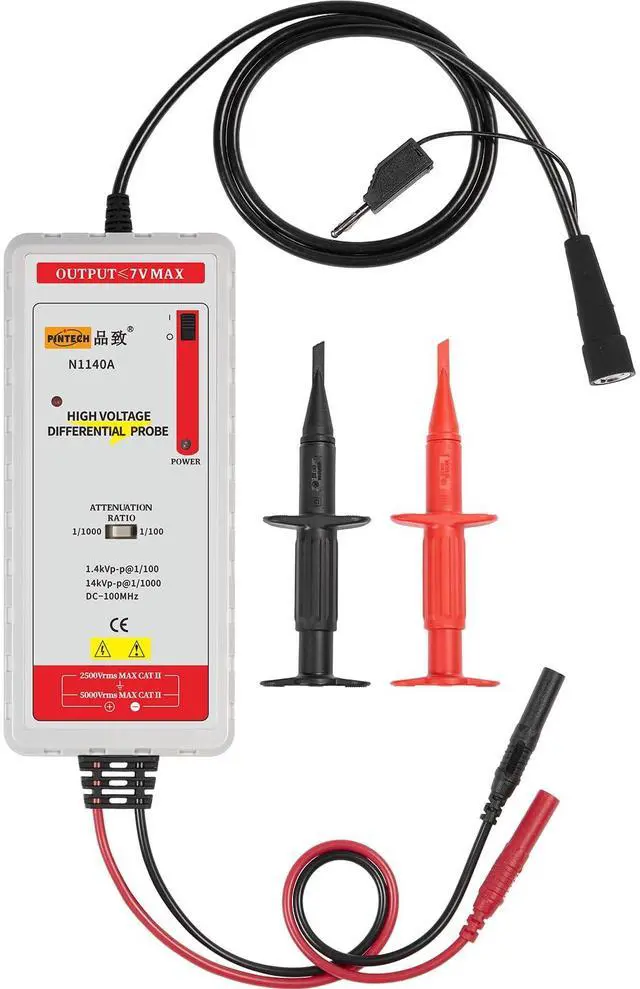

PINTECH Oscilloscope High Voltage Differential Probe Kit 100MHz, 14kV, 1000X/100X Attenuation Rate, 1% Accuracy, Oscilloscope Probe Kit N1140A

  • Rise Time: 3.5ns. This differential probe's maximum measurement voltage can be up to 14kVp-p.
  • DC-100MHz, Accuracy (Typical)±1%, Attenuation Ratio: 200X/1000X/2000X. The built-in auto zero makes the design user-friendly.
  • The oscilloscope probe features with BNC interface, compatible with all oscilloscopes.
  • Widely Used: Our active differential probes convert any two-point signal to ground signal for oscilloscopes, meters, and data acquisition equipment. The differential probe is used for testing most circuits, especially motor circuits.
  • Package Included: N1140A differential probe host unit x 1, Adapter x 1, Probe Hook x 2, Manual x 1. PINTECH offers 1 Year warranty, you can contact us if you have any questions!
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

MODEL: N1140A


Bandwidth (-3dB): DC-100MHz


Input Impedance: Between the two ends: 20M//0.5pF , Single-ended to ground: 10M//1pF//2pF


Attenuation Rate: 1000X/100X


Rising Time: 3.5ns


Output(into 50k load) 7V


Accuracy: ±0.5%(DC-50Hz~1KHz)


-Offset(typical): ±5mV


Oscilloscope Input Impedance: 1M


CMRR(typical): 60Hz:80dB100kHz:50dB


Power Supply: 6V DC/300mA mains adaptor


BNC Length: 90 cm/35.43 in


Length of Input Length: 30 cm/11.81 in


Weight: 425g/0.94lb


Dimension(LxWxH): 187x83x41 mm


Product information
Product Dimensions 7.32 x 3.3 x 1.49 inches
Item Weight 4.4 pounds
Manufacturer PINTECH
Item model number N1140A
Is Discontinued By Manufacturer No
Date First Available April 20, 2021
