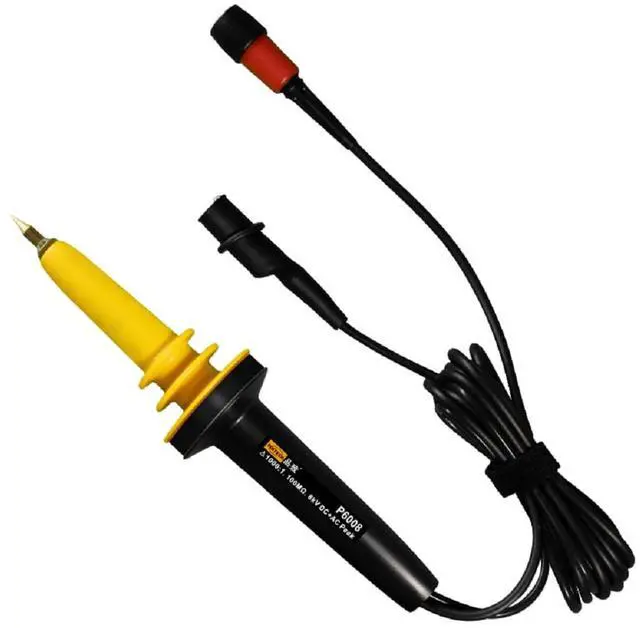

PINTECH High Voltage Probe for Oscilloscope, 8kV Max DC, 8kV Max AC, 40MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6008

  • Test Range: PINTECH P6008 high voltage probe measure current up to 8kV DC/16kV AC, for testing high voltage signals.
  • Accuracy DC±2%(DC to 5kV),±3%(5kV); AC: ±3%(1kHz/1kV),-3dB:40MHz.
  • Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.
  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
  • 1,00M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

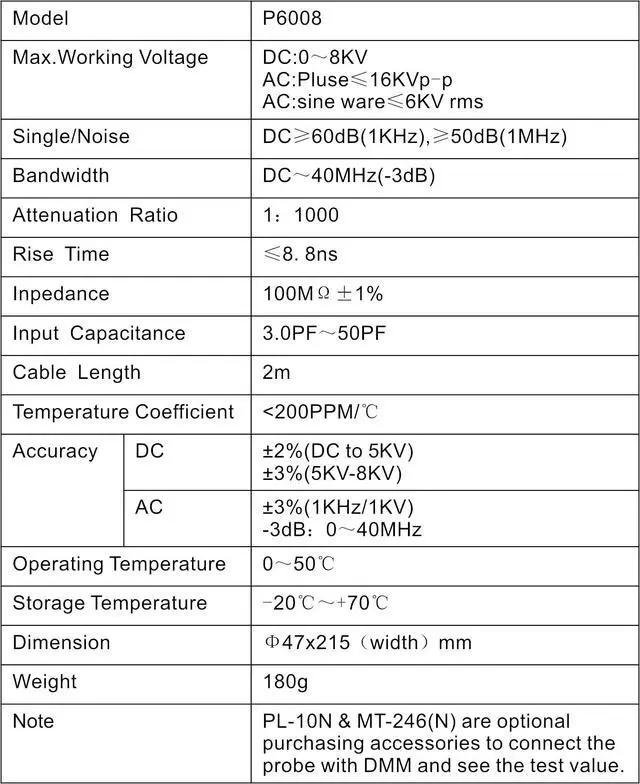

MODEL: P6008


Input Impedance: 100M


Attenuation Rate: 10001


Bandwidth: DC-40MHz(-3dB)


Test Voltage (max): DC:8kV; AC: 16kVp-p; Rms:6kV


Single/Noise: DC60dB(1kHz), 50dB(1MHz)


Rise Time: 9ns


Accuracy: DC:±2%(DC to 5kV),±3%(5kV), AC:±3%(1kHz/1kV),-3dB:40MHz


Impedance: 100M±5%


Adjustable Capacitance: 5pF~50pF


Cable Length: 2M/78.74in


Weight: 180g/0.4lb


Product information
Brand PINTECH
Power Source Corded Electric
Item dimensions L x W x H 8.46 x 1.85 x 1.85 inches
Specification Met CE
Manufacturer PINTECH
Product Dimensions 8.46 x 1.85 x 1.85 inches
Item model number P6008
Date First Available September 17, 2019
