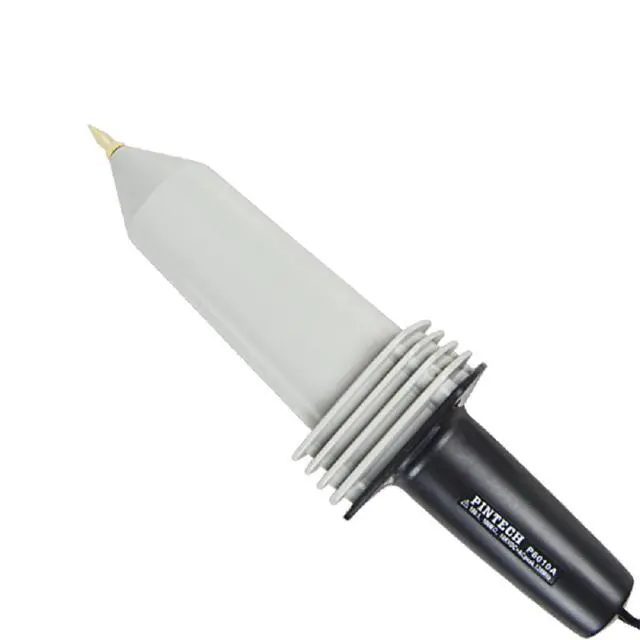

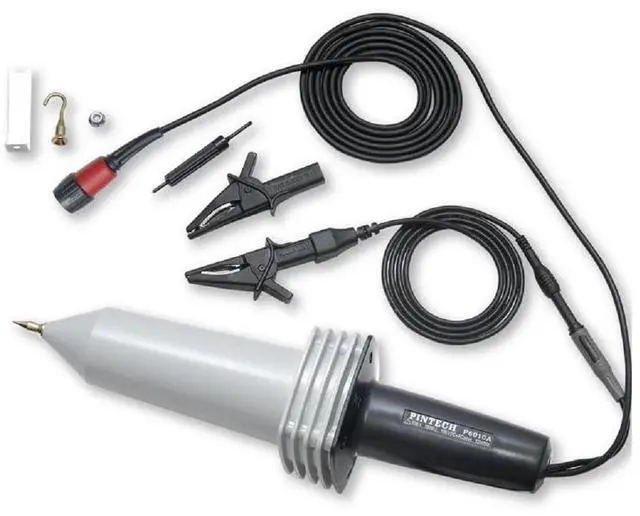

PINTECH High Voltage Probe for Oscilloscope, 10kV Max DC, 7kV Max AC, 120MHz, 100:1 Attenuation Rate, Oscope Probe with BNC Connector, P6010A

  • Test Range: PINTECH P6010A high voltage probe measure current up to 10kV DC/7kV AC, for testing high voltage signals.
  • Accuracy DC±3%; AC: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms).
  • Attenuation Rate: 100:1, the oscilloscope probe make your test safe.
  • Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
  • 100M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
+
+
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

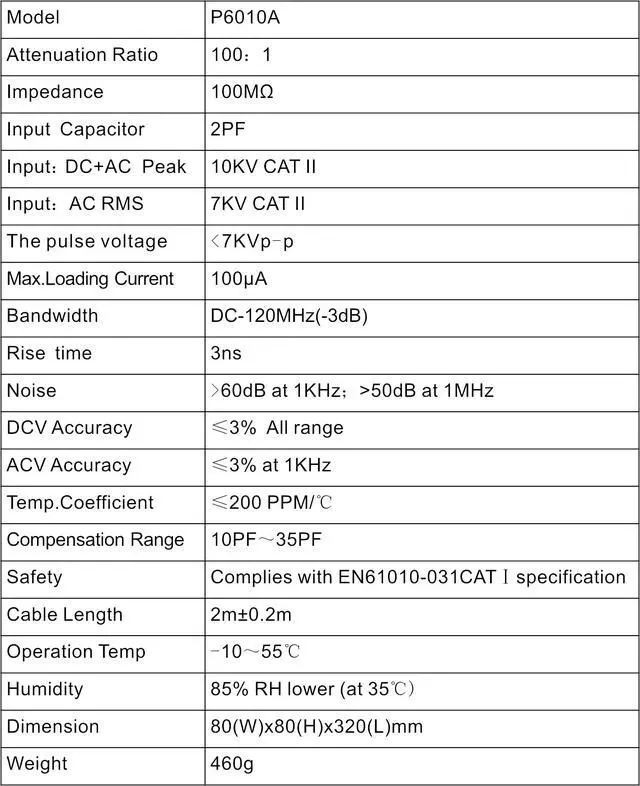

MODEL: P6010A


Input Impedance: 100M


Attenuation Rate: 1001


Bandwidth: DC-120MHz(-3dB)


Max.DC+AC peak: 10kV/30 sec
>

Max.AC RMS: 7kV/30 sec


Rise Time: 93ns


DCV Accuracy: 3%


ACV Accuracy: 3% at 60Hz(0-10kV rms), 5% at 60Hz(10-20kV rms)


Max. Loading Current: 100A


Noise: >60dB at 1kHz; >50dB at 1MHz


Size: 80 x 80 x 320 mm


Weight: 460g/1lb


Product information
Product Dimensions 12.6 x 3.15 x 3.15 inches
Manufacturer PINTECH
Item model number P6010A
Is Discontinued By Manufacturer No
Date First Available September 17, 2019
