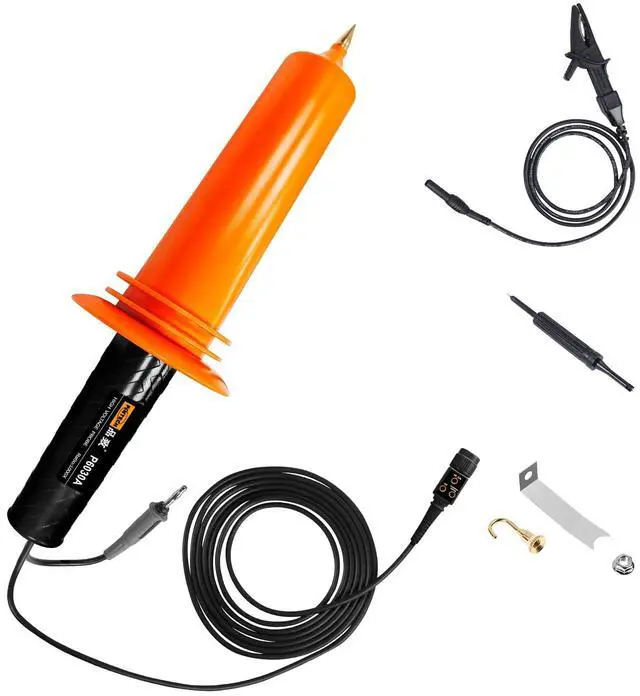

PINTECH High Voltage Probe for Oscilloscope, 30kV, 20MHz, 1000:1 Attenuation Rate, Oscope Probe with BNC Connector, P6030A
- Test Range: PINTECH P6030A high voltage probe measures up to DC 30kV/30 sec, AC RMS 20kV/30 sec, for testing high voltage signals.
- Accuracy:DC signal error3%0~30kV). AC signal error: 3% at 50Hz(0-10kVrms), 5% at 50Hz(10~20kVrms).
- Attenuation Rate: 1000:1, the oscilloscope probe make your test safe.

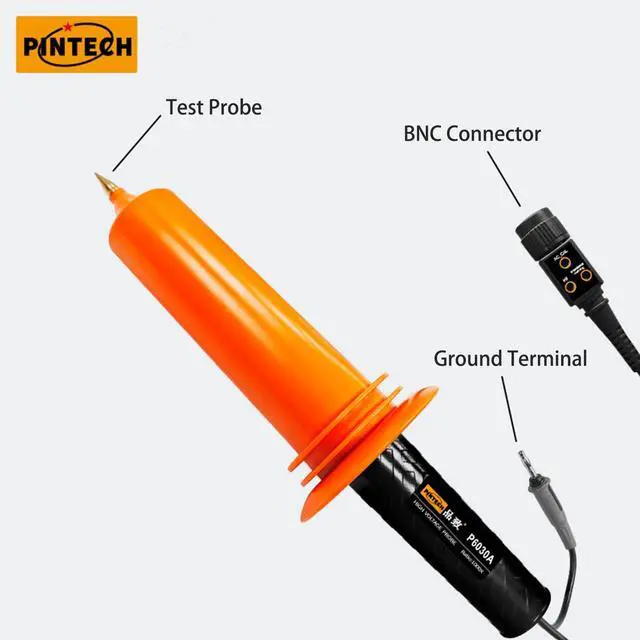

- Widely Used: The current probe features with standard BNC interface, compatible with all oscilloscopes.
- 900M input impedance. The high voltage probe is small and exquisite, easy to carry and use.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
MODEL: P6030A
Input Impedance: 900M
Input Capacitance: 2.2 pF
Attenuation Rate: 10001
Bandwidth: DC-20MHz(-3dB)
Max.DC: 30kV/30 sec
Max.AC RMS: 20kV/30 sec
Rise Time: 17.5ns
DC signal error: 3%0~30kV
AC signal error: 3% at 50Hz(0-10kVrms)5% at 50Hz(10~20kVrms)
Cable Lenght: 2m/78.74""
Size: 105 x 105 x 353 mm
Weight: 600g/1.32lb
Product information
| Brand Name | PINTECH |
| Manufacturer | PINTECH |
| Model | P6030A |
| Number of Items | 1 |
| Country Of Origin | CN |
| Included Components | Differential probe host unit x 1, Probe Hook x 2 |
| Measurement Accuracy | DC signal error3%0~30kV) |
| Merchant Shipping Group | legacy-template-id |
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by GUANGZHOU PINTECH CO LTD Return Policy
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
The PINTECH P6030A is a 30kV high-voltage oscilloscope probe with 1000:1 attenuation and DC–20MHz bandwidth, built for technicians, engineers, and lab users who need to safely measure high-voltage signals on standard BNC-equipped oscilloscopes.
Recommended For
- Technicians or lab users who need to view very high-voltage waveforms on a standard BNC oscilloscope, especially when 30 kV range matters more than high-frequency detail.
- Users troubleshooting CRT, tube, ignition, capacitor-charging, Tesla coil, or other HV projects where a conventional 10x probe is not appropriate and a dedicated high-voltage probe is expected.
- Bench users measuring high-voltage, relatively low-to-mid-frequency signals who can accept the tradeoff of a 1000:1 passive probe: much higher safe voltage range, but less sensitivity for small signals.
- Experienced electronics users who already understand oscilloscope grounding, attenuation setup, and HV safety, and want a straightforward passive probe rather than a more expensive active differential probe.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Measuring high-voltage signals with an oscilloscope — suited for bench and field HV testing up to 30 kV, provides 1000:1 attenuation and connects to most oscilloscopes via a standard BNC |
| Model Identifiers | PINTECH P6030A oscilloscope probe |
| Type And Equipment | Electronic oscilloscope probe intended for high-voltage measurement |
| Bandwidth And Frequency | DC to 20 MHz bandwidth |
| Accuracy | Reported accuracy: ?3% |
| Physical Dimensions | Dimensions 105 × 105 × 353 mm |
| Features And Accessories | Includes one high-voltage probe and one accessory kit |
| Application And Use | Designed for test and measurement applications |
