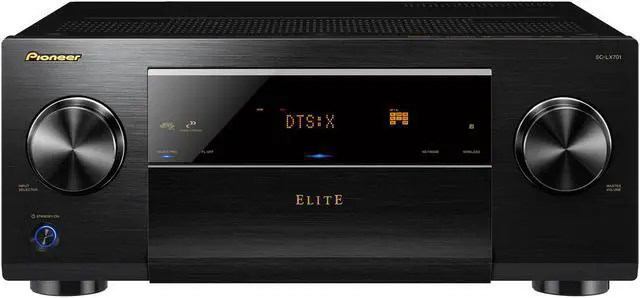

Main image of Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

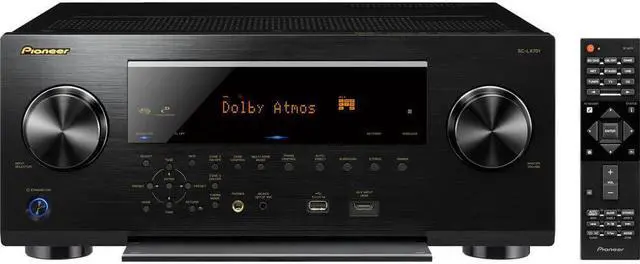

Alt view image 2 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

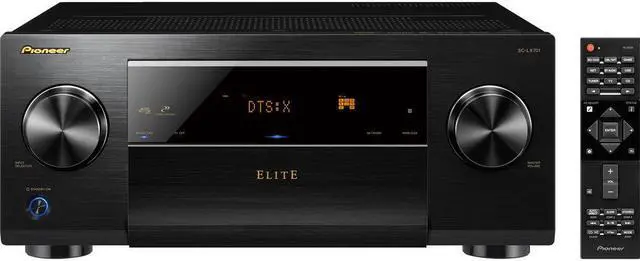

Alt view image 3 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

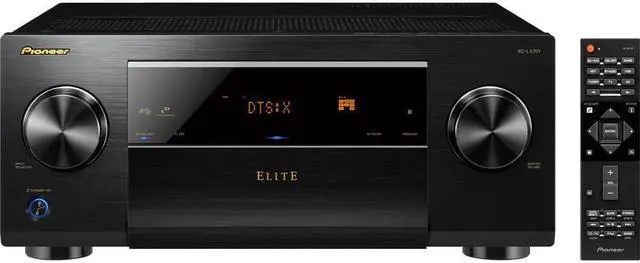

Alt view image 4 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

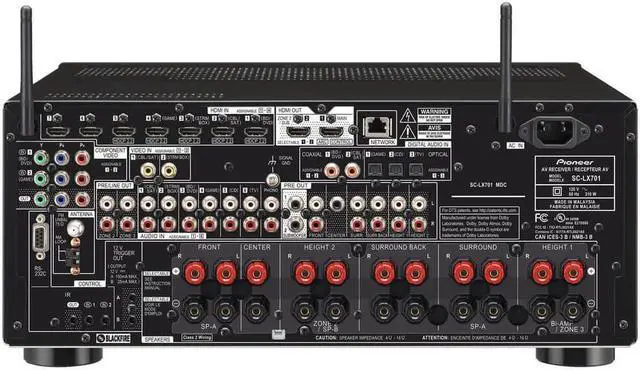

Alt view image 5 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

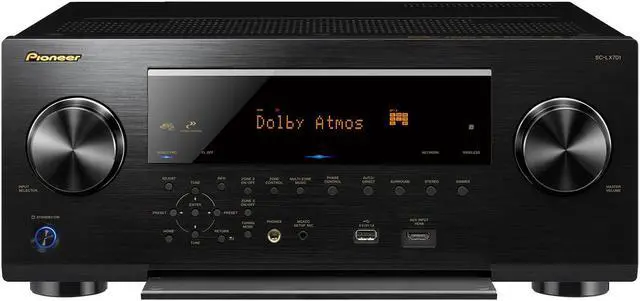

Alt view image 6 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

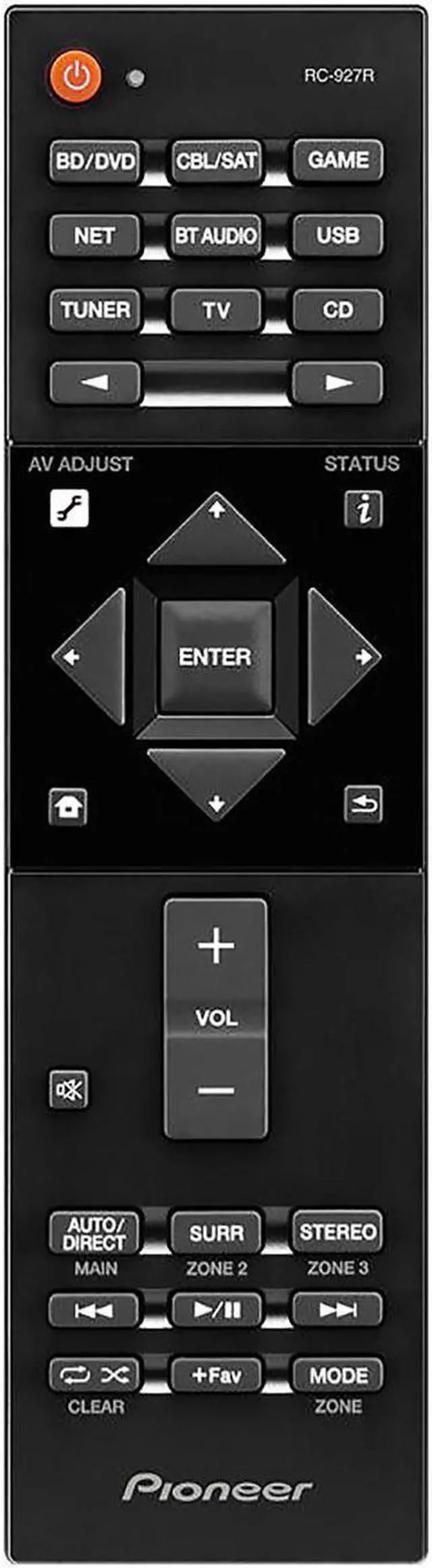

Alt view image 7 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

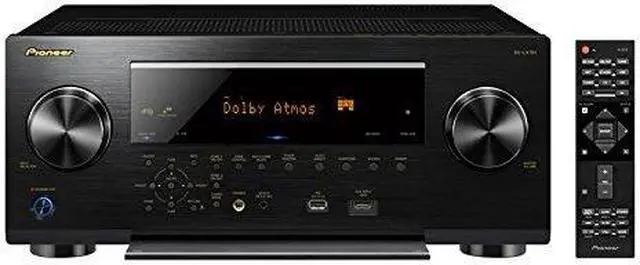

Alt view image 8 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Alt view image 9 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Alt view image 10 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Alt view image 11 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Alt view image 12 of 12 - Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Shop All Pioneer Products

Pioneer Elite SC-LX701 9.2-ch Class D3 Network AV Receiver

Be the first to review this product...

185 W/ch (6 ohms, 1 kHz, THD 0.9 %, 1ch Driven FTC)
135 W/ch (8 ohms, 20 Hz-20 kHz, THD 0.08 %, 2ch Driven FTC)
Ultra HD Pass-through with HDCP 2.2
DTS:X and Dolby Atmos

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Up to 135W per Channel at 8 Ohms MCACC Sound Optimization 4K Ultra HD Upscaling and Pass-Through HDMI with 3D and Audio Return Channel 8x HDMI-In | 2x HDMI-Out Built-In Wi-Fi and Bluetooth Apple AirPlay Connectivity Front-Panel USB Connectivity Dolby Atmos and
DTS: X Support GUI On-Screen Display

Model
Brand	Pioneer
Model	SC-LX701

Details
Type	Receivers
Channels	9.2-Channel

Processing
Power Output	Power Output: Watts per Channel (8 ohms, 1 kHz, 0.08 %, 2 ch Driven FTC): 135 W/ch Power Output: Watts per Channel (4 ohms, 1 kHz, 1 %, 2 ch Driven): 220 W/ch Power Output: (6 ohms, 1 kHz, THD 1 %, 1ch Driven FTC): 185 W/ch Power Output: Watts Multi ch Simultaneous Drive (8 ohms, 1 kHz, 1 %): 760 Watts Estimated Power Consumption/Standby with HDMI Control off: 310 W/0.15 W (standby)
Decoder	Digital Core DSP Engine Analog Devices Sharc x2+TI Aureus x1 High-Definition Copy Protection (HDCP): 2.2 Dolby Atmos Dolby TrueHD Dolby Digital Plus Dolby Surround DTS:X DTS Neural:X DTS-HD Master Audio HDMI SACD Transfer: Multi-Channel
Audio	DSD Music File: 2ch (2.8MHz / 5.6MHz / 11.2MHz) Audio Processing: 32 bit Dialog Enhancement Advanced Sound Retriever Tone Control: Multi Sound Delay (Lip Sync): 500 ms @ 48k/ 400 ms @ 96k/ 200 ms @ 192k Speaker A/B Bi-Amp
Video	4K 60p Ultra HD Passthrough 4K 60p Ultra HD Video Scaler: Yes (1080p to 4K) 3-D Ready Audio Return Channel HDMI 36-bit Deep Color x.v.Color Video Converter to HDMI Super Resolution

Radio
FM/AM Tuner	AM/FM Presets: 40

Connectivity
Input	Wi-Fi Built-In: Yes (5GHz/2.4GHz) Bluetooth Built-In 2 x Composite A/V Input (Assignable) 7 x Analog Audio Input Phono Input Front A/V Inputs: USB & HDMI
Output	Pre-Amp Outputs: 11.2ch + Zone 2/ Zone 3 Preout
HDMI	8 In / 2 Out
Component Video	2 In
Digital Optical Audio	3 In
Digital Coaxial Audio	2 In
Headphone Jack	Yes
USB Port	USB Memory Input
Network Ready	Yes
Wireless Connectivity	Airplay

Features
Features	HANDHELD AND INTERNET Made for iPhone and iPod: AirPlay only iOS/Android Remote Control APP: Pioneer Control App Internet Radio: TuneIn Radio Pandora Internet Radio Streaming Audio From PC/Network Music Playback via USB Network: MP3, WMA, AAC, Apple Lossless, WAV, FLAC, AIFF, DSD Chromecast built-in: Yes (with future firmware update) Hi-Res Audio: Apple Lossless, WAV, FLAC, and AIFF for 192kHz/24bit, 11.2MHz/5.6MHz/2.8MHz DSD Playback (via USB or wired network), Dolby TrueHD Playback (USB only) TIDAL Music Streaming Service Ready: Yes (with future firmware update) SOUNDFIELD CALIBRATION MCACC: Pro MCACC Memory: 3 Phase Control Auto Phase Control Plus Full Band Phase Control Standing Wave Control EQ Bands: 9-Band Symmetric EQ Distance Adjustment: 0.5 feet Polarity Check Auto Subwoofer Crossover LISTENING MODES Auto Surround Stream Direct: Direct / Pure Direct Advanced Surround: 12 Front Stage Surround Advance INSTALLATION Home Menu: Icon-based Graphical User Interface (GUI) Multi-Room and Source Output: Powered ZONE 2 Audio/ZONE 3 Zone 2 Sources: All Audio Sources Zone 3 Sources: All Audio Sources 12 Volt Trigger (Assignable): A.B RS-232C IR Serial Remote In/Out: 2 In / 1 Out Network Firmware Update IP Control for CI Versatile Speaker Configuration: SURROUND BACK/HEIGHT 1/HEIGHT 2/SPEAKER B/BI-AMP/ZONE 2/ZONE 3 FL Dimmer Function Rename Remote: Pioneer Control App Sleep Timer Detachable Power Cord CONSTRUCTION Front Panel: Brushed Transformer Stabilizer Advanced Direct Construction Speaker Terminals: 11 Large

Dimensions & Weight
Dimensions	7.31 x 7.13" x 17.33" (H x W x D)
Weight	33.10 lbs.

Additional Information
First Listed on Newegg	August 16, 2018

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
